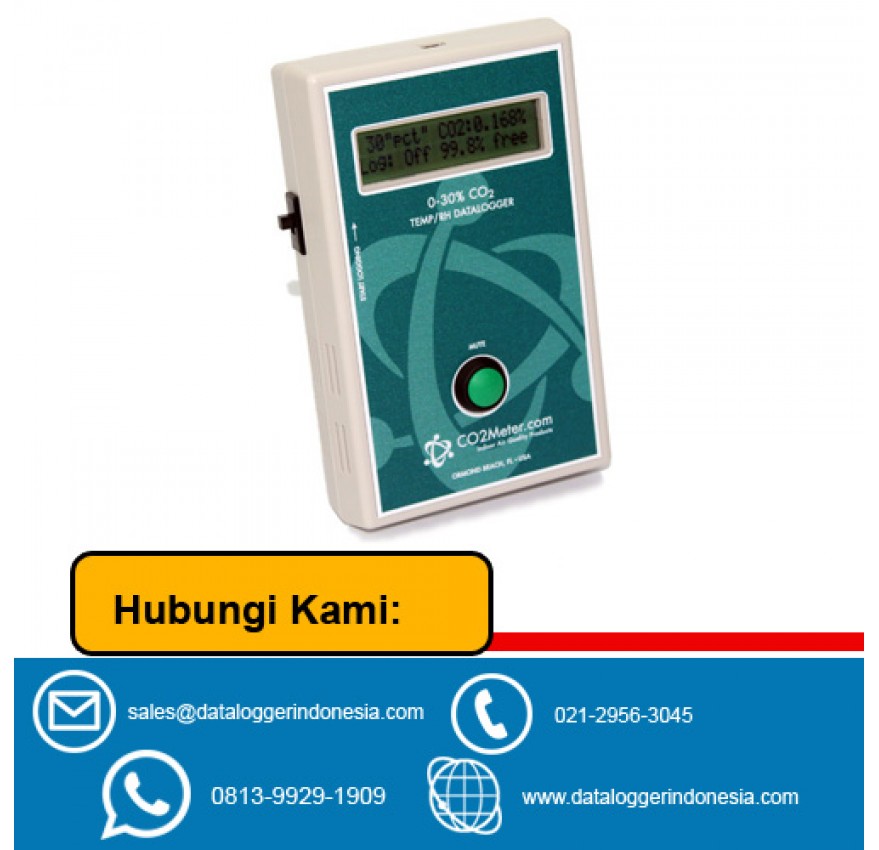

30% CO2 + RH/T Data Logger with Display Alarm

30% CO2 + RH/T Data Logger with Display Alarm

Inquiry Catalog



This Portable Data Logger is designed to measure carbon dioxide, temperature, and relative humidity. It can “wake up”, take readings, stores them in memory, and go back to sleep.

The logger is battery operated, and is designed to take up to 15,000 data samples before the internal memory is full. In addition, the sensor can record CO2 levels up to 30% (300,000ppm).

Note that though the sensor inside is designed to remotely log CO2, RH and temperature into log files for downloading at a later time, the addition of the LCD back-lit display allows for real-time data acquisition. The LCD can also be programmed with different alarm levels (Red, Yellow, Green).


CO2 Measurement: non-dispersive infrared (NDIR)
Measurement Range: 0 – 300,000 ppm
Accuracy: ± 0.2% vol CO2 ± 3% of measured value
Sampling Method: diffusion
Data logging: 30 seconds to 18 hours sample interval
Memory: 15,000 log entries maximum, includes time stamp, CO2, Temp, %RH
Sensor Life Expectancy: > 10 years
Maintenance Interval: No maintenance required
Size: 5.75×5.6×1.3in (146×91×33mm)
LCD displays CO2, Temp. and %RH

4 AA batteries (not included)
International Wall Power Supply

Communications Cable
USB A to USB Mini-B (5-pin) cable
One cable can be used for multiple loggers

System Requirements
Windows XP SP2 or newer
Microsoft .Net 3.5 Run time Libraries

1 Year
