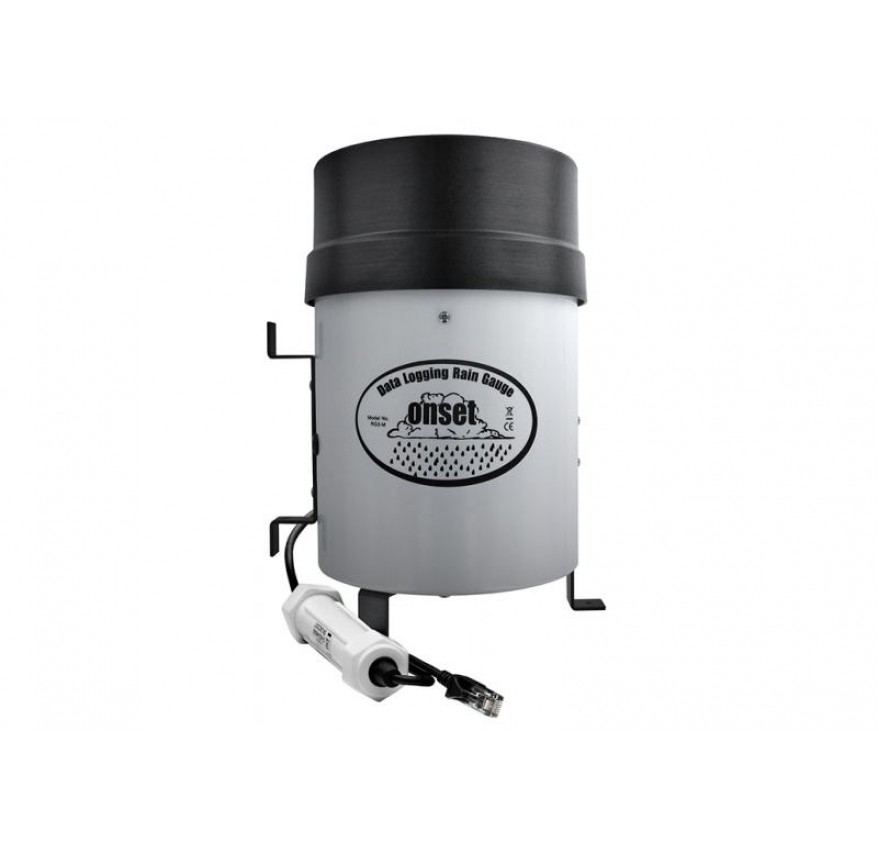

S-RGA-M002 0.01

S-RGA-M002 0.01


Harga
Rp. 15.358.240

Order

Description

Rain Sensor ini mengukur curah hujan dengan intensitas hingga lima inci per jam dengan resolusi 0,01 inci, dan akurasi 1% untuk tingkat curah hujan sampai 1 "/ jam. Mekanisme tipping bucket dipasang pada poros stainless steel dengan bantalan kuningan. Model ini termasuk kabel 2m.


Feature

  • Measures rainfall rates up to five inches per hour
  • Resolution of 0.01 inch
  • maximum of 4000 tips per interval
  • 2m cable

Spesification

Measurement range: 0–10 cm or 0–5 in. per hour; maximum 4000 tips per interval
Operating range: 0° to 50°C (32° to 122°F); survival -40° to 75°C (-40° to +167°)
Mechanism: Tipping bucket, stainless steel shaft with brass bearings
Resolution: 0.2 mm (S-RGB) and 0.01 inch (S-RGA) models
Calibration: Requires annual calibration; can be field calibrated by user or returned to factory
Calibration accuracy: ±1.0% at up to 20 mm or 1" per hour
Housing: Aluminum housing and collector
Dimensions: 22.8 cm height x 15.4 cm diameter (9" height x 6" diameter), 154 mm receiving orifice (6.06")
Approximate weight: 1 Kg (2 lbs)
Cable lengths: 2 meter, 6.5 feet
