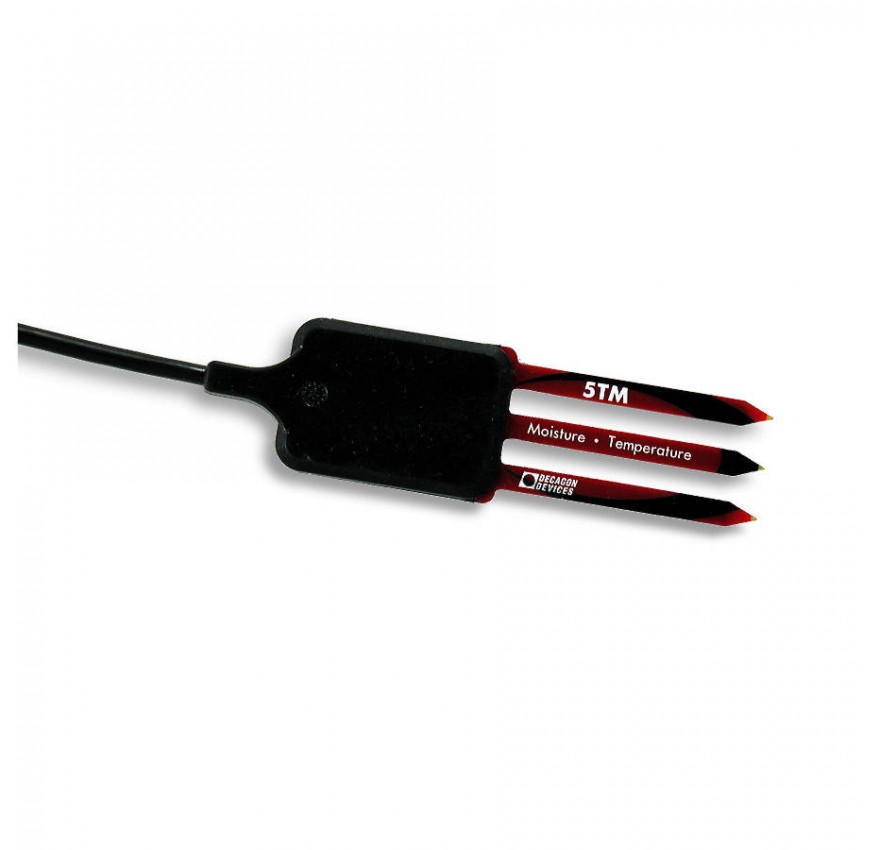

Soil Moisture, Temperature & Conductivity Sensor

Soil Moisture, Temperature & Conductivity Sensor



Order

Description

The 5TM is designed to measure the volumetric water content and temperature of soil and growing media. Using an oscillator running at 70 MHz, it measures the dielectric permittivity of soil to determine the volumetric water content. A thermistor in thermal contact with the sensor prongs provides the soil temperature.


Feature

  • Temperature Integrated with Soil Moisture
  • Engineered for Accuracy
  • Easy Installation
  • Plug and Read

Spesification

  • ACCURACY
Apparent Dielectric Permittivity (εa): ± 1 εa from 1 – 40 (soil range); ± 15% from 40 – 80
  Soil Volumetric Water Content (VWC):
  Using Topp equation: ± 0.03 m3/m3 (± 3% VWC) typical in mineral soils that have solution electircal conductivity < 10 dS/m
  Using medium specific calibration, ± 0.02 m3/m3 (± 2% VWC) in any porous medium
  Temperature: ± 1°C
  • RESOLUTION
εa: 0.1 εa from 1-20, < 0.75 εa from 20-80
  VWC: 0.0008 m3/m3 (0.08% VWC) from 0 to 50% VWC
  Temperature: 0.1°C
  • RANGE
εa: 1 (air) to 80 (water)
  Temperature: -40 – 50°C
  • DIMENSIONS
10 cm x 3.2 cm x 0.7cm
  • CABLE LENGTH
5 m standard, custom cable lengths available upon request
  • MEASUREMENT TIME
150 ms (milliseconds)
  • POWER
3.6 – 15 VDC, 0.3 mA quiescent, 10 mA during 150 ms measurement
  • OUTPUT
RS232 or SDI-12
  • CONNECTOR TYPES
3.5mm “stereo” plug, or stripped and tinned lead wires (3)
  • DATA LOGGER COMPATIBILITY (NOT EXCLUSIVE)
Decagon: Em50 series loggers, ProCheck Campbell Scientific: Any logger with serial I/O (CR10X, CR850, CR1000, CR3000, etc.) Other: Any data acquisition system capable of 3.6-15V excitation and serial or SDI-12 communication
  • WARRANTY
One year, parts and labor
