Description

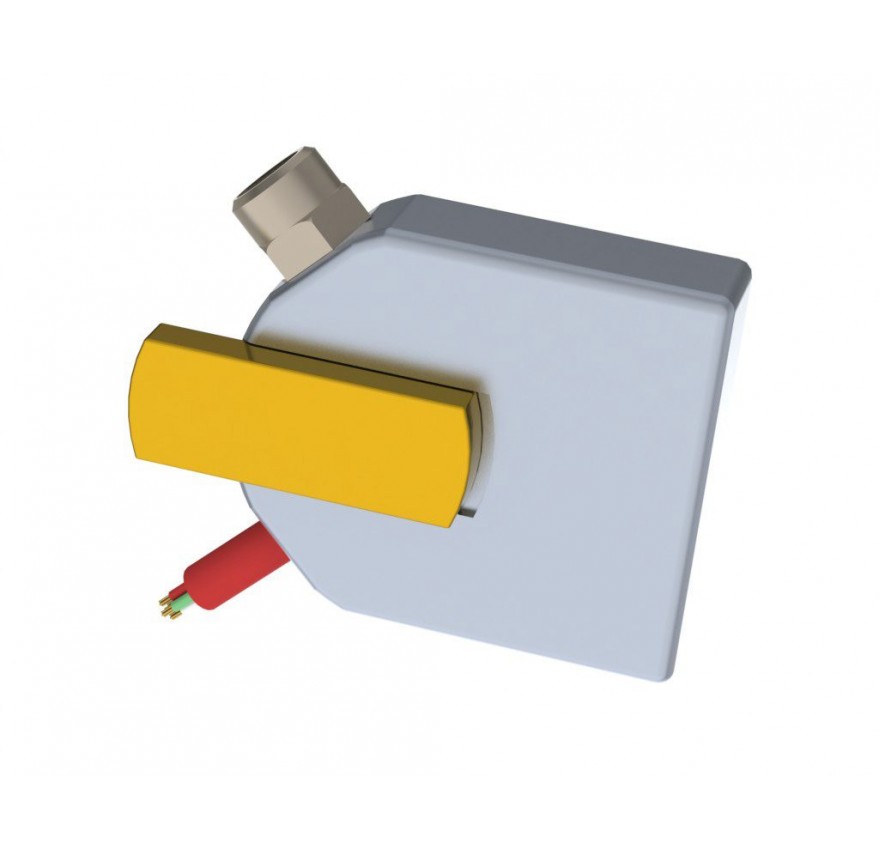

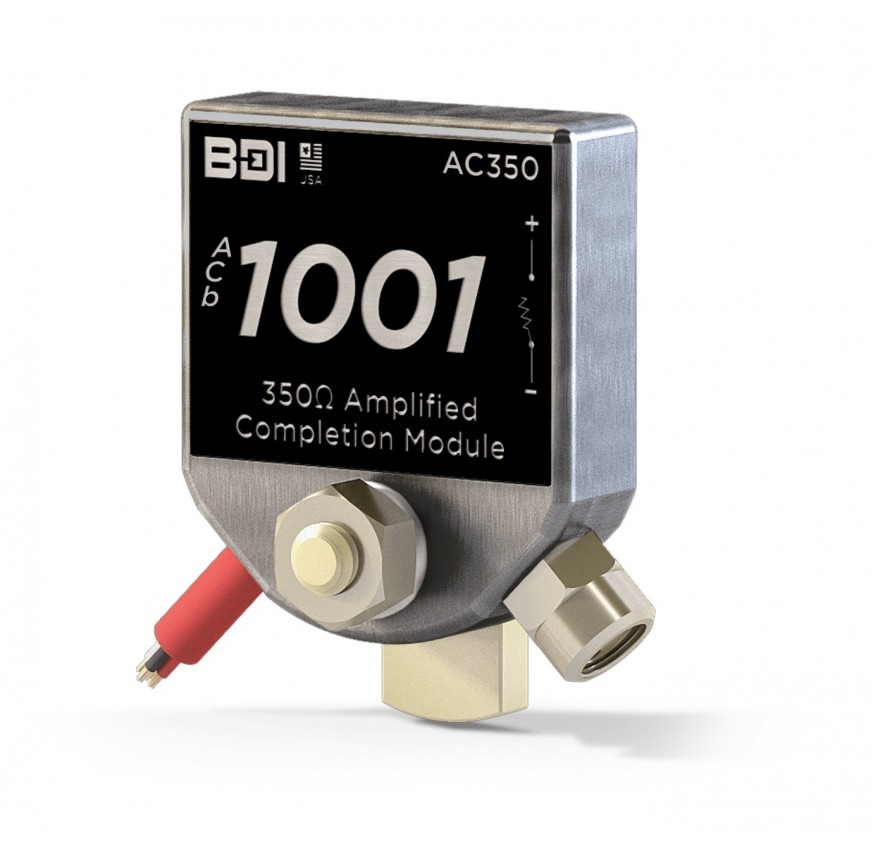

Our AC350 Amplified Completion Modules are designed to allow for rugged input connection of your weldable foil strain gages through an M8 connector. Each completion module comes with a custom length cable and integrated instrumentation cable output. Available in both 120? and 350? configurations and 100 times amplified output, these rugged, re-usable amplified completion modules significantly reduce field installation time and provide an improved signal to noise ratio.
Feature
- Completely reusable
- Designed to exceed IP67
- Minimizes lead wire effects
- Rugged M8 mating connector
- Pre-wired leads

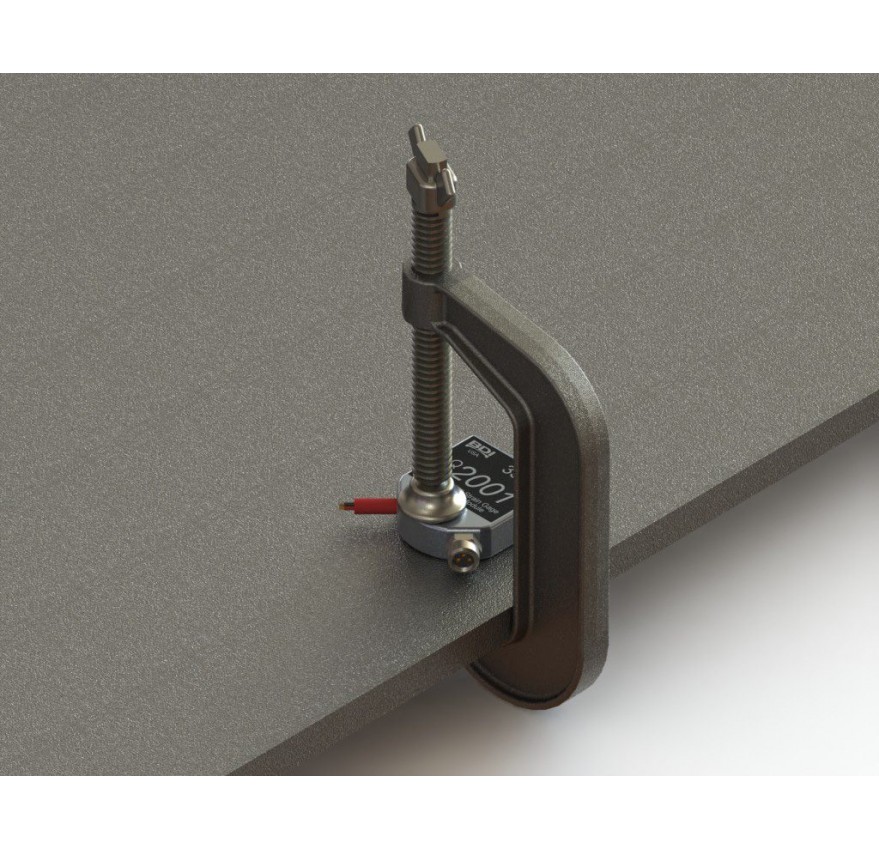

- Various mounting options available
- Industrial cable, custom lengths
- Simple to use!
- Integrated thermistor
APPLICATIONS
- Complete the Wheatstone bridge circuit near the strain gage installation location
- Quarter Bridge Type I and Type II
- Half-Bridge Type I and Type II

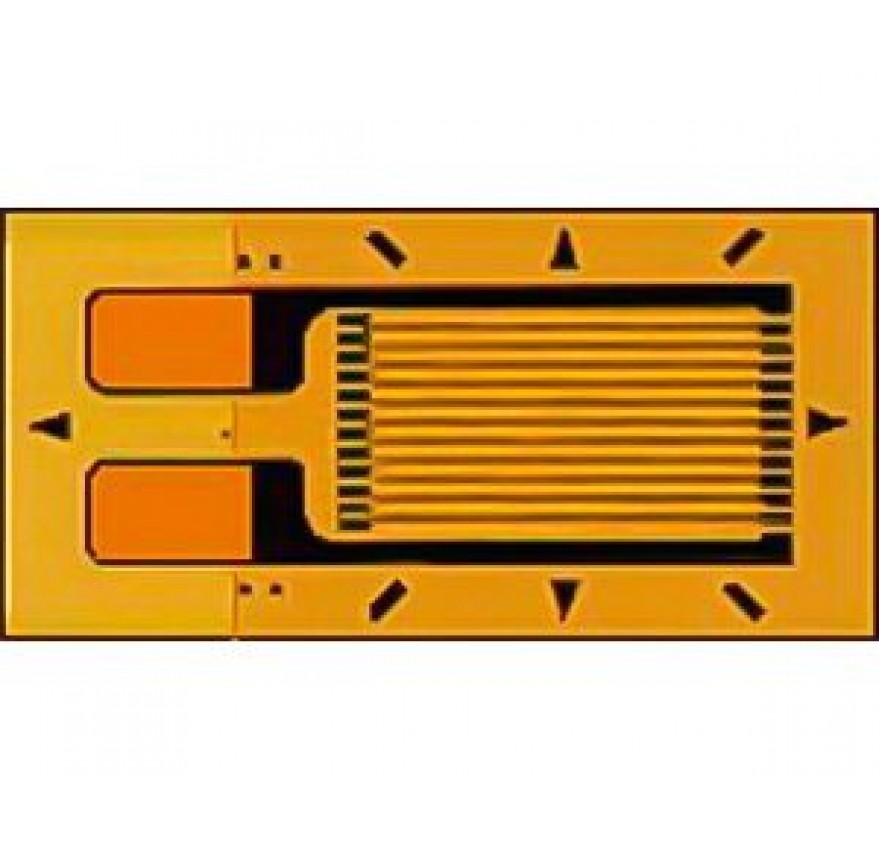

- Can be used on all types of 120Ω and 350Ω strain gages
DIMENSIONS
Spesification
|
MODEL |
AC120 | AC350 |
|
RESISTANCE |
120? | 350? |
|
RESISTANCE ACCURACY |
< 0.17% | < 0.17% |
| FOIL GAGE TYPE SUPPORTED |
3-Wire hookup Quarter Bridge Type I 3-Wire hookup Quarter Bridge Type II 3- or 4-wire hookup Half Bridge Type I 3- or 4-wire hookup Half Bridge Type II |
|
|
EXCITATION VOLTAGE1 |
+2.0 to +5.0 Vdc | |
|
OUTPUT |
100X gain on mV level signal, ratiometric to Excitation Voltage | |
|
HOUSING |
Machined 6061-Aluminum Alloy | |
|
CORROSION RESISTANCE |
Hard Anodized Clear (MIL-A-8625 Type III) | |
|
ENVIRONMENTAL |
Designed to exceed IP67 | |
|
OPERATING TEMPURATURE2 |
-58° to +176 °F (-50° to +80 °C) | |
1 AC120 operates on +2.0 Vdc excitation only.
2 Temperature limit based on instrumentation cable operating temperatures, call BDI for wide temperature range cable options.
