Description

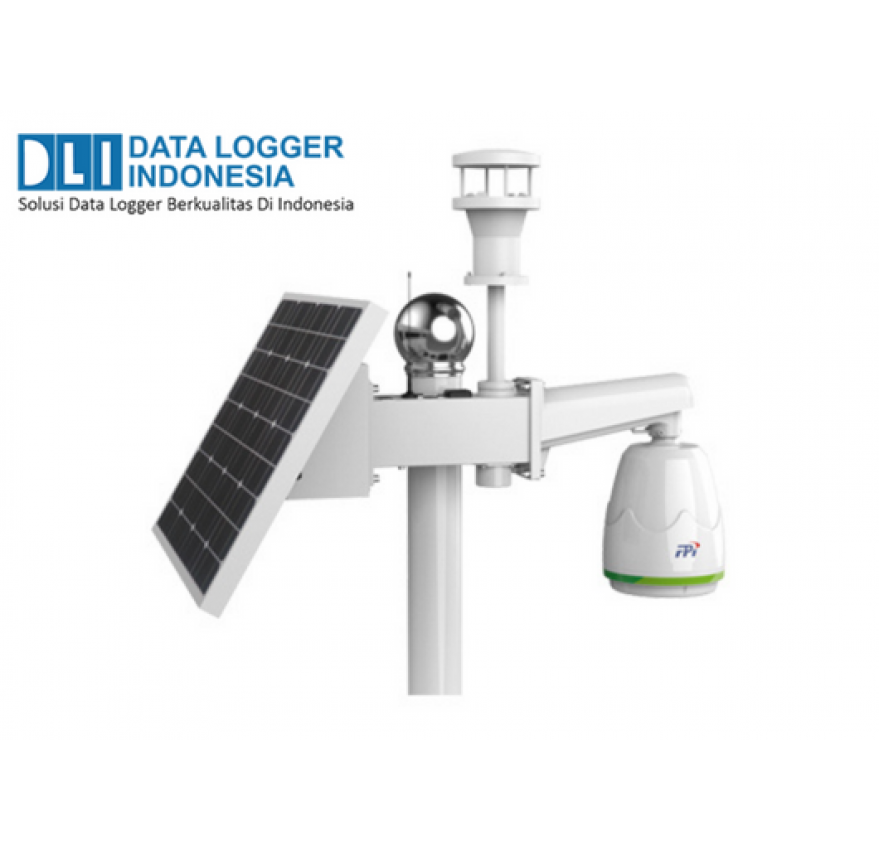

Air Quality Monitoring System(SO2, NO, NOX, CO, O3, PM2.5, PM10)
Micro AQMS gives a macro indication in terms of trend analysis against stationary AQI analysis. The micro AQMS is to find out the pattern of spatial pollution distribution during a certain period. These data support AQI results at the standard station, and most importantly, It gives a macro idea on municipal management.
Feature
- Customization on parameters according to customer requirement;
- Simultaneous monitoring 10 parameters including PM10 and PM2.5;
- 4G module enables remote control;
- No consumables, long maintenance interval for minimal maintenance.
- PreCalTM (Pre-calibration), FieldCalTM (Synchronize calibration) and OnTheFlyTM (Portable calibration) with internal temperature compensation to perform highest data validity.
Spesification
| Parameter | SO2, NO2, CO, O3, PM2.5, PM10, Temp,RH,Wind | |
| PM Module | Principle | Light Scattering |
| Range | 0~10mg/m3 | |
| Accuracy | +_10% | |
| Gas Module | Principle | Electro-Chemical |
| Range | 0~500ppb; CO:0~50ppm | |
| Time Reaolution | 1min | |
| Detectable Limite | 5ppb; CO:0.04ppm | |
| Other | Operating Temp | -20~60? |
| Communication | 2G/3G/4G and GPS positioning | |
