Description

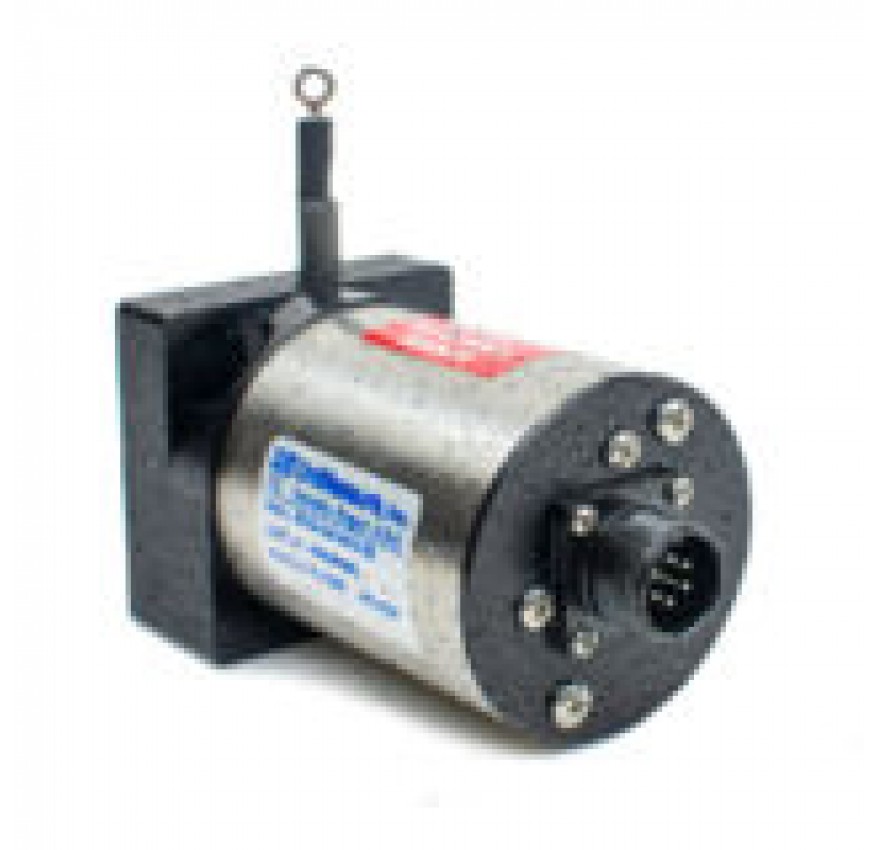

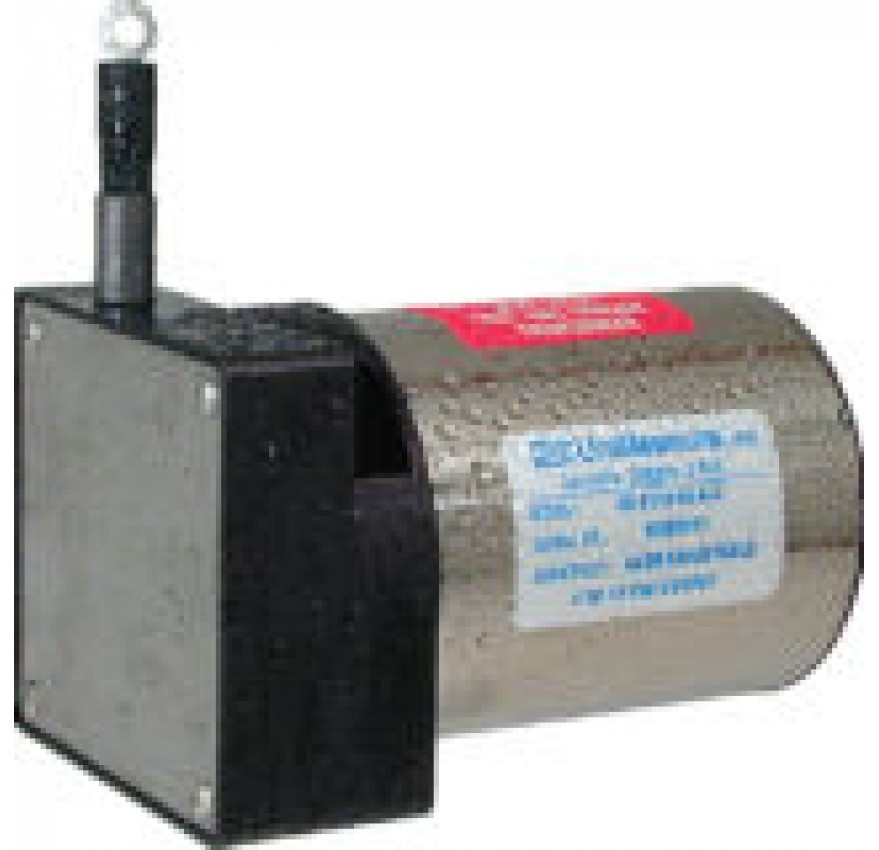

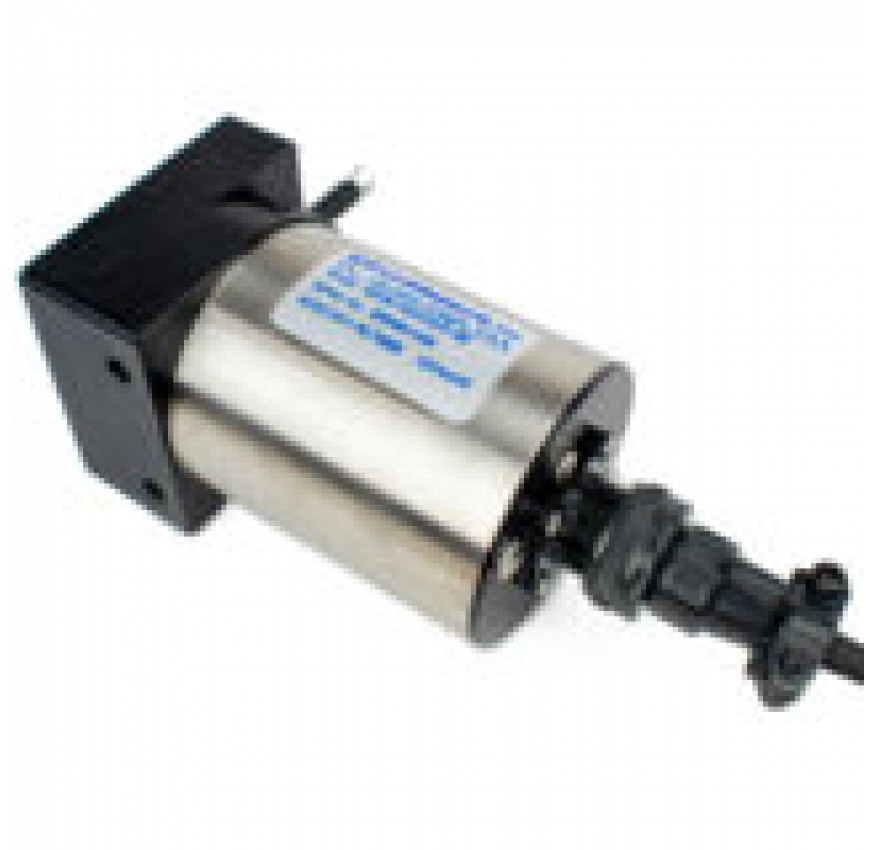

The Cable Potentiometer (CPOT) is designed for measuring large displacements on structures with moving components such as lift gates or moveable bridge spans.
Feature
- Suitable for large displacements
- Spring-loaded cable spool
- Infinite resolution (depends on user’s A/D)
- Easy installation
- Mount in any orientation
- Stainless steel housing resists corrosion
- IP65
APPLICATIONS
- Liftgates on river control structures
- Moveable bridges for highways and railroads
- Industrial and mechanical equipment
- Expansion joint position
Spesification
|
Type |
Cable Potentiometer |
|
Ranges |
1.0 to 80 in |
|
Excitation |
+1 to +30V AC or DC |
|
Output |
0 to (50% Excitation Voltage) |
|
Linearity |
±0.3% to ±0.15% |
|
Temperature Range |
-40° to +203 °F (-40° to +95 °C) |
|
Size |
2.9 in x 4.5 in x 4.75 in (74mm x 115mm x 121mm) |
|
Weatherproof |
IP68 |
