Description

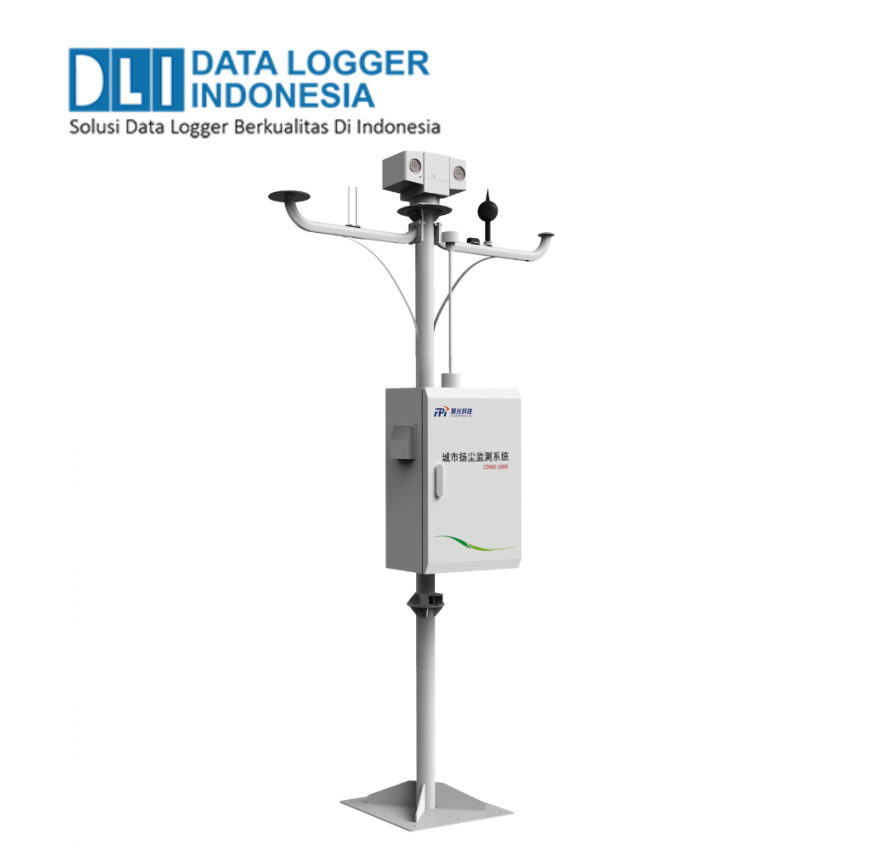

CDMS-1000 is designed with light scattering technology for continuous real-time measurement of particulate concentration along with noise and meteorological parameters. This combination consists of a particle analyzer, camera, sound level meter, and GPRS module.
Dust from construction, demolition, and traffic can cause a significant impact on local air quality, posing health problems. Hence, dust mitigation monitoring is required at most construction sites. CDMS-1000 is designed with light scattering technology for continuous real-time measurement of particulate concentration along with noise and meteorological parameters. This combination consists of a particle analyzer, camera, sound level meter, and GPRS module.
Feature
- Measurement of TSP, PM10 & PM2.5, noise, meteorological parameters online;
- Particulate module and sound level meter auto-calibration;
- System with GPRS and wireless function for remote control;
- Powerful software for auto video, camera, report, and early warning;
- Low maintenance and operation requirement;
Spesification
| Particulate Monitor | Measurement | TSP,PM2.5,PM10 |
| Measurement Range | 0~100mg/m3 | |
| Principle | Light-scattered(self-calibration) | |
| Accuracy | ?±10% | |
| Sampling Flow Deviation | ?±5% | |
| Sound Level Meter | Measurement Range | 30~130dB?A? |
| Frequency Range | 20Hz~12.5kHZ | |
| Frequency Weighting | A,C,Z | |
| Meteorological Parameter | Temperature | -50~80? |
| Humidity | 0~100%RH | |
| Wind Speed | 0~70m/s | |
| Wind Direction | 0-359° | |
| Video | Pixel | 1.3 million pixel |
| Focal Length | 4.7~94mm?20x optical zoom | |
| Rotate Range | 0~360°continuous rotation | |
| Others | Communication | 2G/3G/4G/LAN/WIFI |
| Power |
220V/50Hz/2A single phase electricity |
|
| Environmental Temperature | -30~50? |
