Description

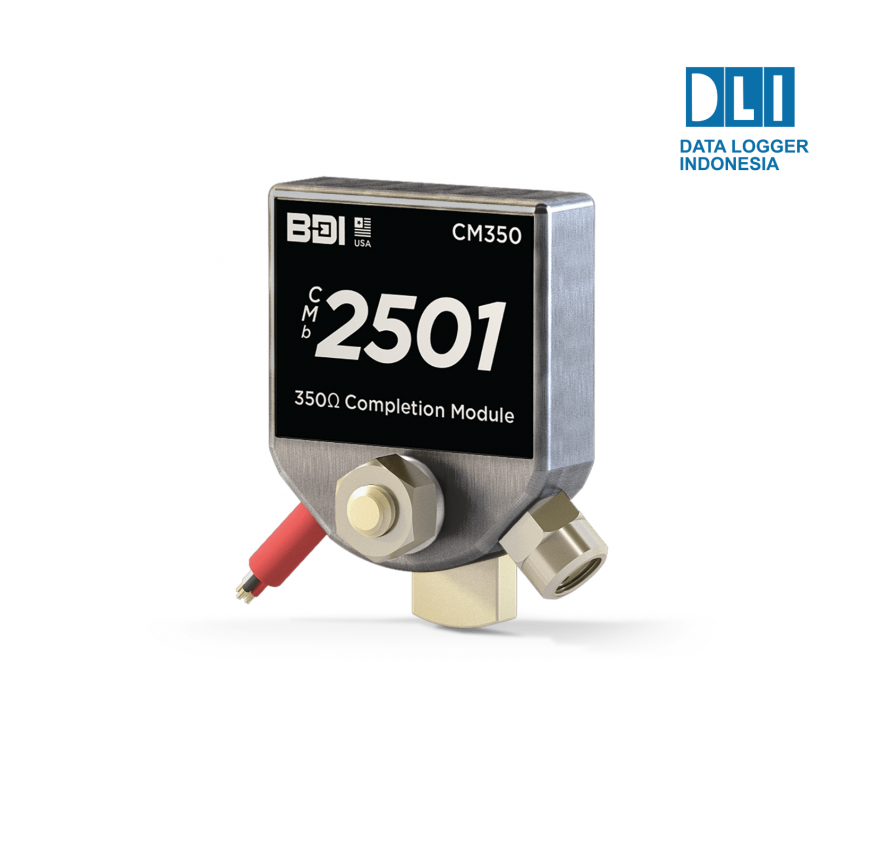

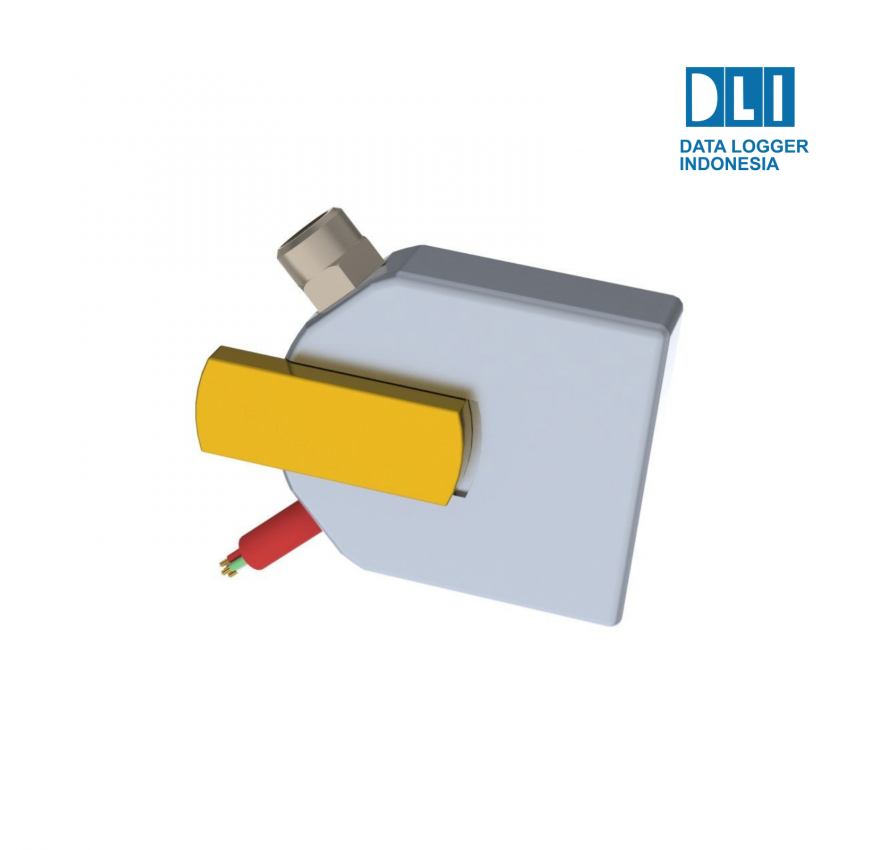

Modul Komplemen CM120 & CM350 kami dirancang untuk memungkinkan koneksi input yang kokoh untuk pengukur regangan foil Anda melalui konektor M8. Setiap modul komplemen dilengkapi dengan kabel dengan panjang khusus dan keluaran kabel instrumentasi terintegrasi. Tersedia dalam konfigurasi 120Ω dan 350Ω serta keluaran milivolt standar, modul komplemen yang kokoh dan dapat digunakan kembali ini secara signifikan mengurangi waktu pemasangan di lapangan dan memberikan rasio sinyal terhadap derau yang lebih baik.
- Complete the Wheatstone bridge circuit near the strain gage installation location
- Quarter Bridge Type I and Type II
- Half Bridge Type I and Type II
- Can be used on all types of 120Ω and 350Ω strain gages
Feature
- 120Ω and 350Ω Gages
- Designed to exceed IP67
- Minimizes lead wire effects
- Rugged M8 mating connector
- Pre-wired leads
- Various mounting options available
- Industrial cable, custom lengths
- Simple to use!
- Integrated thermistor
Spesification
| MODEL | CM120 | CM350 |
| RESISTANCE | 120? | 350? |
| RESISTANCE ACCURACY | ±0.02% | ±0.02% |
| FOIL GAGE TYPE SUPPORTED | 3-Wire hookup Quarter Bridge Type I 3-Wire hookup Quarter Bridge Type II 3- or 4-wire hookup Half Bridge Type I 3- or 4-wire hookup Half Bridge Type II |
|
| EXCITATION VOLTAGE1 | +1.0 to +10.0 Vdc | |
| OUTPUT | mV level, ratiometric to Excitation Voltage | |
| HOUSING | Machined 6061-Aluminum Alloy | |
| CORROSION RESISTANCE | Hard Anodized Clear (MIL-A-8625 Type III) | |
| ENVIRONMENTAL | Designed to exceed IP67 | |
| OPERATING TEMPURATURE2 | -49° to +176 °F (45° to +80 °C) | |
