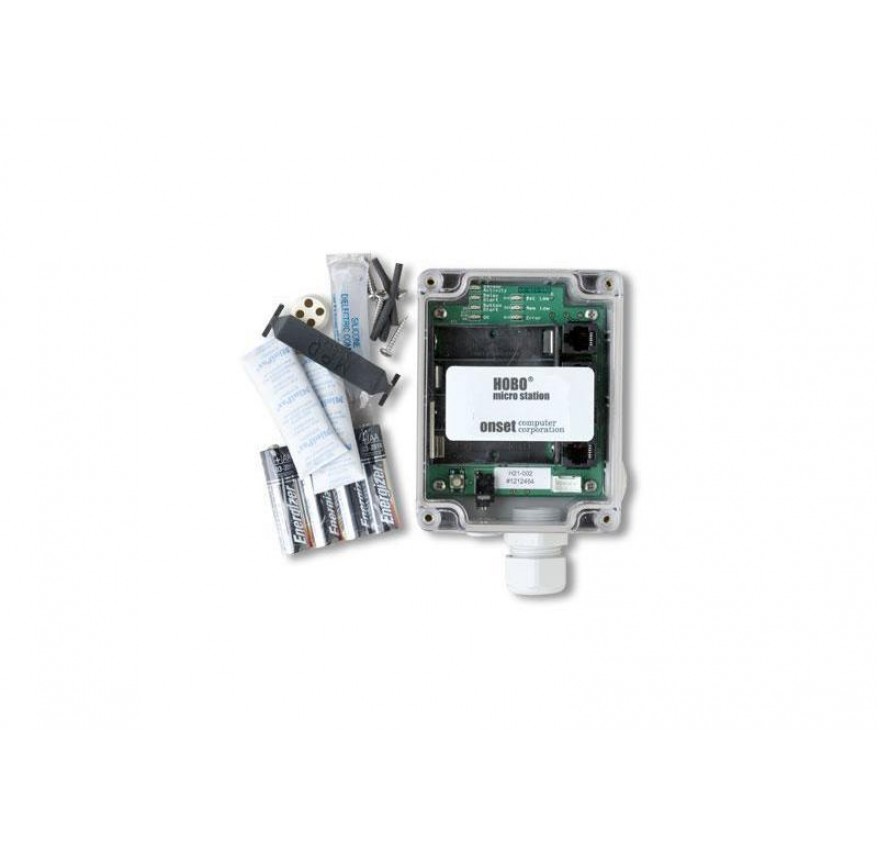

H21-002 Micro Station Data Logger

H21-002 Micro Station Data Logger


Harga
Rp. 8.055.196

Inquiry

Description

Akurat memantau kondisi cuaca di luar ruangan dengan Stasiun Mikro HOBO. Logger data ini berkisar mulai dari $ 231 dan populer karena ukurannya yang ringkas. Ini menerima hingga empat sensor cerdas plug and play, dan memiliki lebih dari 500 k penyimpanan data flash nonvolatile. Micro Station bisa berjalan sampai 1 tahun dengan empat baterai AA standar.


Feature

  • NEW! Improved weatherproof enclosure for harsh environments
  • Optional analog and pulse inputs for 3rd-party sensors
  • Battery-powered for up to a year - no solar panels required
  • Requires HOBOware or HOBOware Pro software for logger setup, graphing and analysis.
  • Requires #ADAPT-SER-USB interface cables

Spesification

Operating range: -20° to 50°C (-4° to 122°F) with alkaline batteries, -40° to 70°C (-40° to 158°F) with lithium batteries
Sensor inputs: Up to four smart sensors (including multiple-parameter sensors)
Communication: 3.5 mm serial port
Dimensions: 8.9 cm H x 11.4 cm D x 5.4 cm W (3.5 x 4.5 x 2.125 inches)
Weight: 0.36 kg (0.8 lb)
Memory: 512K nonvolatile flash data storage
Memory modes: Stop when full, wrap around when full
Operational indicators: Seven lights provide logging and sensor network status
Logging interval: 1 second to 18 hours, user-specified interval
Battery life: 1 year typical use (up to 4 sensors with 1 minute or longer logging interval)
Battery type: Four standard AA alkaline batteries included (for operating conditions -20° to 50°C [-4° to 122°F]); optional AA lithium batteries available for operating conditions of -40° to 70°C (-40° to 158°F)
Time accuracy: 0 to 2 seconds for the first data point and ±5 seconds per week at 25°C (77°F)
Data type: Supports measurement averaging based on availability of supporting data from sensor
Logger start modes: Immediate, push-button, or delayed start options
Data communication: Current reading while logging, offload while logging, or offload when stopped
Environmental rating: Weatherproof, with GoreTM Vent for deployment in harsh weather conditions; tested to NEMA 4X and IP66.
Mounting: Mount vertically on flat surface 18 cm (3.5 inches) or wider; optional mast mounting kit for use on 4.1 cm (1 5/8 inches) diameter masts
Enclosure access: Cover secured by four screws
Sensor network cable length: 100 m (328 ft) maximum
