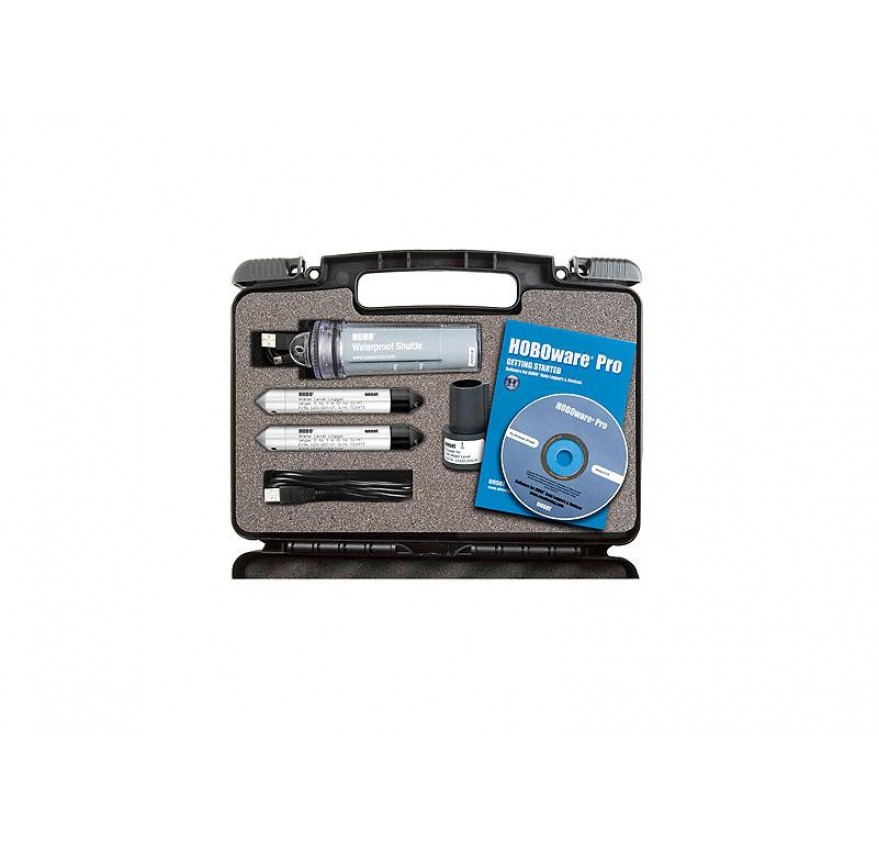

KIT-D-U20-04 Water Level Data Logger Deluxe Kit (13’)





Inquiry

Description

Dengan menggabungkan pengukuran water level dengan akurasi tinggi dengan kenyamanan di luar kotak, kit hemat uang ini mencakup semua yang dibutuhkan untuk segera memulai perekaman data. Ini sangat ideal untuk memantau tingkat air dan suhu di sumur, sungai, danau dan lahan basah air tawar, serta tekanan barometrik.

Kit ini meliputi:

  • U20-001-04 Data logger HOBO (kisaran 13 ')
  • U20-001-04 Data logger HOBO (kisaran 13 ') untuk Tekanan Barometrik
  • U-DTW-1 HOBO kedap air dengan coupler
  • Tas pembawa U20-CASE-1
  • Perangkat lunak HOBOware Pro BHW-PRO-CD.

Seperti penebang air tingkat HOBO lainnya, versi 13 kaki menawarkan nilai luar biasa dan kemudahan penggunaan, tanpa tabung ventilasi atau desiccant yang tidak praktis untuk dipelihara.




Feature

  • Lightning protection - no long signal wires, and electronics are shielded in stainless steel housing (see the Water Level logger sensor location drawing)
  • HOBOware Pro software provides easy conversion to accurate water level reading, fully compensated for barometric pressure (see demo) temperature, and water density.
  • Multiple-rate sampling (see demo) allows faster sampling at critical times such as when pumping starts or stops.
  • Available in 4 depth ranges
  • Ideal for use in wells, streams, lakes, wetlands and tidal areas
  • No-vent-tube design for easy reliable deployment
  • Durable ceramic pressure sensor

Spesification

Pressure Sensor
Operation range: 0 to 145 kPa (0 to 21 psia); approximately 0 to 4 m (0 to 13 ft) of water depth at sea level, or 0 to 7 m (0 to 23 ft) of water at 3,000 m (10,000 ft) of altitude
Factory calibrated range: 69 to 145 kPa (10 to 21 psia), 0° to 40°C (32° to 104°F)
Burst pressure: 310 kPa (45 psia) or 18 m (60 ft) depth
Water level accuracy:* Typical error - 0.075% FS, 0.3 cm (0.01 ft) water
Maximum error: - 0.15% FS, 0.6 cm (0.02 ft) water
Raw pressure accuracy:** 0.3% FS, 0.43 kPa (0.063 psi) maximum error
Resolution: < 0.014 kPa (0.002 psi), 0.14 cm (0.005 ft) water
Pressure response time 90%: < 1 second
Thermal response time (90%): † Approximately 10 minutes in water to achieve full temperature compensation of the pressure sensor

Temperature Sensor
Operation range: -20° to 50°C (-4° to 122°F)
Accuracy: 0.37°C at 20°C (0.67°F at 68°F)
Resolution: 0.1°C at 20°C (0.18°F at 68°F) (10-bit)
Response time (90%): 3.5 minutes in water (typical)
Stability (drift): 0.1°C (0.18°F) per year

Logger
Real-time clock: ± 1 minute per month 0° to 50°C (32° to 122°F)
Battery: 2/3 AA, 3.6 Volt Lithium, factory-replaceable
Battery life (typical use): 5 years with 1 minute or greater logging interval
Memory (non-volatile): 64K bytes memory (approx. 21,700 pressure and temperature samples)
Dimensions: 2.46 cm (0.97 inches) diameter, 15 cm (5.9 inches) length; mounting hole 6.3 mm (0.25 inches) diameter
Weight: Approximately 210 g (7.4 oz)
Wetted materials: 316 stainless steel, Viton® o-rings, acetyl cap, ceramic sensor
Shock/drop: Logger is sensitive to shocks. Handle with care and avoid any impact. Always use proper packaging when shipping the logger.
Logging interval: Fixed-rate or multiple logging intervals, with up to 8 user-defined logging intervals and durations; logging intervals from 1 second to 18 hours. Refer to HOBOware software manual.
Launch modes: Immediate start and delayed start
Offload modes: Offload while logging; stop and offload
Battery indication: Battery voltage can be viewed in status screen and optionally logged in datafile. Low battery indication in datafile.
