Description

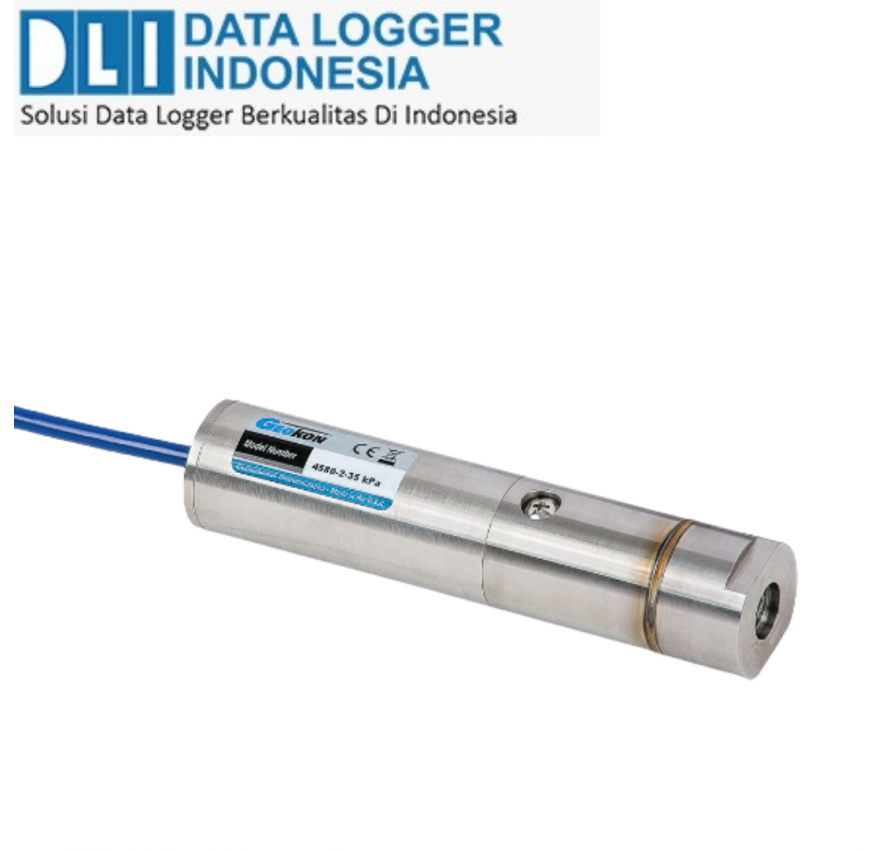

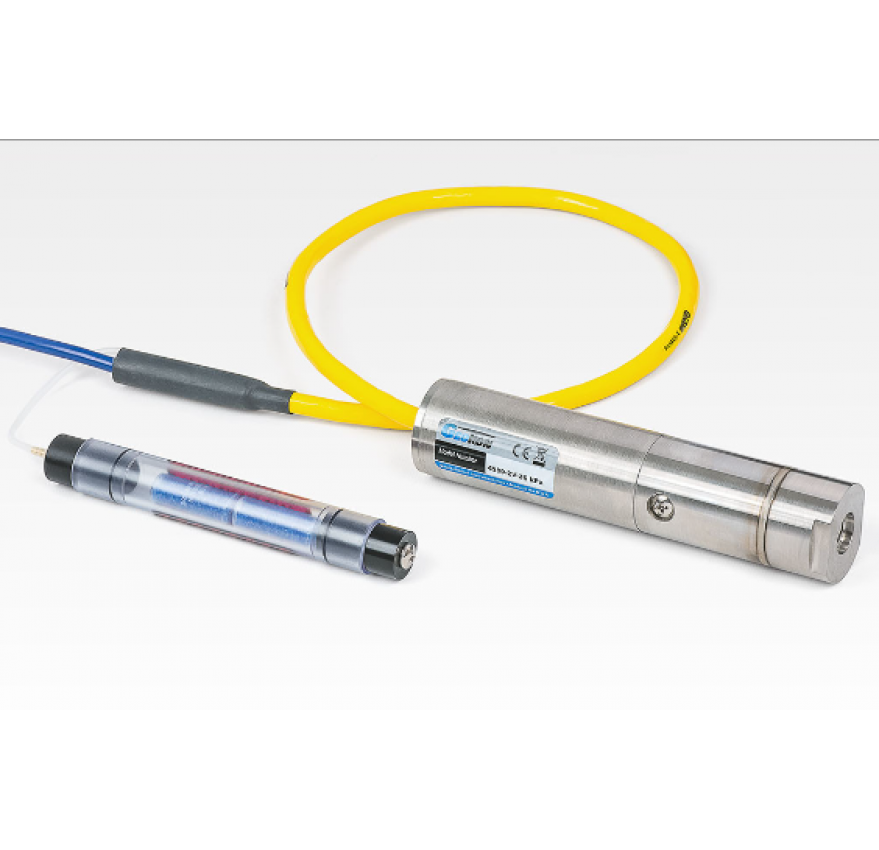

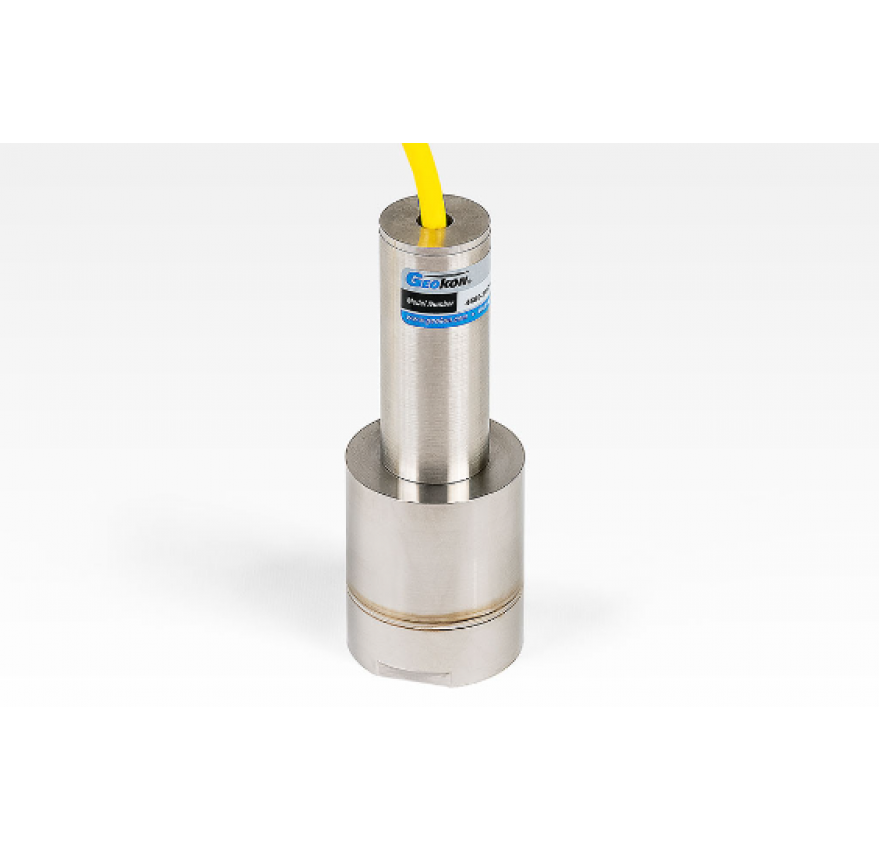

The Model 4580-2/2V/3V Pressure Transducers* are designed for very low fluid pressure measurements, such as groundwater elevations in wells, water levels in streams, weirs, flumes, etc. Changes in water levels of as little as 0.2 mm can be measured.
Spesification
|
Standard Ranges
|
Standard Ranges
4580-2 | 17, 35 kPa
4580-2V | 17 kPa 4580-3V | 7 kPa |
|
Over Range
|
1.5 × rated pressure |
|
Resolution²
|
0.025% F.S. |
|
Accuracy
|
±0.1% F.S. |
|
Linearity
|
<0.5% F.S. (±0.1% F.S. optional) |
|
Temperature Range³
|
−20°C to +80°C |
|
Length × Diameter
|
4580-2(V) | 165 × 38
4580-3V | 165 × 63.5 mm
|
