Description

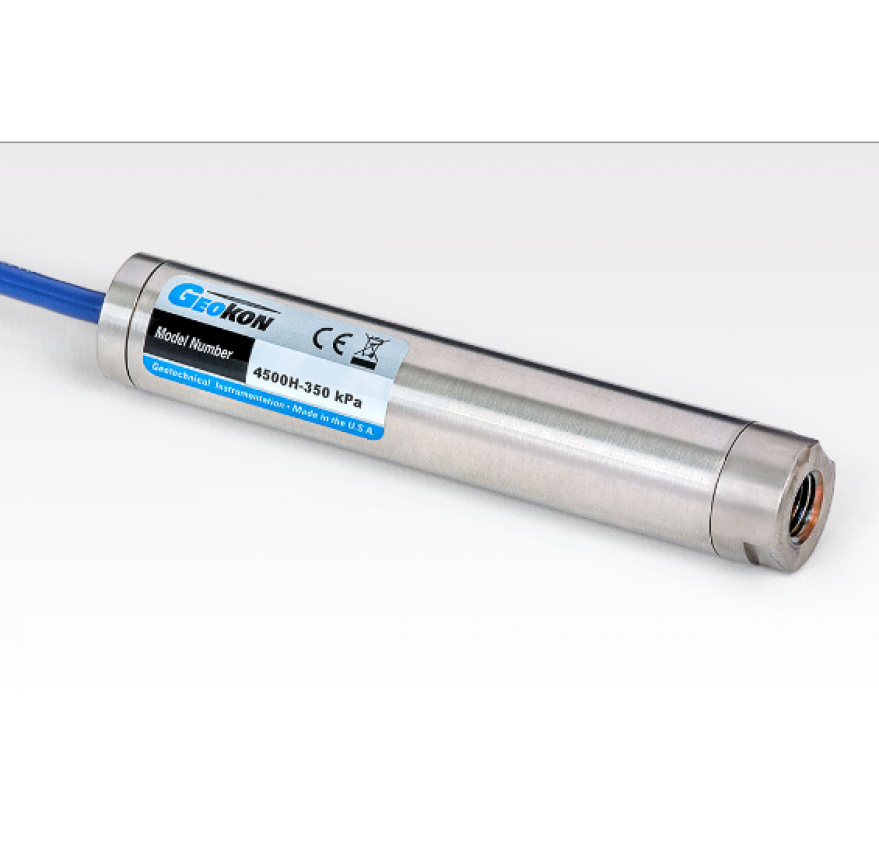

The Model 4500H and 4500HH Pressure Transducers* are supplied with 1⁄4-18 female NPT (4500H) and
7⁄16-20 60 degree female medium pressure (4500HH) fittings to permit the transducer to be coupled directly into hydraulic or pneumatic pressure lines. Other pipe thread sizes are also available.
Spesification
|
Standard Ranges
|
4500H | 70, 170, 350, 700 kPa; 1, 2, 3 MPa 4500HH | 5, 7.5, 10, 20, 35, 75, 100 MPa |
|
Over Range¹
|
1.5 × rated pressure |
|
Resolution
|
0.025% F.S. (minimum) |
|
Accuracy
|
±0.1% F.S. |
|
Linearity
|
<0.5% F.S. (±0.1% F.S. optional) |
|
Temperature Range²
|
−20°C to +80°C |
|
Length × Diameter
|
4500H | 140 × 25.4 mm; 140 × 32 mm (70, 170 kPa) 4500HH | 143 × 25.4 mm |
