Description

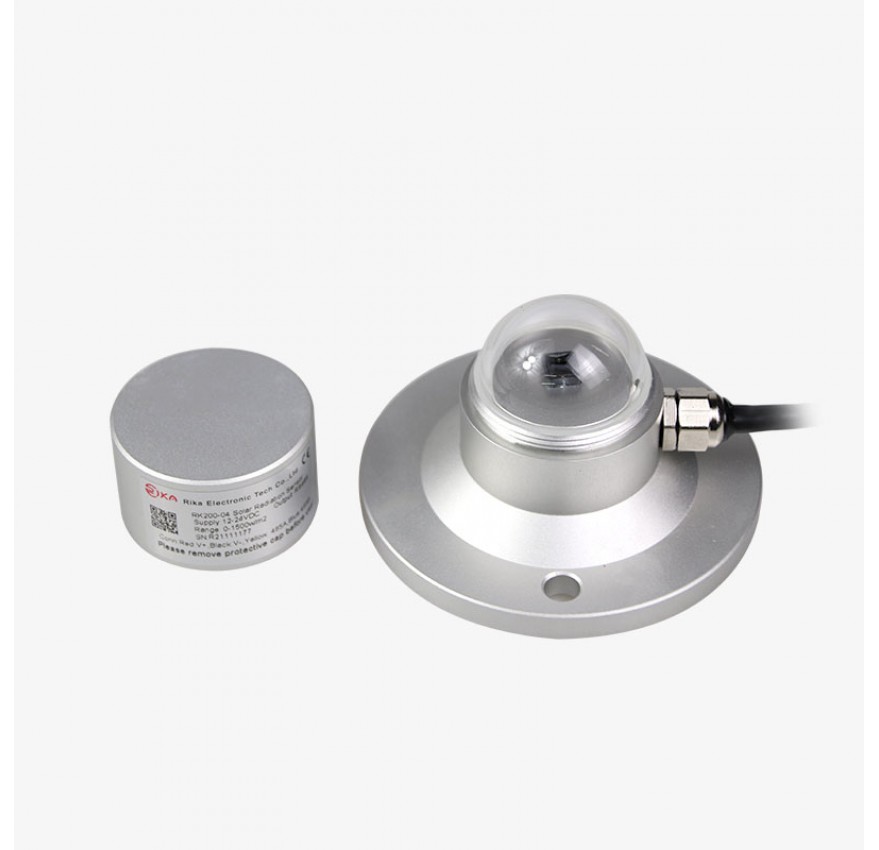

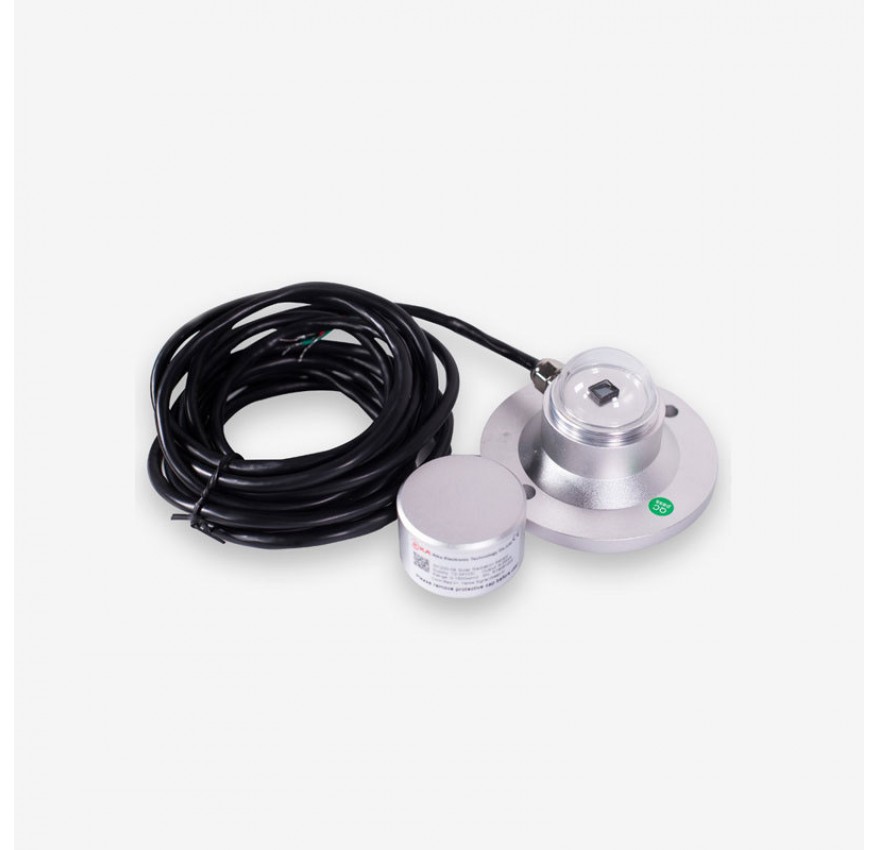

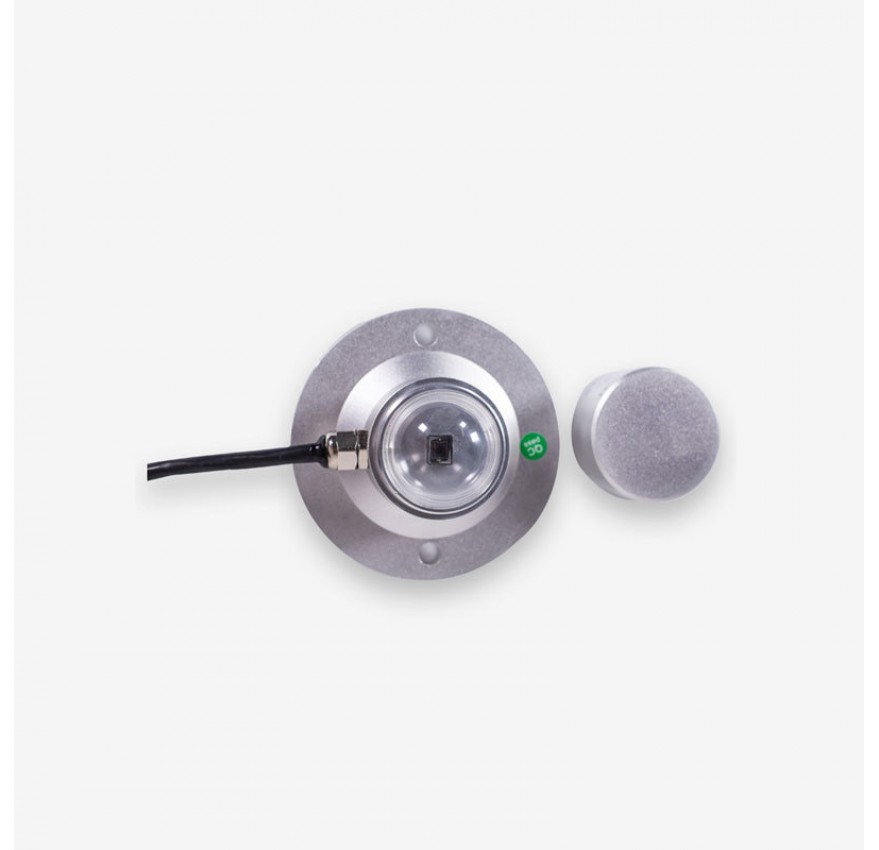

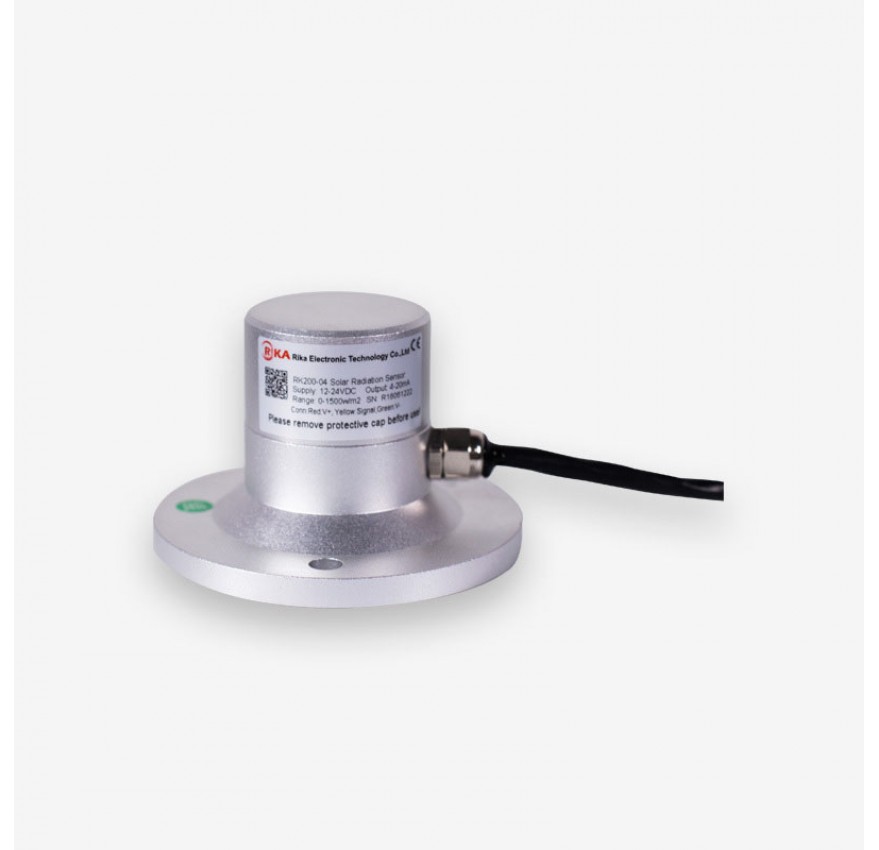

RK200-04 Solar Radiation Sensor is designed on basis of silicon-cell principle. It is mainly used for measuring solar radiation within 300-1100nm wavelength. If the sensing face is downwards, it can test the reflected radiation and solar radiation on the incident to the inclined plane. If shad is added, it can test the scattered radiation. It is widely used to monitor the solar radiation in meteorology, solar energy, agriculture, construction materials aging and atmospheric pollution and etc..
Feature
DIMENSION & MOUNTING & SPECTRAL RESPONSE
DIMENSION & MOUNTING (Unit:mm)
In order to the accuracy of the measurement, please ensure that the sensor mounted horizontally as much as possible.
SPECTRAL RESPONSE
PRODUCT DETAILS
Product Principle
Installation
Product Functions
Product Material
Spesification
|
Item |
SPECIFICATIONS |
|
Spectral range |
300?1100nm |
|
Supply |
5V,12-24VDC |
|
Range |
0-1500W/m2 |
|
Resolution |
1W/m2 |
|
Output |
0-5V,4-20mA,RS485 |
|
Response time |
≤5s |
|
Cosine correction |
≤±10%(Solar elevation angle=10°) |
|
Non-linear |
≤±3% |
|
Temperature effect |
±0.08%/? |
|
Stability |
≤±2%/year |
|
Operating Temperature |
-40?-+80? |
|
Ingress Protection |
IP65 |
|
Weight(unpacked) |
420g |
|
Shell material |
Aluminum alloy |
|
Storage Condition |
10?-60?@20%-90%RH |
* The product can be used as a sunshine time sensor Sunshine hours is the sum of time periods that the sun direct irradiance intensity to reach or exceed 120W/m2 time , hour as a unit, a decimal. Sunshine hours is also known as actual irradiance time.
