Description

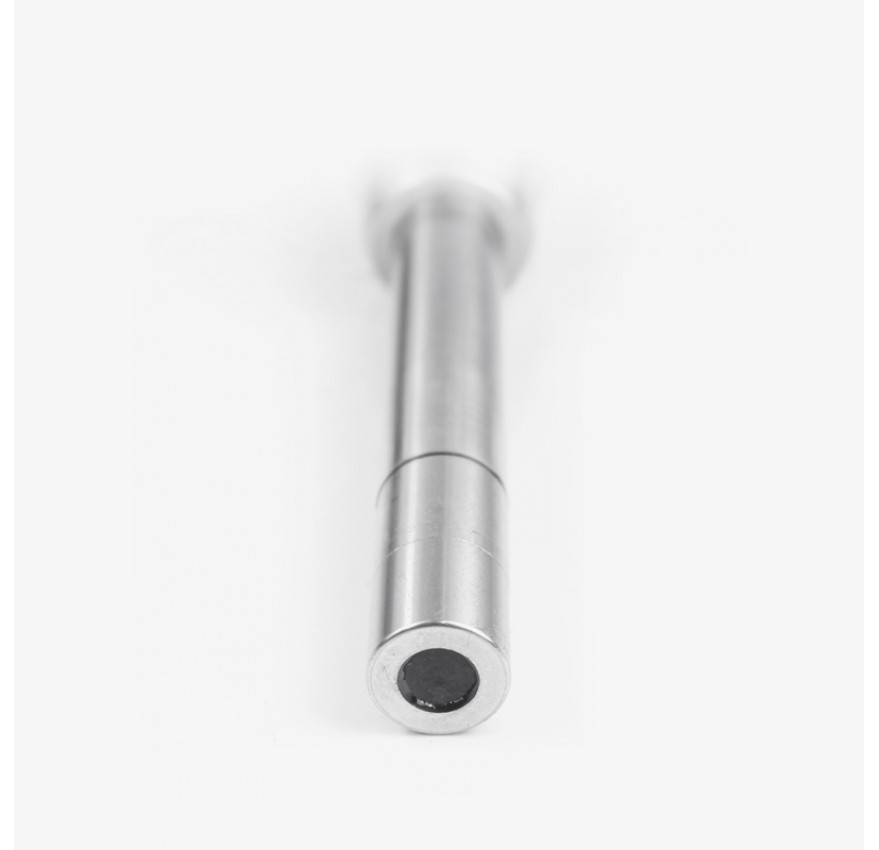

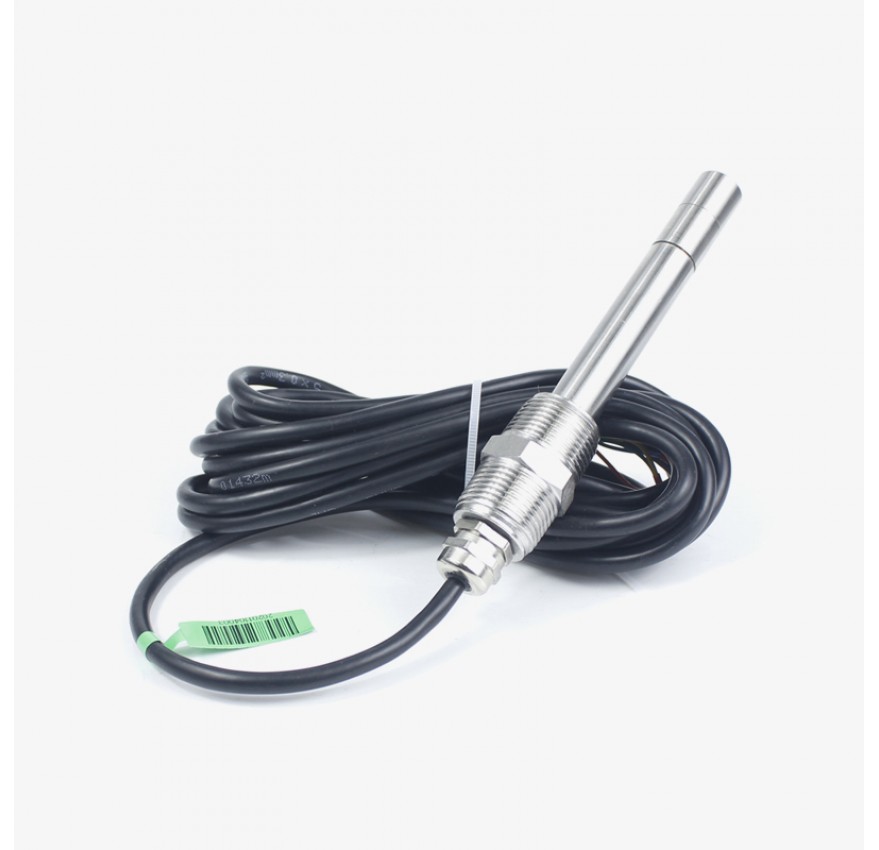

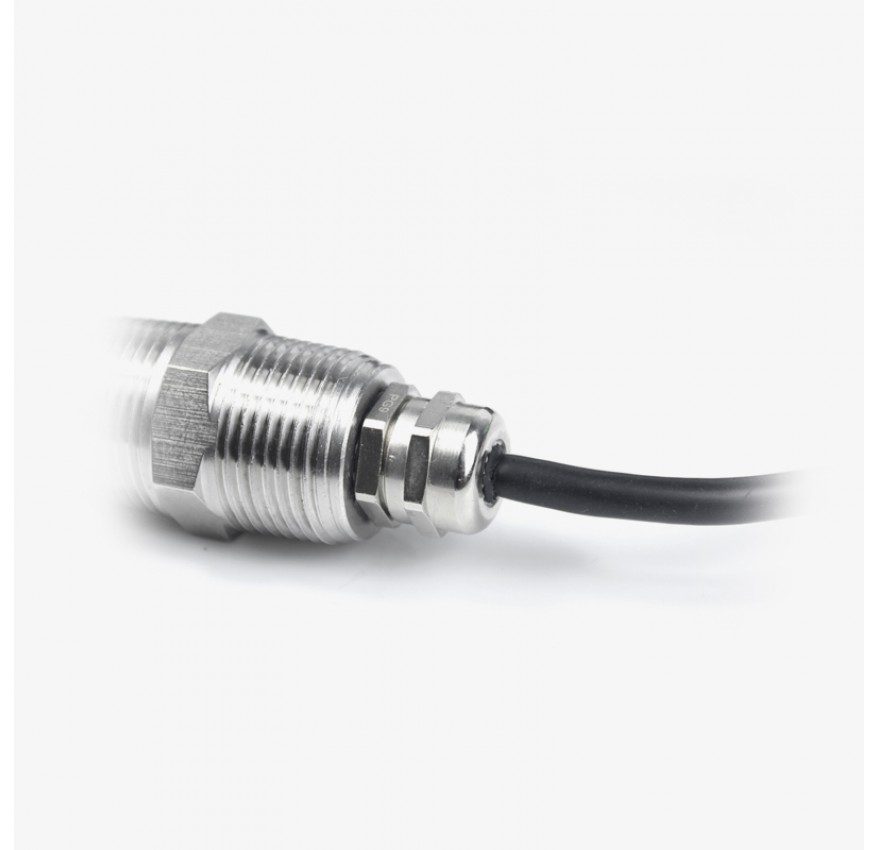

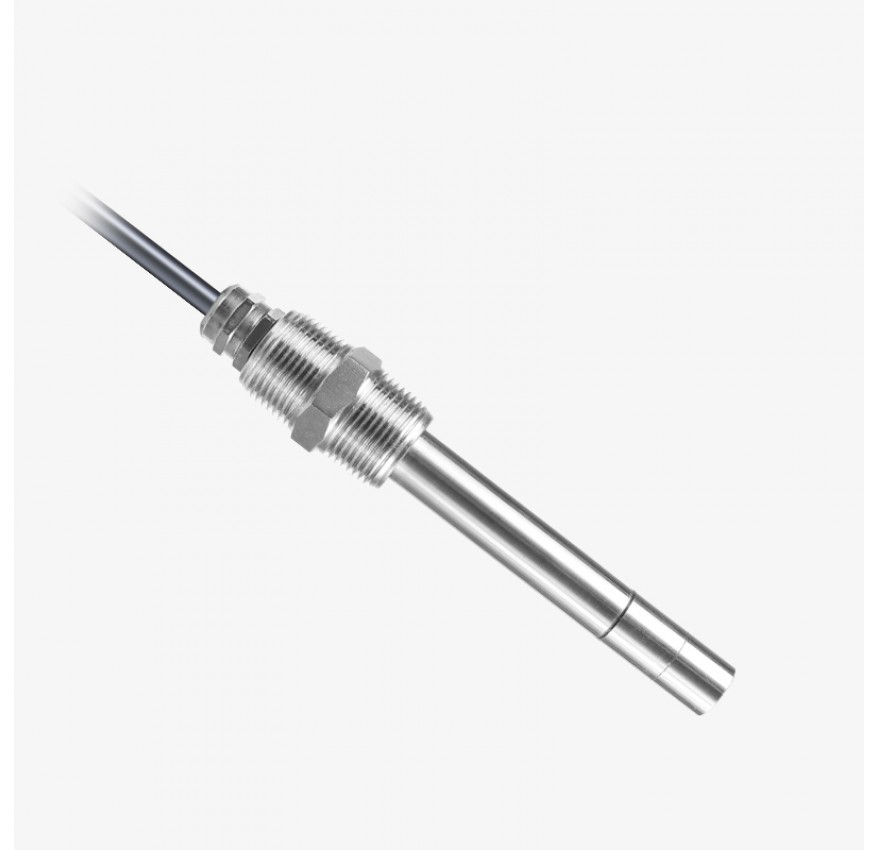

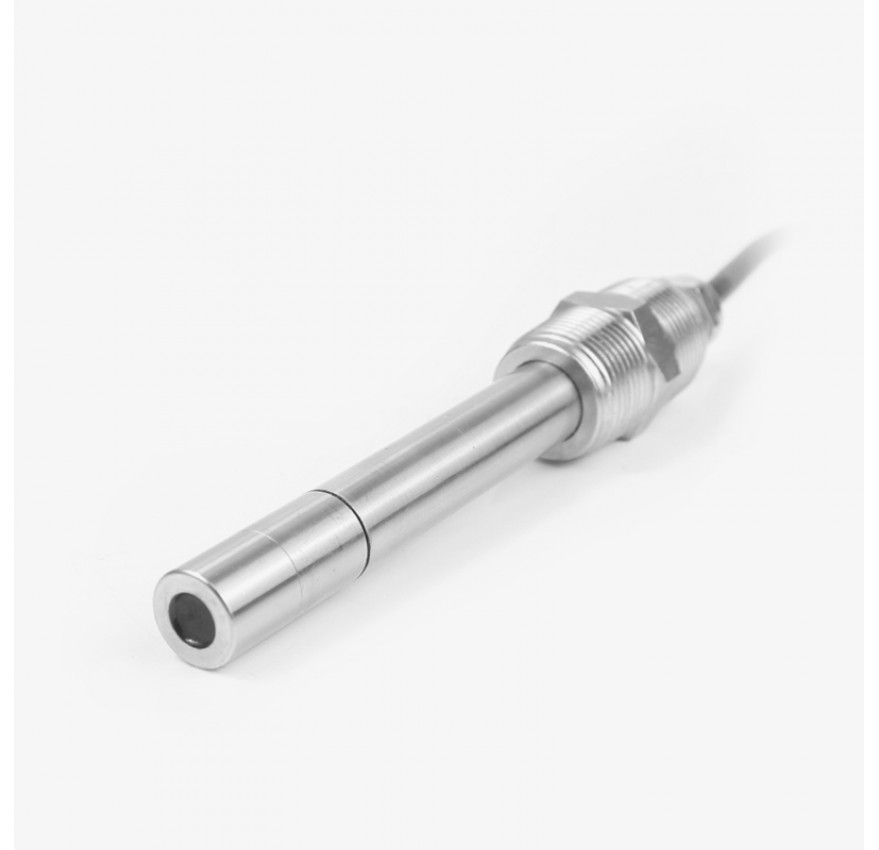

RK500-04 Dissolved Oxygen(DO) Sensor design based on the principle of fluorescence and high performance through oxygen membrane, with short response time, measurement accuracy, stable performance, etc. It can be widely used in chemical fertilizer, metallurgy, environmental protection water treatment engineering, pharmaceutical, biochemical, food, aquaculture and water such as continuous monitoring of dissolved oxygen in the solution.
Feature
PRODUCT DETAILS
Product Principle
Material
Spesification
|
Item |
Technical Specification |
|
|
DO |
Temperature |
|
|
Range |
0-20mg/L(ppm) |
0-60? |
|
Accuracy |
±0.5%FS |
±0.5? |
|
Resolution |
0.01mg/L |
0.1? |
|
Supply |
12VDC,24VDC |
|
|
Temperature compensation |
0-60? |
|
|
Output |
RS485 |
|
|
Measuring principle |
Fluorescence |
|
|
Maintenance |
Every 1year to replace fluorescent cap |
|
|
Response time |
<60s |
|
|
Pressure Resistance |
0.3MPa |
|
|
Power consumption |
<0.4W |
|
|
Operating Temperature |
0-+80? |
|
|
Probe material |
General: 316L |
|
|
Dimension |
Φ16*125mm |
|
|
Weight(probe) |
0.7kg |
|
|
Ingress Protection |
IP68 |
|
|
Storage |
10-60?@20%-90%RH |
|
|
Cable length |
5m default, other length customizable |
|
