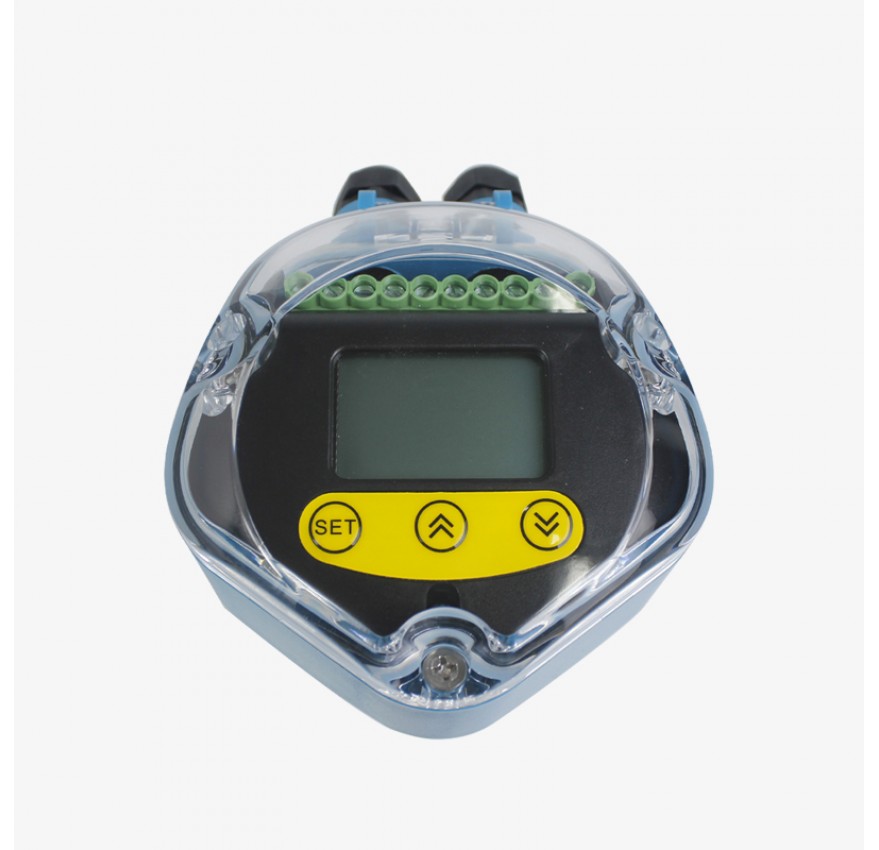

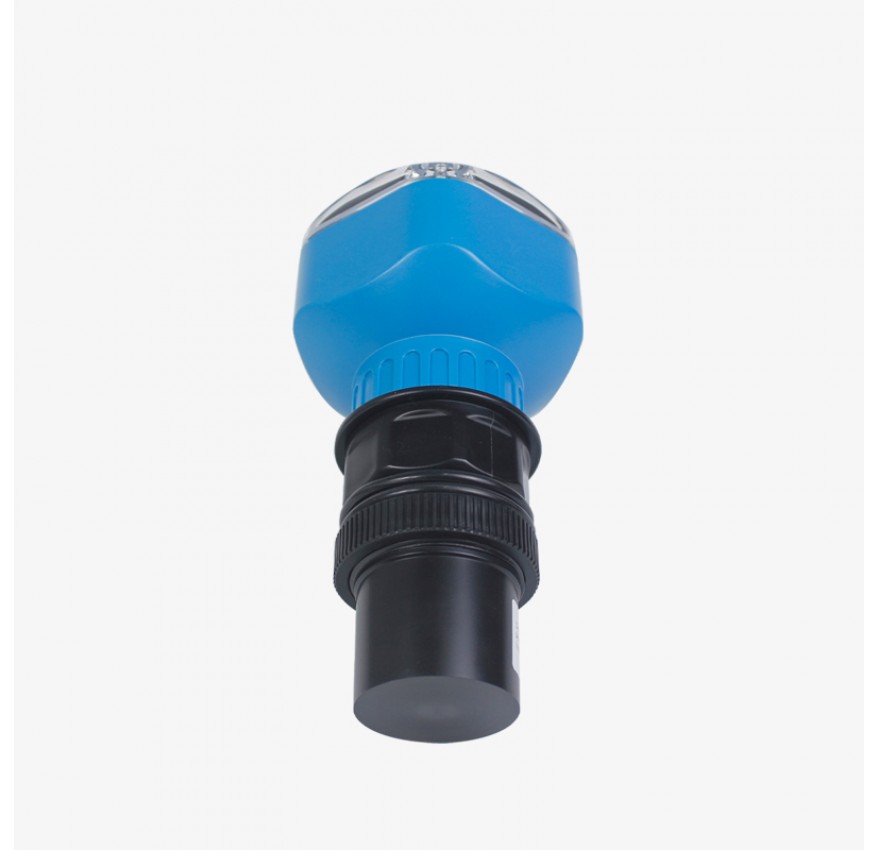

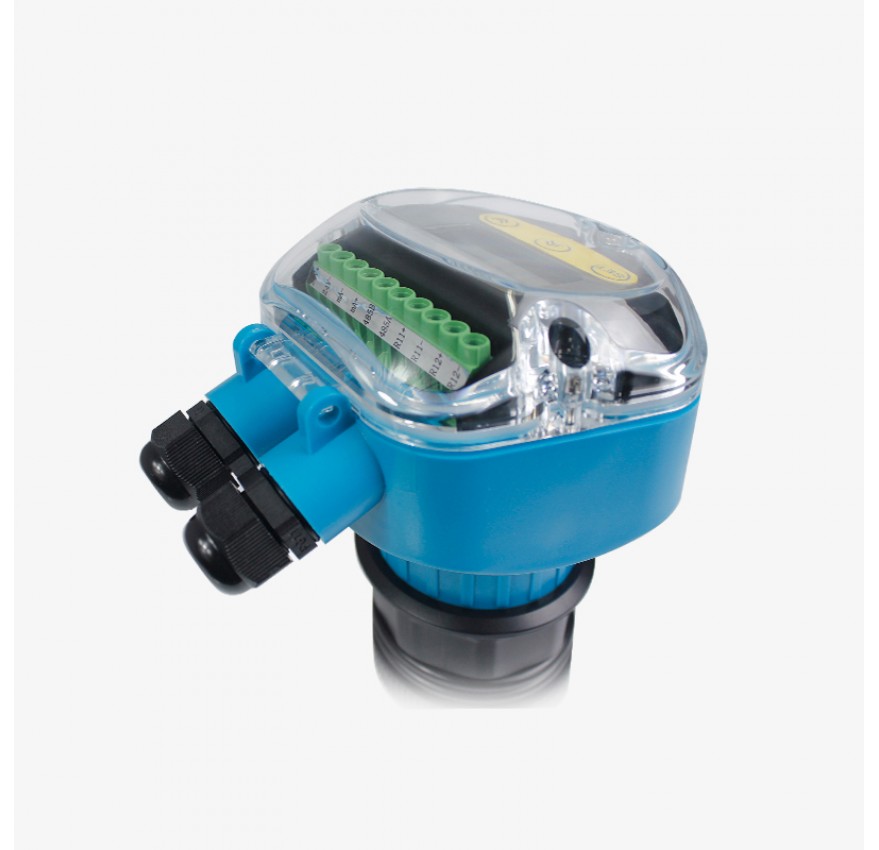

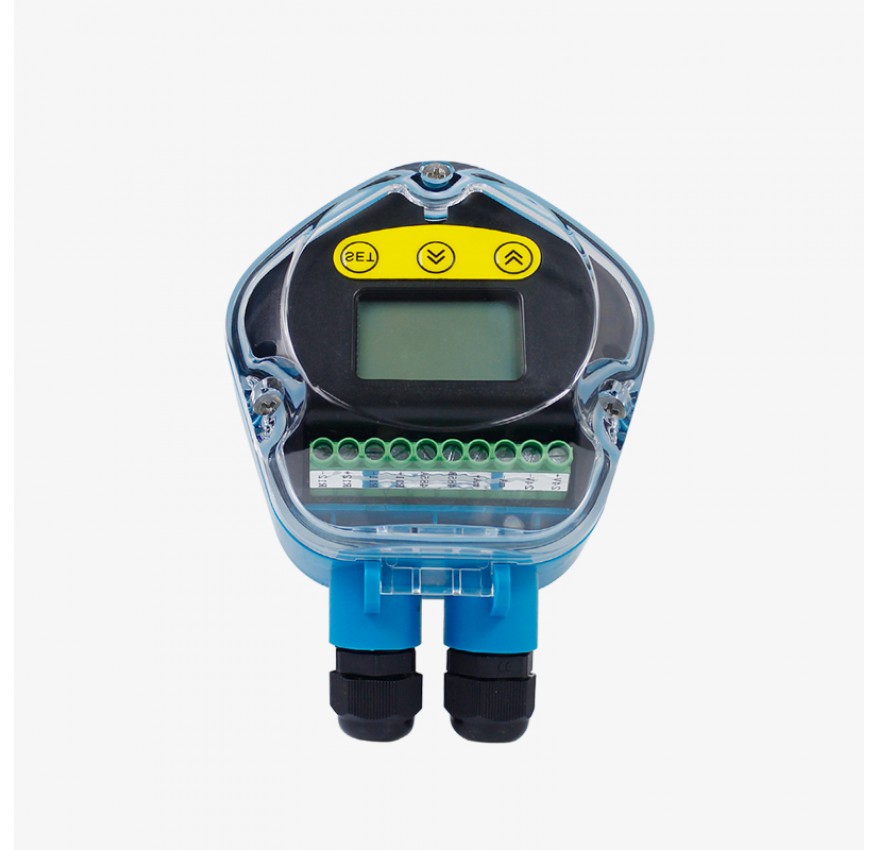

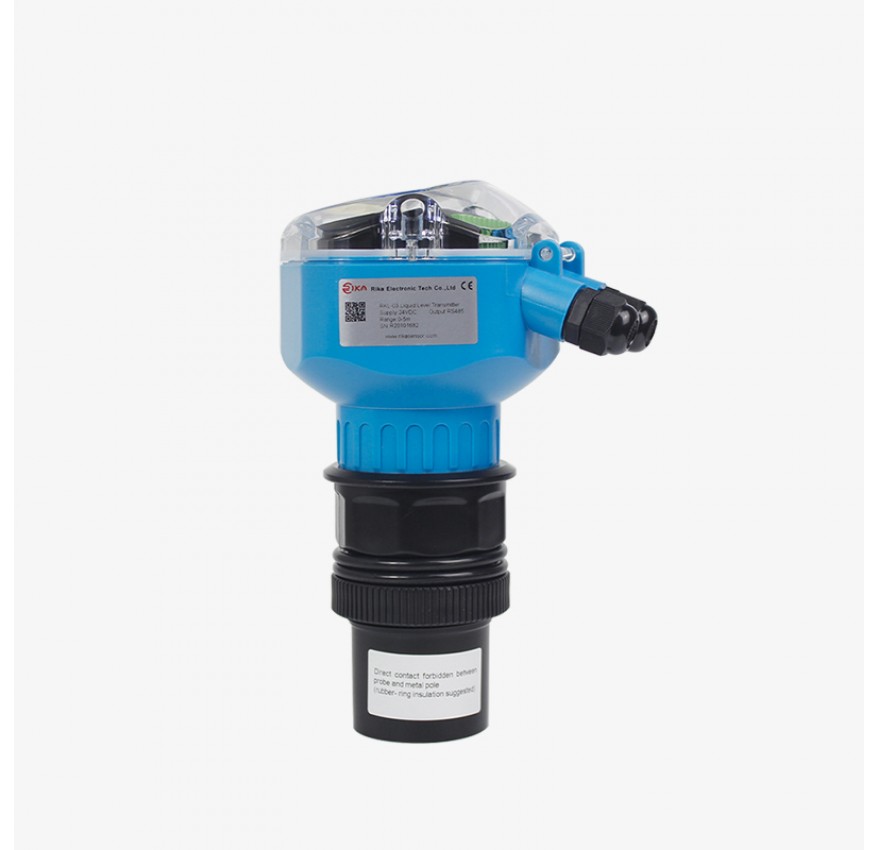

RKL-03 Ultrasonic Liquid Level Transmitter





Inquiry

Description

RKL-03 Ultrasonic Liquid Level Transmitter is a kind of non-contact, high reliability, high cost performance, easy installation and maintenance of material level measuring instrument.It doesn't have to contact medium can meet the requirements of most of the material level measurement.Firing pulse and receives the pulse interval and the antenna to the surface of the measured medium is proportional to the distance, to calculate the distance on the surface of the antenna to the measured medium.The prod

uct can cooperate with RK600-01 data logger or general recording instrument is used.


Feature

PRODUCT DETAILS



MOUNTING


Spesification

Item

Technical specifications

Range

5m,10m,15m,20m,30m

Output

4-20mA( 2wires),4-20mA(4wires),RS485(4wires)

Supply Voltage

24VDC,220VAC

Accuracy

0.5%-1%

Resolution

±3mm or 0.1%FS(take the maximum value)

Display

LCD with English

Control output(optional)

Relay AC250V/8A or 30V/5A

Power consumption

4-wire,without relay:1.9W

4-wire,with relay:3.1W

2-wire,without relay:0.72W

Ingress Protection

Probe:IP68,Display unit:IP66

Operating Temperature

Probe:-40?~ +85?,Display unit:-20?~ +60?

Housing material

Anti-aging corrosion resistant engineering plastics

Process connection

Range=0-5m:M48*2

Range=0-10m:G2 or M60*2

Range=0-20m:G3 or M78*2

Range=0-30m:G3 M78*2

Range>30m:M108*2

Menu setting

Reference zero point, maximum of measuring range,minimum of measuring range,alarm point,Return difference setting,working mode,response time,parameter correction,communication setting etc.

Storage Condition

10?-50?@20%-90%RH
