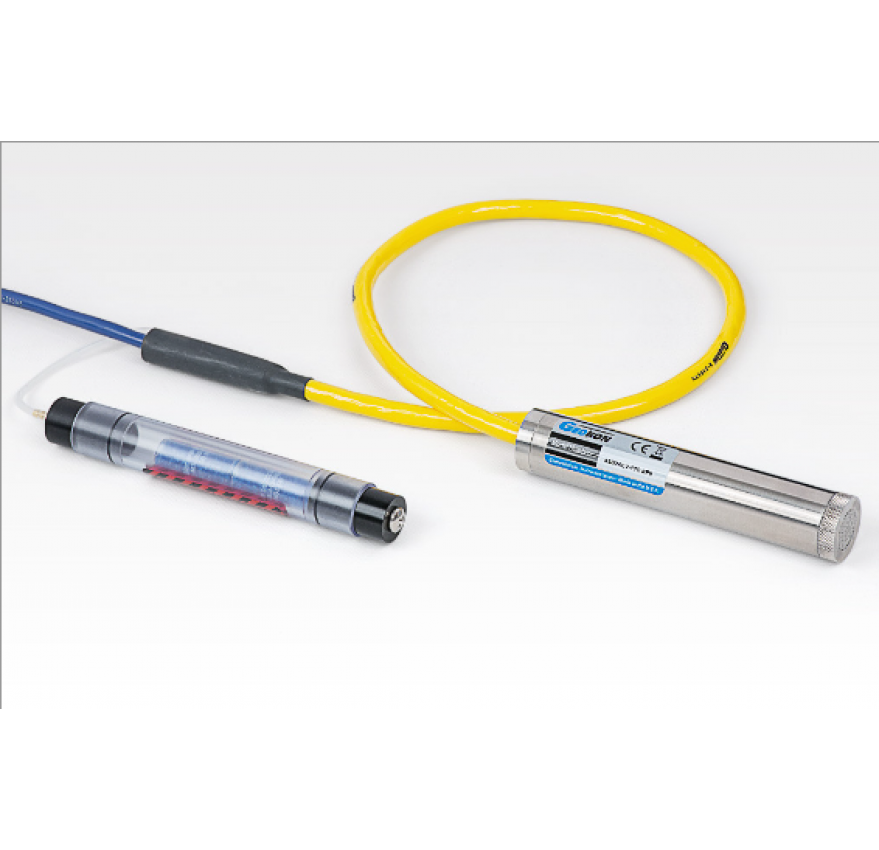

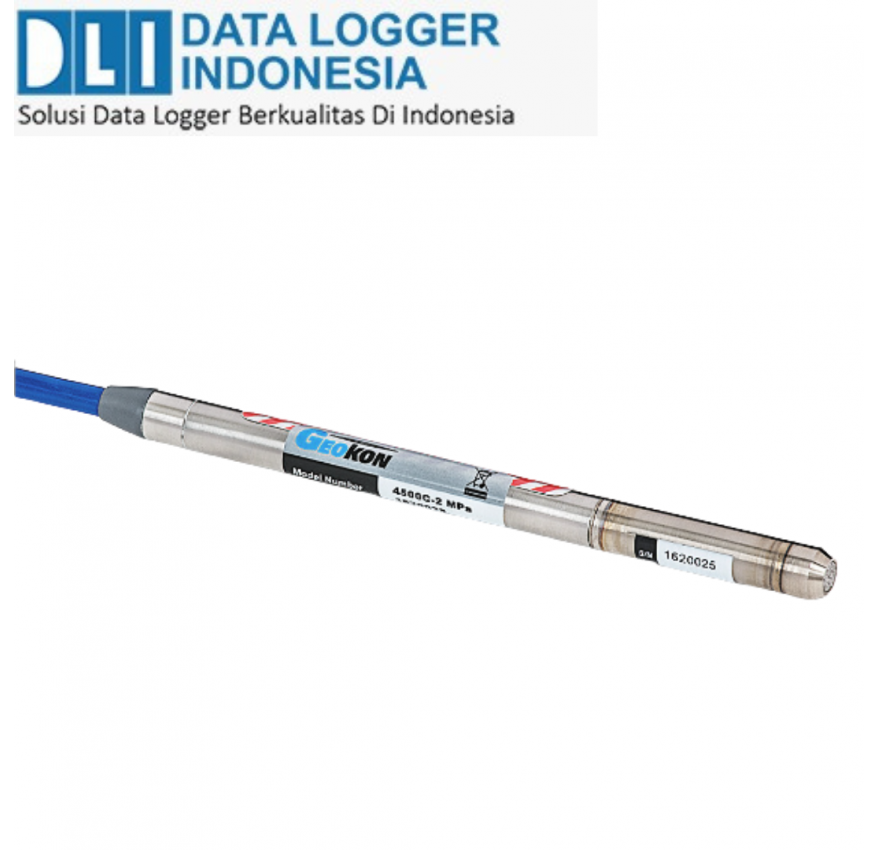

Small Diameter Piezometers (VW) | Model 4500B(V) · 4500C


Hubungi Kami






Description

These piezometers are uniquely designed to enable the automation of small diameter, non-standard piezometer standpipes. The 4500B will fit inside 19 mm pipe and the 4500C will fit inside 12 mm pipe.*


Spesification

Standard Ranges 4500B(V) | 350, 700 kPa; 1, 2, 3 MPa
4500C | 350, 700 kPa
Over Range 4500B(V) | 1.5 × rated pressure
4500C | 1.5 × rated pressure
Resolution 4500B(V) | 0.025% F.S. (minimum)
4500C | 0.05% F.S. (minimum)
Accuracy
±0.1% F.S.
Linearity¹
<0.5% F.S.
Temperature Range²
−20°C to +80°C
Length × Diameter
4500B(V) | 133 × 17.5 mm
4500C | 165 × 11 mm
