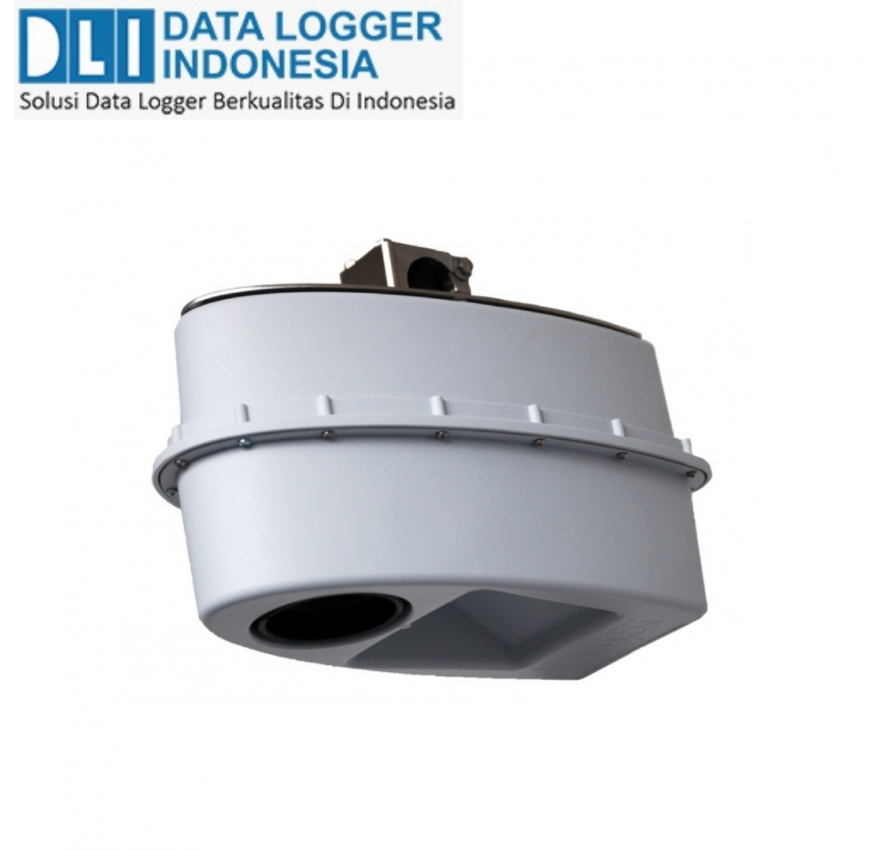

SQ-R FLOW METER

NON-CONTACT FLOW MEASUREMENT FOR WASTEWATER TREATMENT PLANTS, SEWERS AND INDUSTRIAL WATER CHANNELS

The SQ-R measures continuously and contact-free the flow rate of effluent channels, partially filled pipes and technical ducts in industry and water supply. The SQ-R is not in contact with the water and can therefore be operated without being affected by debris and entrained solids. With its compact design and versatile mounting options, it is the ideal choice for flow measurements in manholes of facilities and sewers.

FIELDS OF APPLICATION

The SQ-R is specially designed for municipal and industrial applications in wastewater treatment plants, sewers and process water circuits. For example, the amount of wastewater entering a treatment plant can be monitored to control the facility and allocate wastewater costs. Furthermore, the duration and frequency of rain and flood events can be recorded, which is essential for sewer management by plant operators and utilities.

IMPLEMENTATION

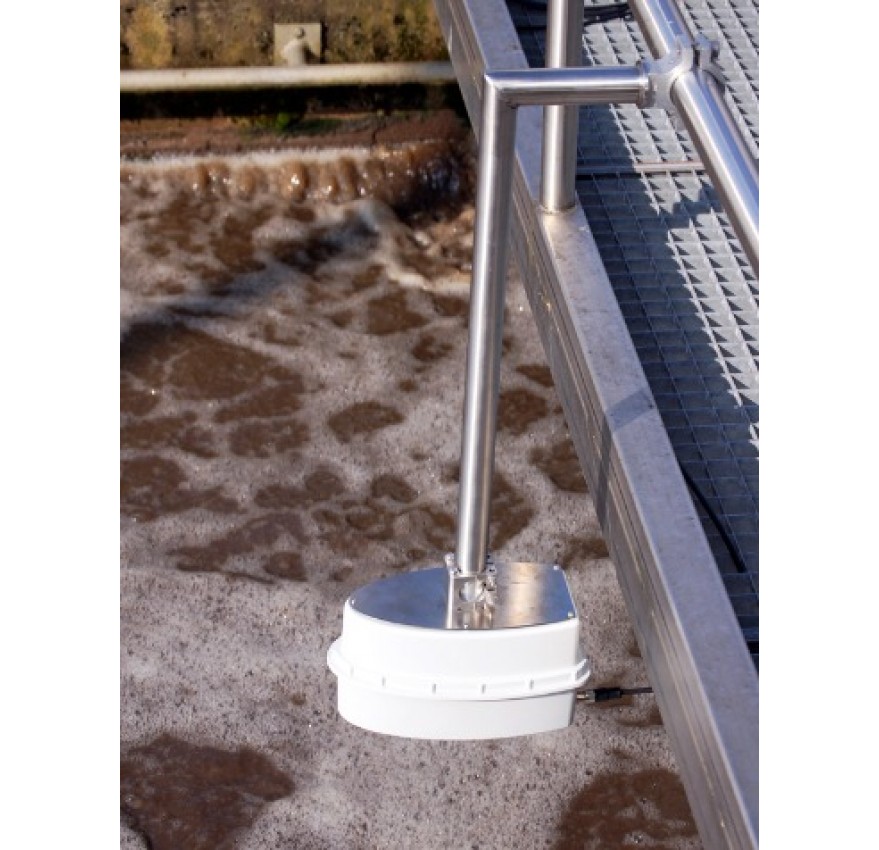

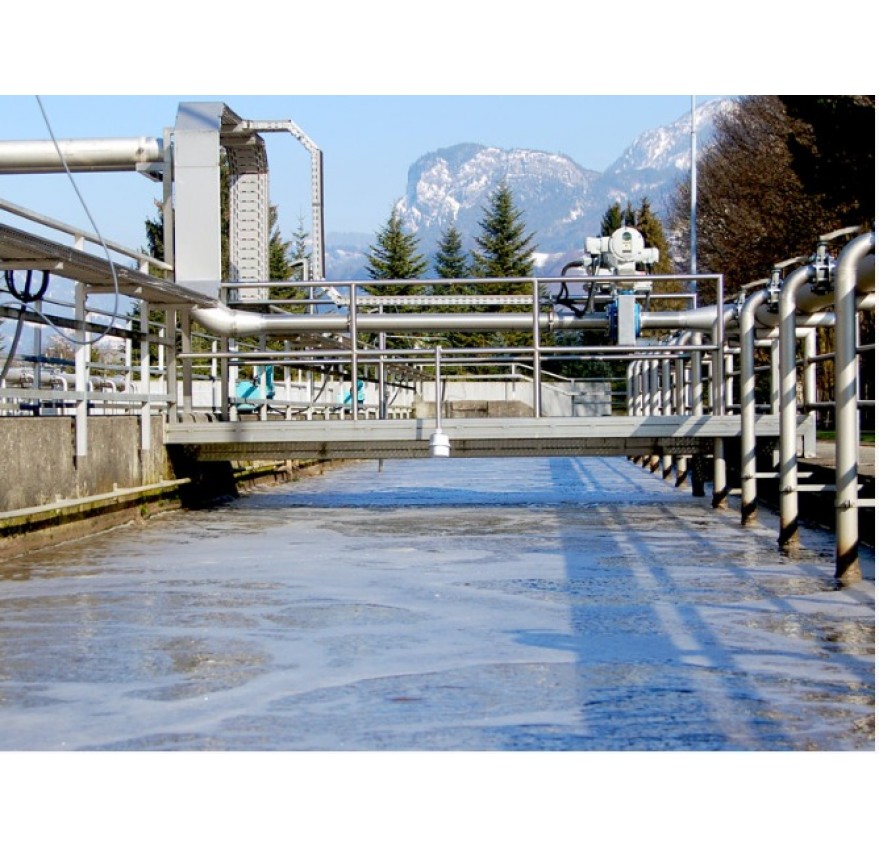

Due to its compact design and flexible mounting device, the sensor is very easy to install, for example under bridges or extensions, on ceilings of sewers or in manholes. The non-contact measuring technology has the decisive advantage that the sensor can be mounted above the water level. Thus, the SQ-R can be easily installed, is readily accessible and cannot be clogged or blocked by entrained solids, which is often the case with submerged sensors.

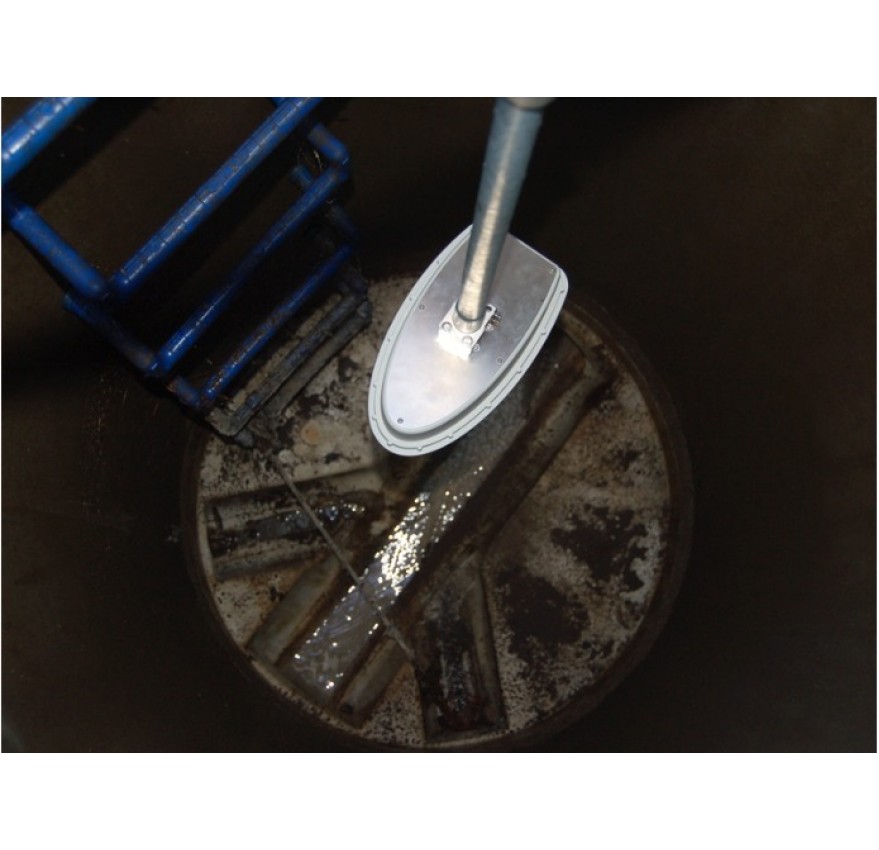

A specially designed adjustable mounting bracket is available for installation in manholes of sewers.

SQ-R AS MOBILE, AUTONOMOUS MONITORING STATION

For remote monitoring sites without grid connection, the SQ-R can also be operated autonomously: In combination with a data logger, a data transmission modem, a powerful battery and an adequate solar module, the SQ-R can be upgraded to an independent system. Optionally, it can also be equipped with a camera to visualize the conditions on site.
