Description

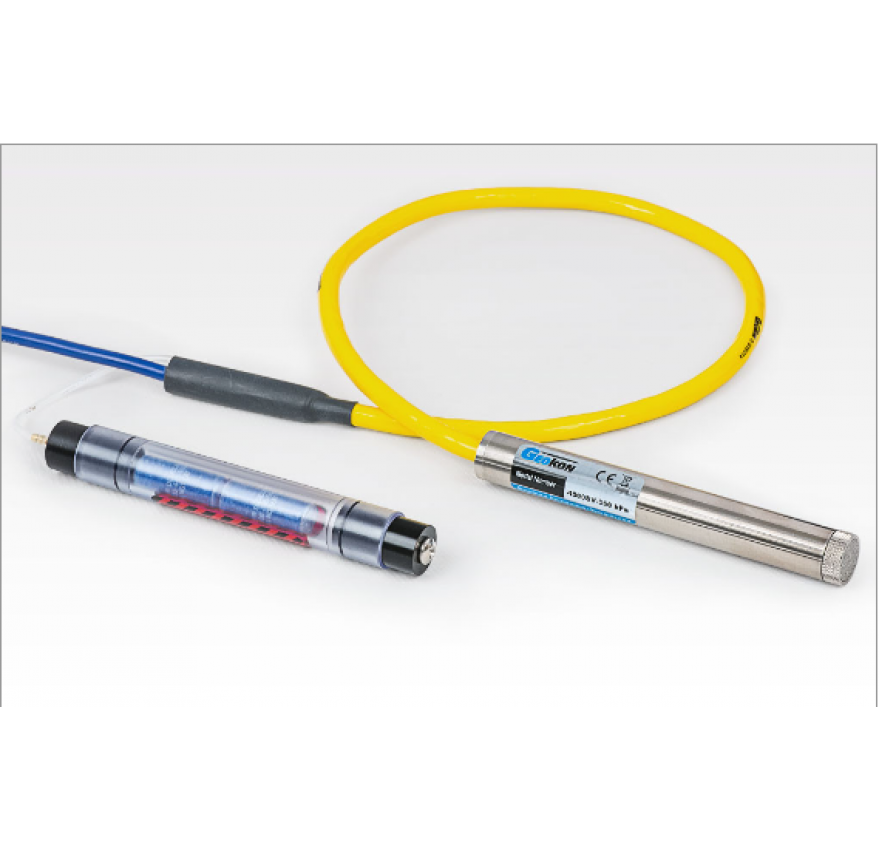

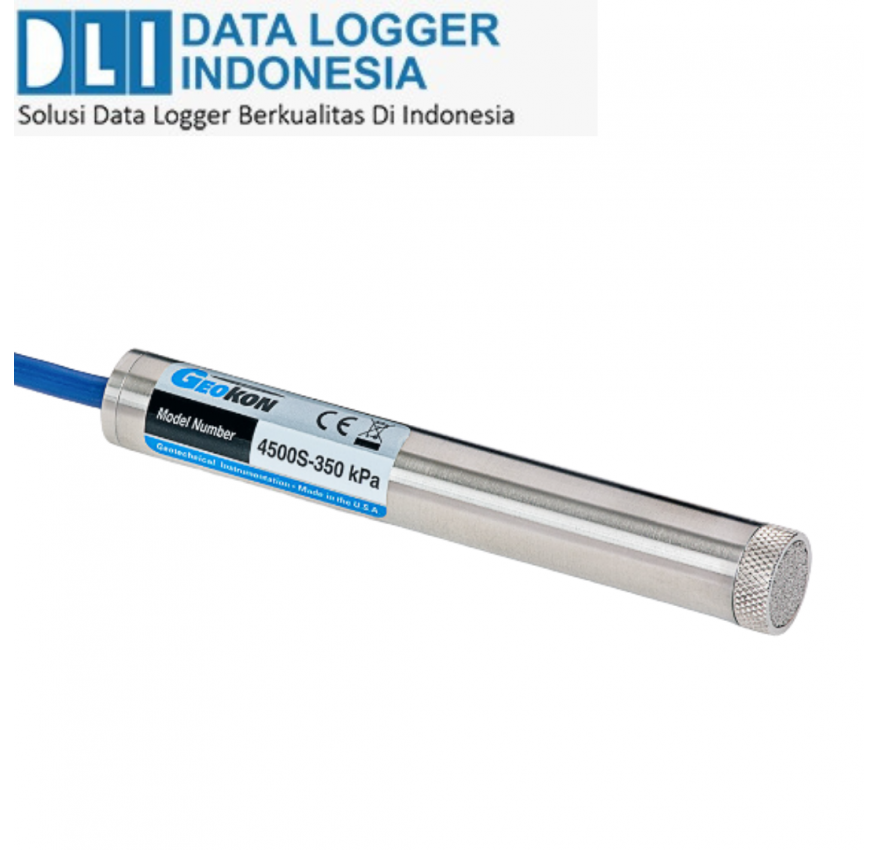

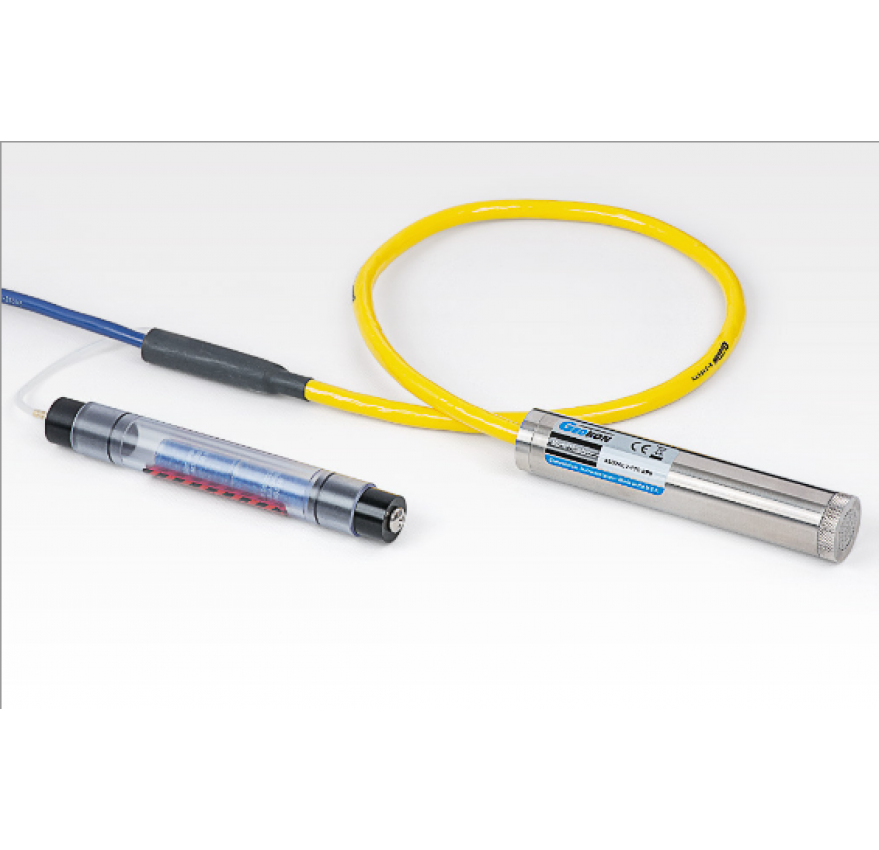

The Model 4500 Standard Piezometer is designed to measure fluid pressures such as ground water elevations and pore pressures when buried directly in embankments, fills, etc. Also for installation inside boreholes, observation wells and standard (>19 mm diameter) piezometer riser pipe. The Model 4500SH is designed with a heavy duty housing for pressures that exceed 3 MPa. The Model 4500AL is designed for low-pressure ranges. The vented version (ALV) provides automatic compensation for barometric pressure changes. Thermistors are included to measure temperatures.*
Spesification
StandardRanges¹
|
4500S | 350, 700 kPa; 1, 2, 3 MPa 4500SV | 350, 700 kPa 4500SH | 350, 700 kPa; 1, 2, 3, 5, 7.5, 10, 20 MPa 4500AL(V) | 70, 170 kPa |
Over Range | 1.5 × rated pressure |
Resolution
|
0.025% F.S. (minimum) |
Accuracy | ±0.1% F.S. |
Linearity | <0.5% F.S. (±0.1% F.S. optional) |
Temperature Range²
|
−20°C to +80°C |
Length × Diameter
|
4500S | 133 × 19.1 mm 4500SV | 146 × 19.1 mm 4500SH | 194 × 25.4 mm 4500AL(V) | 133 × 25.4 mm |
