Description

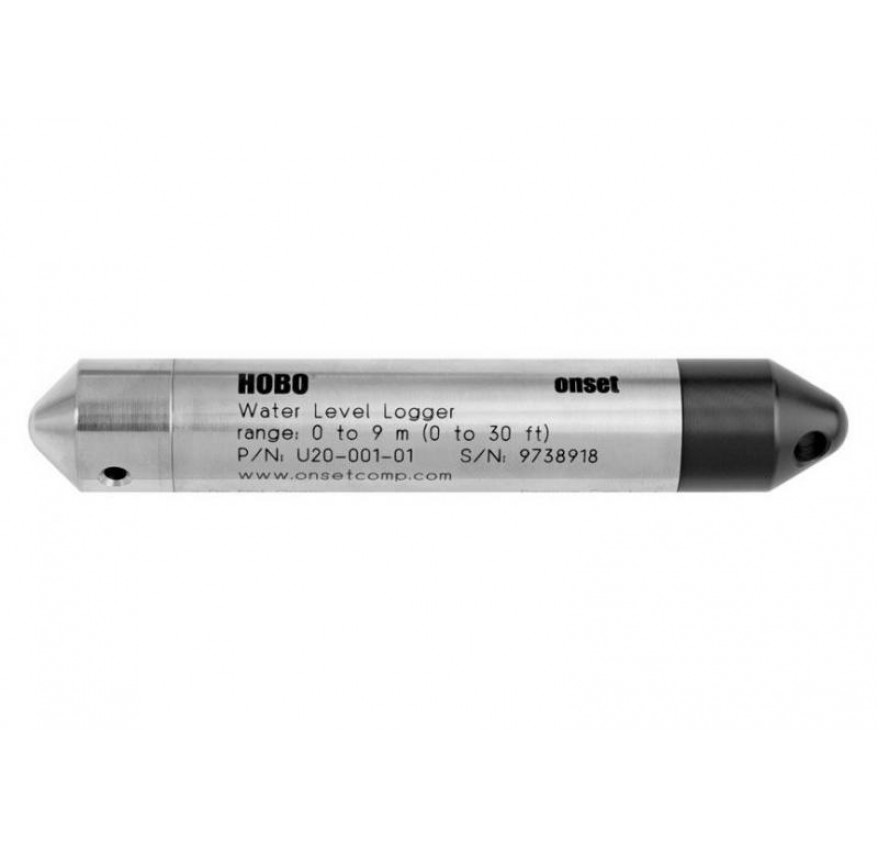

The HOBO Water Level data logger Memiliki akurasi tinggi dengan harga terjangkau dan kemudahan penggunaan, tanpa tabung ventilasi atau desiccant yang tidak praktis untuk dipelihara. Data logger ini sangat ideal untuk mencatat tingkat air dan suhu di sumur dangkal, sungai, danau dan lahan basah air tawar. Untuk penyebaran air asin, seperti lahan basah payau dan daerah pasang surut, lihat Titanium Level Air HOBO U20.
Feature
- Lightning protection - no long signal wires, and electronics are shielded in stainless steel housing for use in freshwater (see the Water Level logger sensor location drawing)
- HOBOware Pro software provides easy conversion to accurate water level reading, fully compensated for barometric pressure (see demo) temperature, and water density.
- Multiple-rate sampling (see demo) allows faster sampling at critical times such as when pumping starts or stops.
- Available in 4 depth ranges
- Ideal for use in wells, streams, lakes, wetlands and tidal areas
- No-vent-tube design for easy reliable deployment
- Available in stainless and titanium versions
- Durable ceramic pressure sensor
- 3-point NIST-traceable calibration certificate included
Spesification
| Pressure and Water Level Measurements U20-001-01 and U20-001-01-Ti | |
| Operation Range | 0 to 207 kPa (0 to 30 psia); approximately 0 to 9 m (0 to 30 ft) of water depth at sea level, or 0 to 12 m (0 to 40 ft) of water at 3,000 m (10,000 ft) of altitude |
| Factory Calibrated Range | 69 to 207 kPa (10 to 30 psia), 0° to 40°C (32° to 104°F) |
| Burst Pressure | 310 kPa (45 psia) or 18 m (60 ft) depth |
| Water Level Accuracy* | Typical error: ±0.05% FS, 0.5 cm (0.015 ft) water Maximum error: ±0.1% FS, 1.0 cm (0.03 ft) water |
| Raw Pressure Accuracy** | ±0.3% FS, 0.62 kPa (0.09 psi) maximum error |
| Resolution | |
| Pressure Response Time (90%)*** | |
| Temperature Measurements (All Models) | |
| Operation Range | -20° to 50°C (-4° to 122°F) |
| Accuracy | ±0.44°C from 0° to 50°C (±0.79°F from 32° to 122°F), see Plot A in manual |
| Resolution | 0.10°C at 25°C (0.18°F at 77°F), see Plot A in manual |
| Response Time (90%) | 5 minutes in water (typical) |
| Stability (Drift) | 0.1°C (0.18°F) per year |
| Logger | |
| Real-time Clock | ± 1 minute per month 0° to 50°C (32° to 122°F) |
| Battery | 2/3 AA, 3.6 Volt lithium, factory-replaceable |
| Battery Life (Typical Use) | 5 years with 1 minute or greater logging interval |
| Memory (Non-volatile) | 64K bytes memory (approx. 21,700 pressure and temperature samples) |
| Weight | Stainless steel models: approximately 210 g (7.4 oz) Titanium models: approximately 140 g (4.8 oz) |
| Dimensions | 2.46 cm (0.97 inches) diameter, 15 cm (5.9 inches) length; mounting hole 6.3 mm (0.25 inches) diameter |
| Wetted Materials | 316 stainless steel, Viton® o-rings, acetyl cap, ceramic sensor |
| Logging Interval | Fixed-rate or multiple logging intervals, with up to 8 user-defined logging intervals and durations; logging intervals from 1 second to 18 hours. Refer to the HOBOware software manual. |
| Launch Modes | Immediate start and delayed start |
| Offload Modes | Offload while logging; stop and offload |
| Battery Indication | Battery voltage can be viewed in status screen and optionally logged in datafile. Low battery indication in datafile. |
