Description

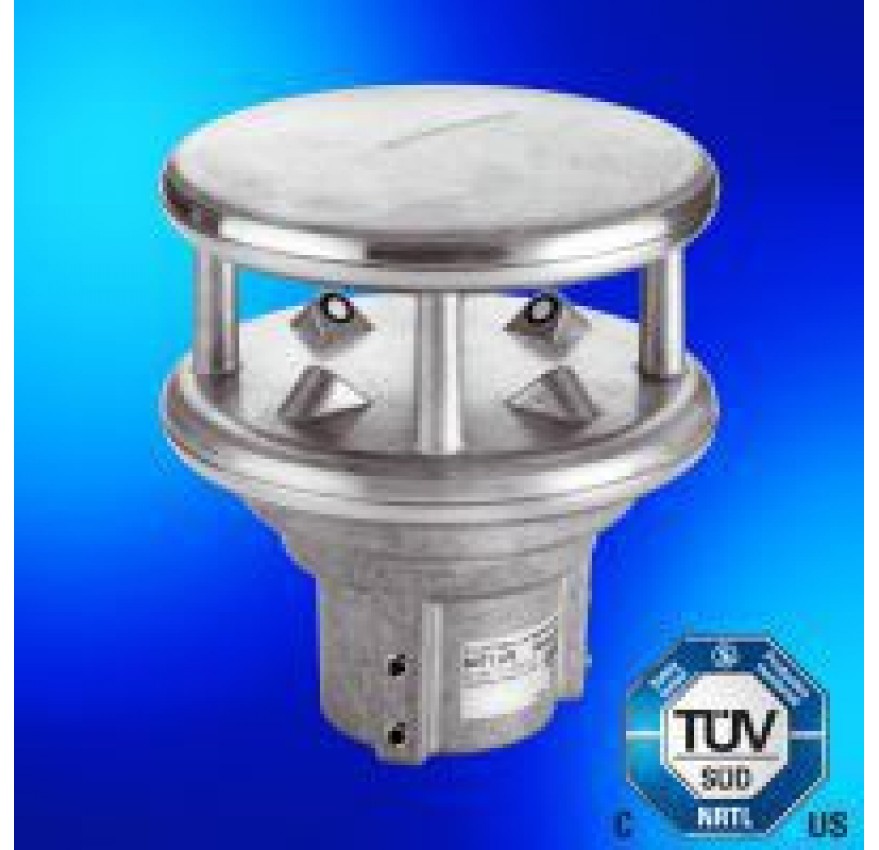

Ventus-UMB for wind energy applications
Extremely precise and maintenancefree measurement of wind speed, wind direction and air pressure as well as calculation of acoustic virtual temperature. The ultrasonic wind sensor is designed without mechanical parts as known with traditional “cups and vane”. The digital or analog output delivers instantaneous, average, min or max value with flexible measuring rate. The VENTUS is heated in case of critical ambient conditions. Made for cold climates! Recommended for: Wind turbines, marine/ships, meteorology and building automation. The following outputs/protocols are available: NMEA, UMB-ASCII, UMB-Binary, MODBUS (ASCII, RTU), SDI-12, 4…20 mA, 0…10V, 0…20 mA, 2…10V, frequency (analog)
Spesification
| Dimensions | Ø approx. 150 mm, height approx. 170 mm |
| Weight | Approx. 1.62 kg |
| Permissible ambient temperature | -40…60°C |
| with heating | 24VDC / 240VA (140VA + 100VA) |
| Bus operation | Up to 32 devices |
| Operating voltage electronics | 12-24VDC / 1.2VA, without heating |
| Electrical connection | 8 pole plug |
| Housing material | Aluminium, seawater-proof |
| Protection type | IP68 |
| Pole diameter | 50mm / 2″ |
| Factory certificate | Yes |
| Data output digital | |
| Interface | RS485 semi-/full duplex, isolated |
| Baud rate | 1200-57600 |
| Measurement rate instantaneous value | 1-10s |
| Measurement Avg (arithmetic, vector), Min, Max | 1…10min |
| Status | Heating, sensor failure |
| Data output analog | |
| Data output analog | Only semi-duplex mode |
| Output signal | 0…20 mA, 4…20 mA, 0…10V, 2…10V, 2…2,000 frequency (instantaneous, avg, min, max) |
| Load | Max. 500 Ohm |
| Resolution | 16 bit |
| Jarring test | According to IEC 60945 |
| Corrosion test | According to MIL-STD-810 Method 509.3 |
| Ice-free test | According to MIL-STD-810F Method 521.2 |
| HALT | Highly Accelerated Life Test |
| Maximum operating height | 3500m |
