Description

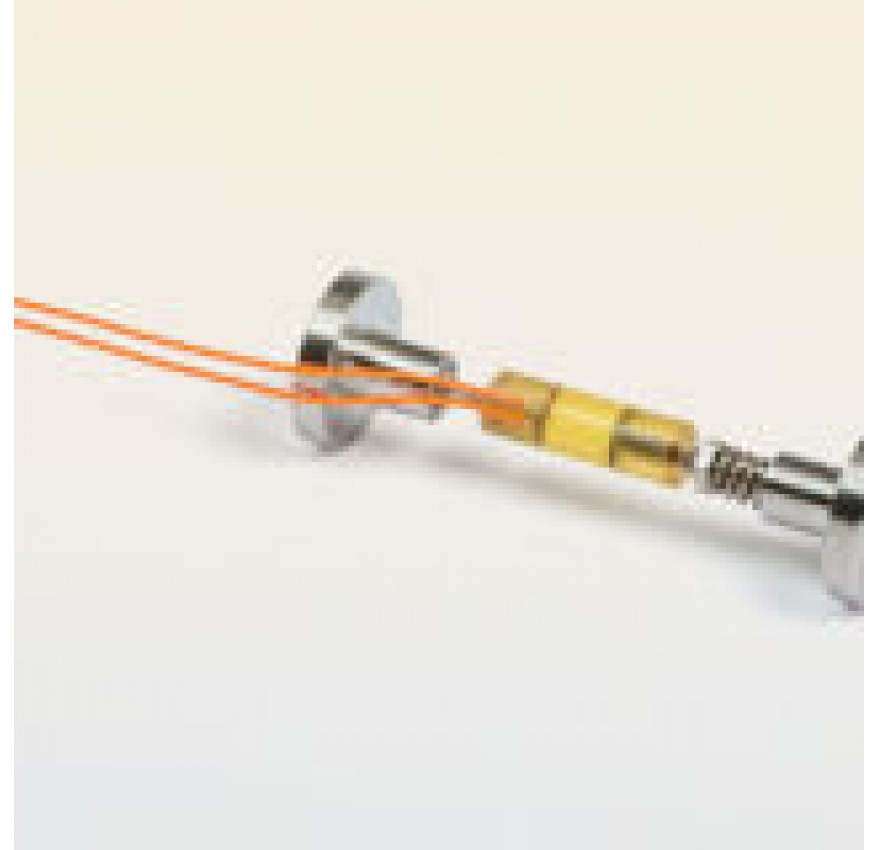

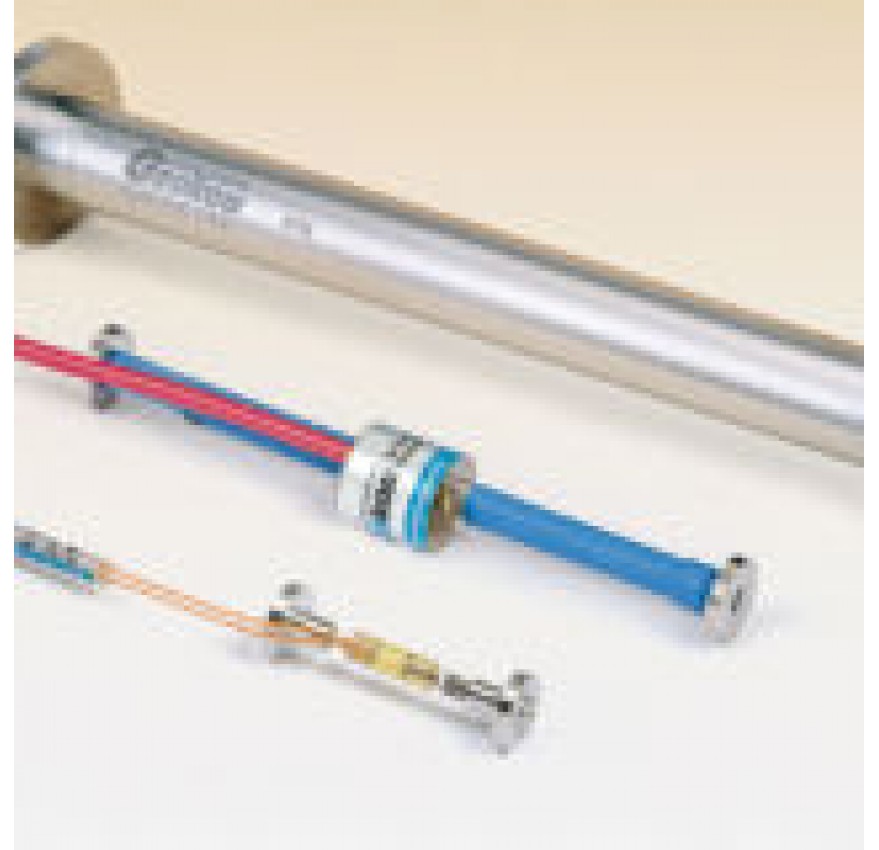

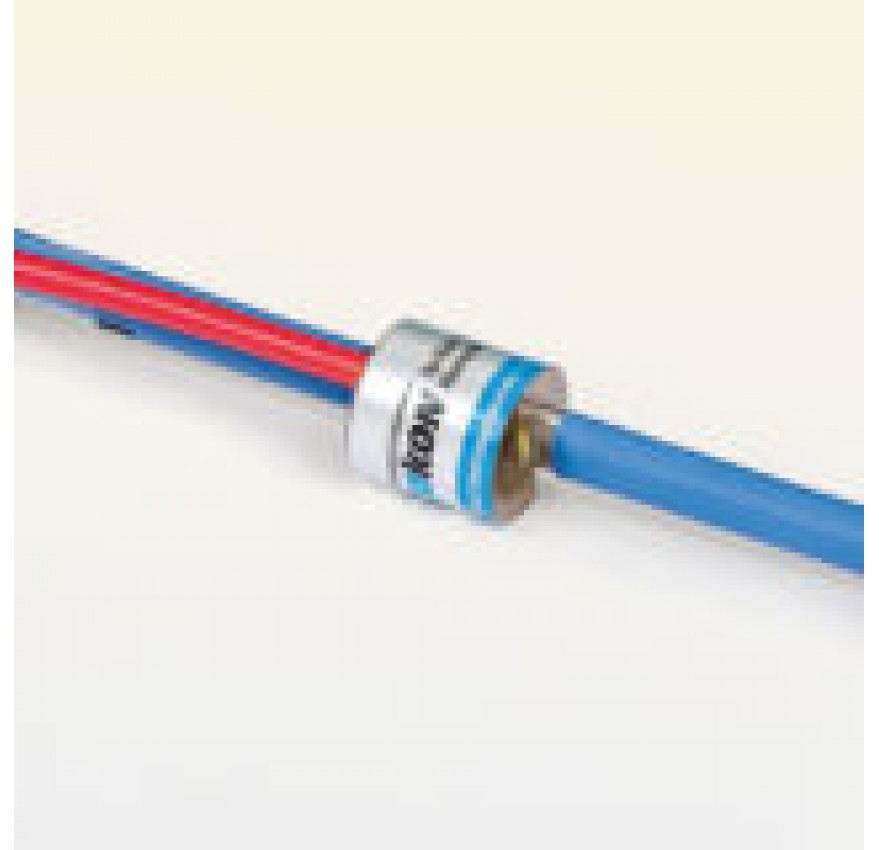

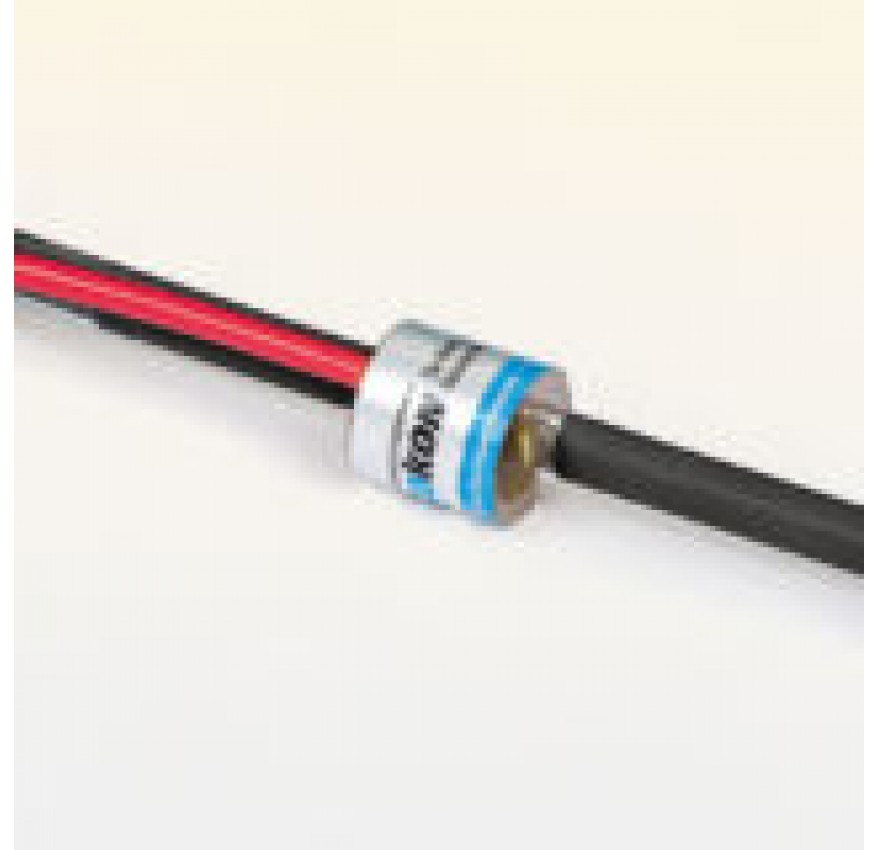

These Strain Gages are designed for direct embedment in concrete. The 4200 (standard model) has a 153 mm gage length and 1 με sensitivity and is commonly used for strain measurements in foundations, piles, bridges, dams, tunnel linings, etc. The 4210 has a 250 mm gage length making it particularly suitable for use in large aggregate concrete. The 4202 is designed for laboratory use and/or where there are space limitations. Low modulus versions, for measuring concrete curing strains, are also available.
Spesification
|
Standard Range¹ |
3,000 µε |
|
Resolution |
4200 | 1.0 µε 4202 | 0.4 µε 4210 | 0.4 µε |
| Accuracy² |
±0.5% F.S. |
| Nonlinearity |
<0.5% F.S. |
| Temperature Range¹ |
−20 °C to +80 °C |
| Active Gage Length |
4200 | 153 mm 4202 | 51 mm 4210 | 250 mm³ |
¹ Other ranges available on request.
² ±0.5% F.S. with standard batch calibration. ±0.1% F.S. with individual calibration. Accuracy established under laboratory conditions.
³ Other lengths available on request.
