VW SOIL EXTENSOMETERS





Inquiry

Description

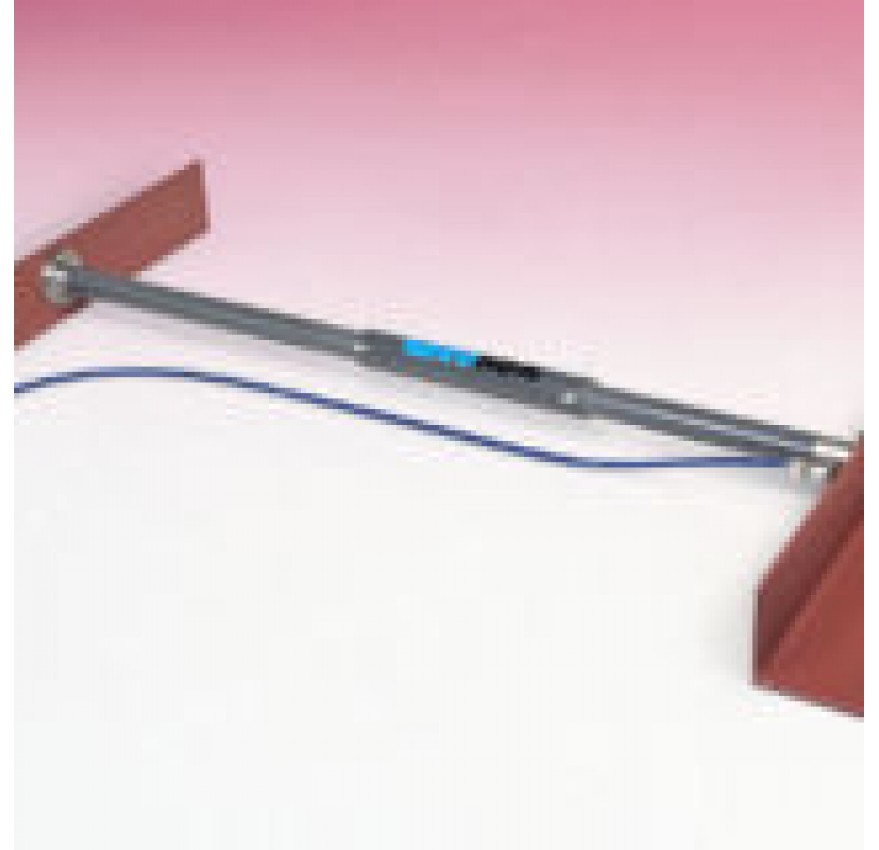

The Model 4435 Soil Extensometer is designed to be installed, in series, to measure horizontal strain and settlements in earthfill or rockfill dams. The 4435 has flanges on either end, which enable a series of extensometers to be bolted together forming long strings of sensors so that complete profiles of deformation or settlement can be monitored.


Spesification

Standard Ranges¹ 25, 50, 100, 150, 300 mm
Resolution 0.025% F.S.
Accuracy² ±1.0% F.S.
Nonlinearity <0.5% F.S.
Temperature Range¹ −20 °C to +80 °C
Minimum Gage Length 610 mm
Diameter 27 mm (pipe), 33 mm (slip coupling), 51 mm (flange)
Flange (L × W × H) 610 × 75 × 75 mm

¹ Other ranges available on request.
² Resolution depends on readout equipment.
