Description
Groundwater Well Cap leverages the power and reliability of the X-Link logger family to deliver a cost-effective, self-contained package to monitor groundwater
Feature

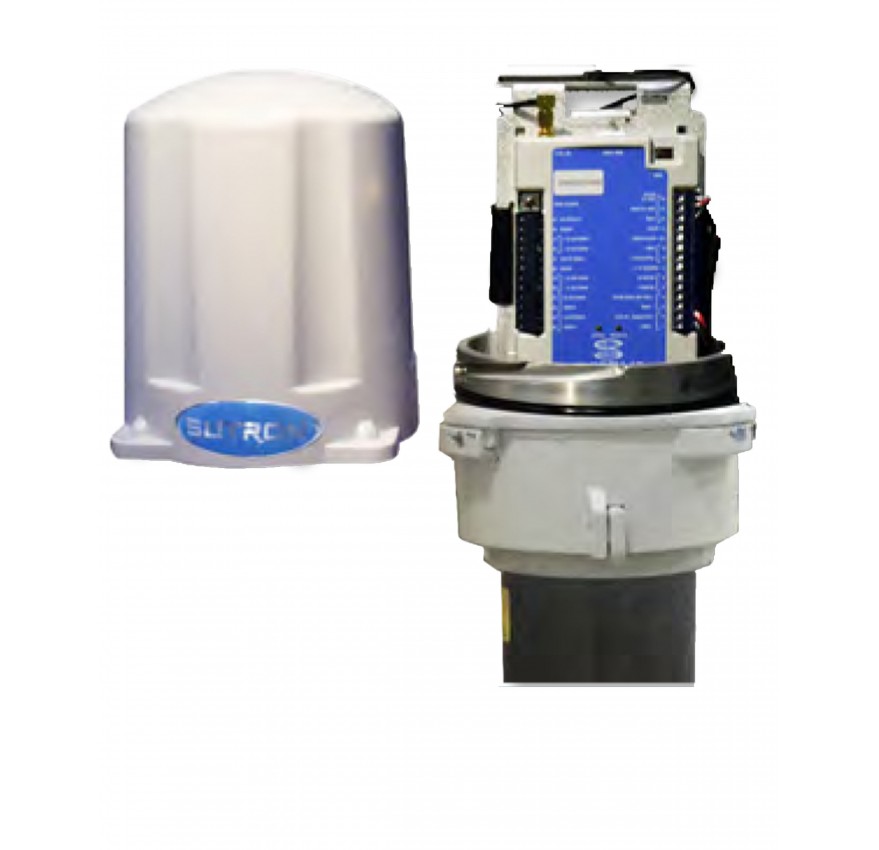

Sutron’s Well Cap Groundwater Monitoring Station makes it easy to automate measurement of groundwater wells. The cap has the following features:
- Tamper-proof packaging
- Capable of measuring sensors over SDI-12, 4-20ma, and RS485
- Low power with integrated 4 Ahr battery for long term reliable operation
- Optional cell modem and dataplans
- Optional Iridium modem and dataplans
- Optional solar panels to reduce battery servicing intervals
- Mounts on NPS 2 (2.375”, 60.33mm OD), 3 (3.5”, 88.9mm OD) or 4 (4.5”, 114.3mm OD) pipe
- 1/4 hasp for customer provided lock
- Built-in Sutron X-Link logger/transmitter
- IP67 housing for battery/electronics/antenna with screwless access.
- Powder coated cast aluminum construction with ABS plastic dome.
- Hinged design provides access to sensors without opening electronics compartment
- Sensor hanger plate with room to insert electronic tapes or other calibration devices.
- Concealed bolts to fasten the cap to the well casing.
- Compatible with a variety of sensors with SDI-12 or analog output.
- Optional solar panel for continuous operation
- DIMENSIONS Diameter: 8” max (20.32cm) Height: 12” (30.48cm) Weight: : 6.7 lb including battery & logger (3.04kg)
Spesification
| Measurement interval | 1 to 24 hours |
| Measurements | 16 supported |
| Analog Input | 2 single-ended 2 differential 1 4-20 mA |
| Range | 0-5 V |
| Resolution | .298 μv |
| Accuracy @25°C | 0.004% max |
| SDI-12 | V1.3 compliant |
| Input voltage | 8-16VDC (10V minimum for SDI-12 sensor support) |
| Current Consumption | 0.5mA standby typical (all sensors unpowered) |
| Temperature | -40°C to +60°C |
| Humidity | 0-95% non-condensing |
| Log Capacity | 240,000 readings, flash memory |
| Dimensions | Dia: 8” max (20.32cm) Height: 12” (30.48cm) |
| Weight | 6.7 lb including battery & logger (3.04kg) |
