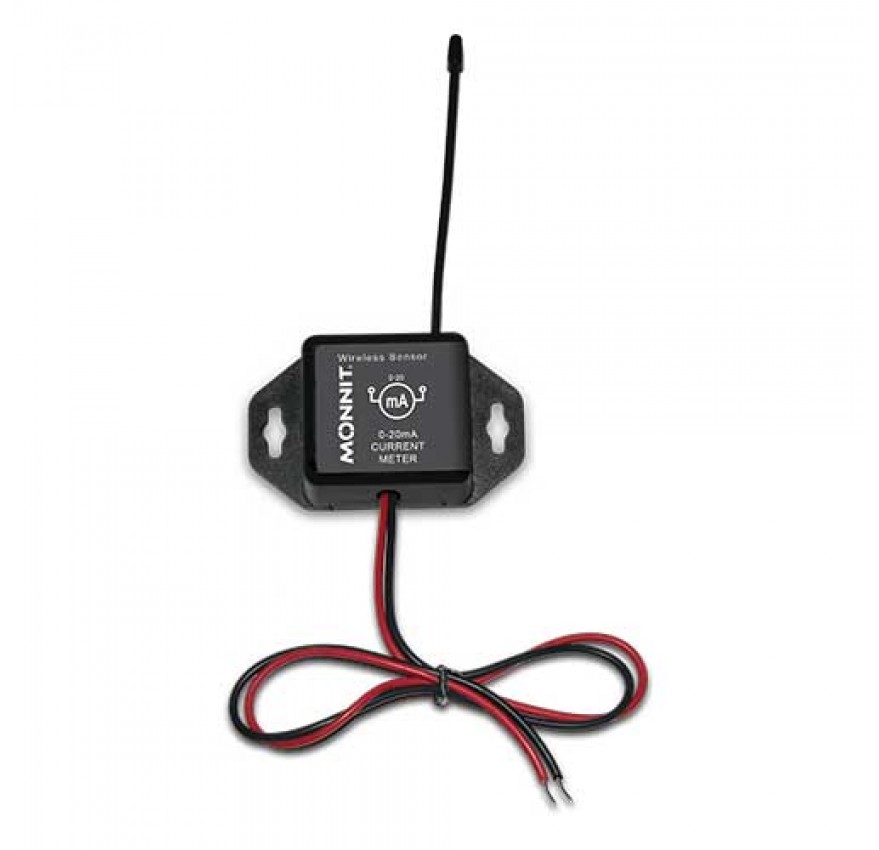

Wireless 0-20 mA Current Meter-Monnit


Hubungi Kami






Description

Product Description

Monnit wireless 0-20mA current meters are capable of measuring the current off another device or sensor, up to 20mA (DC), by connecting the leads of the sensor to the positive and ground terminals of the device being measured. Examples of interfacing devices include, but are not limited to: Current transducers (CTs) with outputs up to 20 mA, pH sensor, dissolved oxygen sensor, pressure sensor, magnetic flow meters, velocity or acceleration sensors, industrial vibration sensors, industrial accelerometers, any kind of sensor that specifies the output is in (mA) within the range of 0 – 20.




Suggested Application Uses for This Sensor

  • Current transducer monitoring
  • pH sensor integration
  • Dissolved oxygen sensor integration
  • Pressure sensor integration
  • Magnetic flow sensor integration

Spesification

0-20 mA Current Meter Specifications



Resolution  ~ 0.01 mA (11-bit single ended)
Accuracy  Uncalibrated: 0.7mA, 0.35mA typical
 Caibrated: 0.05mA
Conversion Time  228 µs
Full Scale Voltage  0 - 20 mA
Weight  3.7 oz.







Coin Cell Specifications



Battery Type Replaceable 3.0V Coin Cell Battery
Dimension 1.775 in x 1.04 in x 0.785 in
Max Operating Temperature 20°C to +60°C (-4° to +140°F)
Optimal Battery Operating Temperature (Coin Cell) +10°C to +50°C (+50°F to +122°F)
Supply Voltage 2.0 - 3.6 V (Single CR2032 Coin Cell Battery)
Device Range 250 - 300 ft. non-line-of-sight device range*
Battery Life At 1 hour heartbeat setting, coin cell battery will typically last ~ 1-2 Years. *
Enclosure Technology Monnit PinchPower™ Wireless Sensor Enclosures
Enclosure Material ABS





900 MHz Specifications



 Operating Frequency                                                900 MHz Operating Frequency
Certifications   Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-RFSC1)
Complies with Industry Canada standards. (IC: 9794A-RFSC1)







wireless 0-20 A current meter
