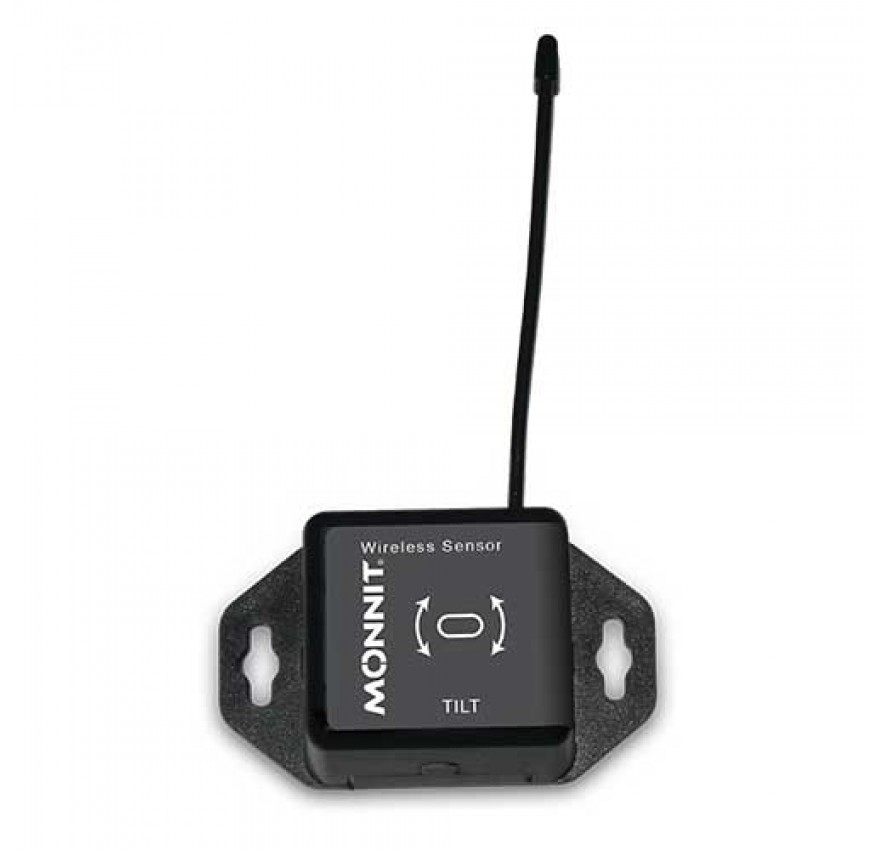

Wireless Accelerometer Tilt Sensor-Monnit

Wireless Accelerometer Tilt Sensor-Monnit



Inquiry

Description

Product Description

Monnit wireless accelerometers can be used in a host of applications where knowing impact, vibration, inclination, etc. is required.

The wireless accelerometer - tilt sensor activates at a set time interval (defined by user) and converts accelerometer measurements to pitch and roll (0 to 180° -> -180° to 0°). The data is displayed in degrees with 0.1° of resolution.



Suggested Application Uses for This Sensor

  • Inclination Monitoring
  • Pitch & Roll




Spesification

Accelerometer Specifications



Sensitivity                                                              4096 count/g
Sensitivity Range  +/-2 G, +/-4 G, +/-8 G
Measurement Accuracy  ±2.5 % (Force: X, Y, Z)
Minimum G Force to Turn On/Wake Up  0.050 g - 0.100 g
Bandwidth for Data Measurement  800 Hz
Measuring Range  0° to 180° ? -180° to -0° (Rotating in positive direction)
Resolution 0.1°
Weight 3.7 oz.





Coin Cell Specifications

Battery    Replaceable 3.0V Coin Cell Battery
Dimension  1.775 in x 1.04 in x 0.785 in
Max Operating Temperature -20°C to +60°C (-4° to +140°F)
Optimal Battery Operating Temperature (Coin Cell) +10°C to +50°C (+50°F to +122°F)
Supply Voltage 2.0 - 3.6 V (Single CR2032 Coin Cell Battery)
Device Range 250 - 300 ft. non-line-of-sight device range*
Battery Life At 1 hour heartbeat setting, coin cell battery will typically last ~ 1-2 Years. **
Enclosure Technology Monnit PinchPower™ Wireless Sensor Enclosures
Enclosure Material ABS



900 MHz Specifications



Operating Frequency                                           900 MHz Operating Frequency
Certifications  Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-RFSC1)
Complies with Industry Canada standards. (IC: 9794A-RFSC1)
