Description
Product Description

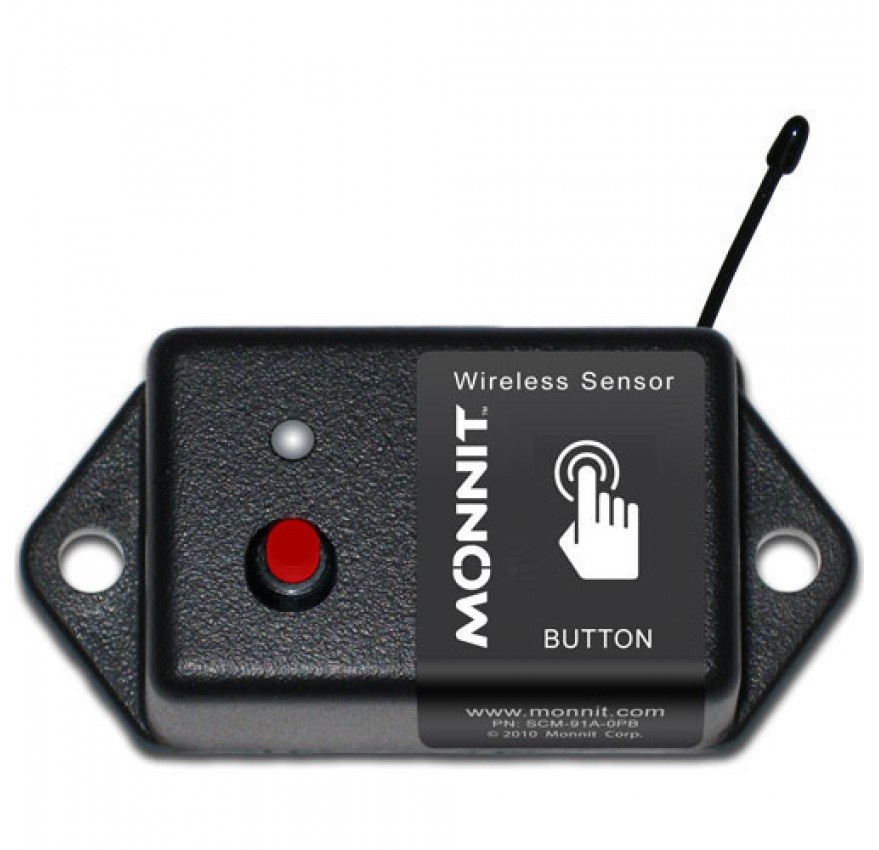

The touch activated wireless button sensor allows a notification signal to be sent when immediate contact is important. This button includes an LED response indicator to confirm that the system has received the alert.
The coin cell version of this sensor has an enclosed battery that cannot be replaced. When the battery life depletes, the sensor should be discarded appropriately. We recommend using the AA battery powered version of this sensor which features replaceable batteries
Suggested Application Uses for This Sensor
- Customer service request button
- Hotel / motel front desk call button
- Bathroom needs cleaning (service call button)
- Access call button
Spesification
Button Specifications (Single Pole Switch)
| Type | Momentary |
| Electrical Life | 10,000,000 cycles |
| Weight | 3.7 oz |
Coin Cell Specifications
| Battery Type | Replaceable 3.0V Coin Cell Battery |
| Dimension | 1.775 in x 1.04 in x 0.785 in |
| Max Operating Temperature | -20°C to +60°C (-4° to +140°F) |
| Optimal Battery Operating Temperature (Coin Cell) | +10°C to +50°C (+50°F to +122°F) |
| Supply Voltage | 2.0 - 3.6 V (Single CR2032 Coin Cell Battery) |
| Device Range | 250 - 300 ft. non-line-of-sight device range |
| Battery Life | At 1 hour heartbeat setting, coin cell battery will typically last ~ 1-2 Years |
| Enclosure Technology | Monnit PinchPower™ Wireless Sensor Enclosures |
| Enclosure Material | ABS |
900 MHz Specifications
| Operating Frequency | 900 MHz Operating Frequency |
| Certifications | Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-RFSC1) Complies with Industry Canada standards. (IC: 9794A-RFSC1) |
