Description
Product Description

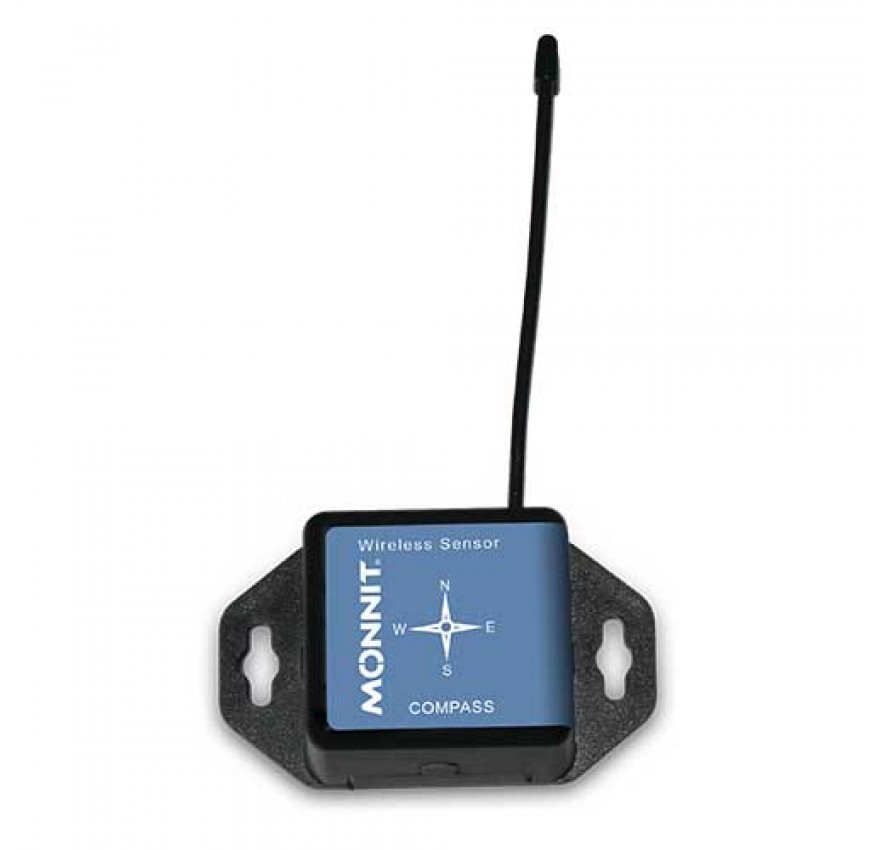

Monnit wireless compass sensors use a highly sensitive 3 axis digital compass to return the orientation of the device in regards to magnetic north. Great for tracking directional behavior and positioning. User customization allows you to set alerts via SMS text or email if criteria are met or exceeded.
Suggested Application Uses for This Sensor
- Digital compass
- Device orientation
- Directional movement
Spesification
Digital Compass Specifications
| User Calibrated Accuracy | +/- 4° for calibrated North and East Headings (both North and East headings must be calibrated for specified accuracy) |
| Magnetic Dynamic Range | ±1.3 Gauss |
| Measurement Period | 106 msec typ |
| Gain Tolerance | -40 to +125°C (ambient, unbiased) |
| Weight | 0.7 oz |
Coin Cell Specifications
| Battery Type | Replaceable 3.0V Coin Cell Battery |
| Dimension | 1.775 in x 1.04 in x 0.785 in |
| Max Operating Temperature | -20°C to +60°C (-4° to +140°F |
| Optimal Battery Operating Temperature (Coin Cell) | +10°C to +50°C (+50°F to +122°F) |
| Supply Voltage | 2.0 - 3.6 V (Single CR2032 Coin Cell Battery) |
| Device Range | 250 - 300 ft. non-line-of-sight device range |
| Battery Life | At 1 hour heartbeat setting, coin cell battery will typically last ~ 1-2 Years |
| Enclosure Technology | Monnit PinchPower™ Wireless Sensor Enclosures |
| Enclosure Material | ABS |
900 MHz Specifications
| Operating Frequency | 900 MHz Operating Frequency |
| Certifications | Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-RFSC1) Complies with Industry Canada standards. (IC: 9794A-RFSC1) |
