Description
Product Description

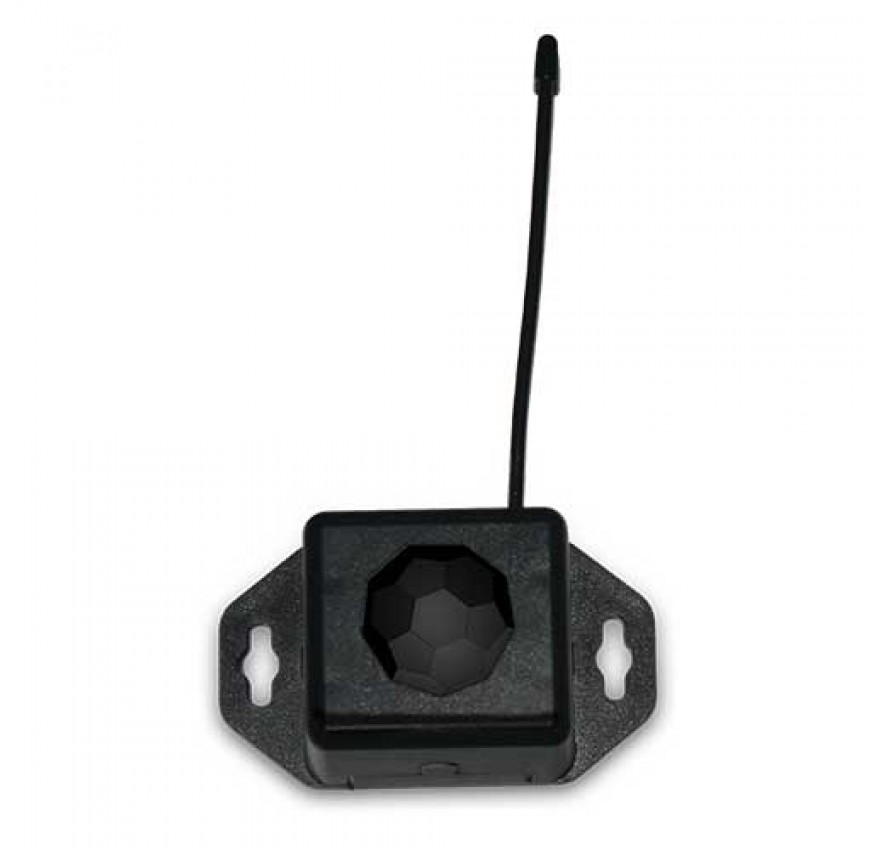

Monnit wireless motion sensors use an infrared sensing technology to accurately detect movements made by people/animals within 16.4 ft (5 m) range. User customization allows you to receive notifications by SMS text or email the instant motion is detected.
Suggested Application Uses for This Sensor
- Area access monitoring
- Detect when people enter a room
Spesification
Infrared Motion Sensing Element Specifications
Sensing Range | 16.4 ft. (5 m) |
Current Consumption | Type: 170 µA Max: 300 µA |
Wake-up Time | 30 Seconds |
Weight | 3.7 oz. |
Coin Cell Specifications
Battery Type | Replaceable 3.0V Coin Cell Battery | |
Dimension |
|
|
Max Operating Temperature | -20°C to +60°C (-4° to +140°F) | |
Optimal Battery Operating Temperature (Coin Cell) | +10°C to +50°C (+50°F to +122°F) | |
Supply Voltage | 2.0 - 3.6 V (Single CR2032 Coin Cell Battery) | |
Device Range | 250 - 300 ft. non-line-of-sight device range* | |
Battery Life | At 1 hour heartbeat setting, coin cell battery will typically last ~ 1-2 Years | |
Enclosure Technology | Monnit PinchPower™ Wireless Sensor Enclosures | |
Enclosure Material | ABS |
900 MHz Specifications
Operating Frequency | 900 MHz Operating Frequency |
Certifications | Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-RFSC1) Complies with Industry Canada standards. (IC: 9794A-RFSC1) |
