Description
Product Description

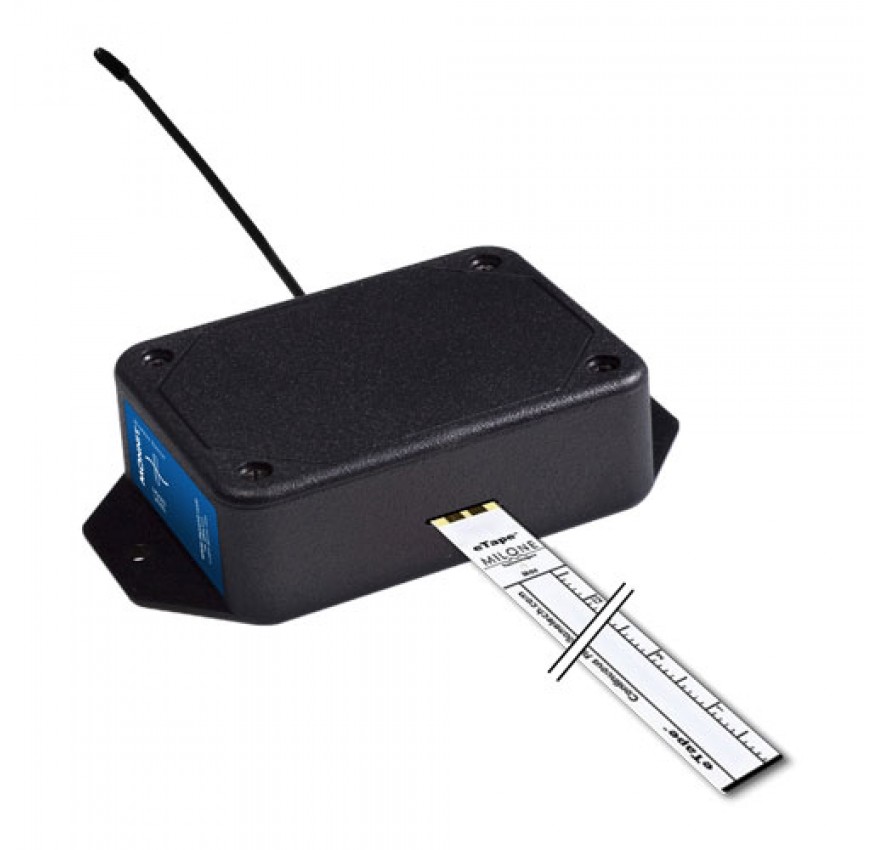

Monnit wireless liquid level sensors use a solid-state, resistance sensitive ribbon sensor to measure the level of a liquid in a container. Why deal with mechanical floats that get stuck and corrode in the fluid you are measuring? Get accurate results without the hassle. User customization allows you to set the frequency of sensor readings and the ability to set thresholds for notifications and alerts from the iMonnit online sensor monitoring system.
Suggested Application Uses for This Sensor
- Monitor container levels
- Track non-corrosive fluid levels
Spesification
Flex Sensor Element Specifications
| Sensor Length | 8 in. = 8.1” (205.74mm) 24 in. = 24.1” (612.14mm) |
| Sensor Width | 1.0” (25.4mm) |
| Sensor Thickness | 0.015” (0.381mm) |
| Active Sensor Length | 8 in. = 8.6” (218.4mm) 24 in. = 22.6” (218.4mm) |
| Resolution | 1/32 inch (0.794mm) |
| Actuation Depth | Nominal 1 inch (25.4mm) |
| Sensor Material | Polyethylene Terephthalate (PET) |
| Weight | 3.7 oz. |
AA Specifications
| Battery Type | 2 Replaceable AA 1.5 V Batteries |
| Dimension | 4.375 in x 2.470 in x 1.12 in |
| Sensing Element | 2.0 - 3.6 V (2 x AA 1.5V Batteries or Optional Power Supply) |
| Device Range | 250 - 300 ft. non-line-of-sight device range |
| Battery Life | At 1 hour heartbeat setting, included AA batteries will typically last 3-4 Years |
| Max Operating Temperature Using AA Alkaline | -18°C to 55°C (0°F to 130°F) |
| Max Operating Temperature Using AA Lithium | -40°C to 60°C (-40°F to 140°F) |
| Optimal Battery Operating Temperature | +10°C to +50°C (+50°F to +122°F) |
| Enclosure Material | ABS |
900 MHz Specifications
| Operating Frequency | 900 MHz Operating Frequency |
| Certifications | Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-RFSC1) Complies with Industry Canada standards. (IC: 9794A-RFSC1) |
