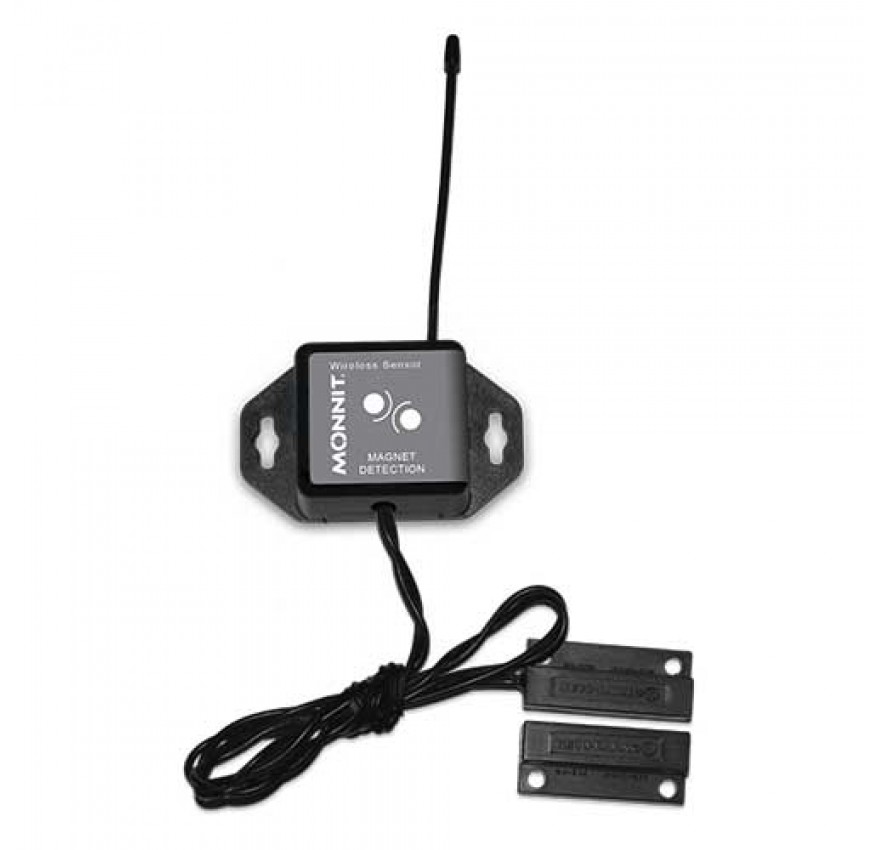

Wireless Magnet Detection Sensors-Monnit

Wireless Magnet Detection Sensors-Monnit



Inquiry

Description

Product Description

Monnit wireless magnet detection sensors can be used to detect the presence of a magnetic source. Place a magnet strip on a production line to measure movement and placement. Alerts can be setup to notify a user by SMS text, email or voice call if the magnet is present or not.




Suggested Application Uses for This Sensor

  • Production line position tracking
  • Door and window monitoring

Spesification

Magnet Sensor Specifications



Contact Rating                                          SPST, gold under -plating with Deactivated Rhodium outer-platingSPST, gold under -plating with Deactivated Rhodium outer-plating
Switch Cycles 50 million
Operation Gap Up to 3/4 inch
Wire Leads 22 gauge / 13.5 in length (± 1.5 in)
Magnet Alnico
Magnet Case Construction Weatherproof, high-impact ABS plastic with self-adhesive backing
Magnet Temperature Range -15°F to 160°F (-25°C to 70°C)
Weight 3.8 oz





Coin Cell Specifications



Battery Type  Replaceable 3.0V Coin Cell Batter
Dimension 1.775 in x 1.04 in x 0.785 in
Max Operating Temperature -20°C to +60°C (-4° to +140°F)
Optimal Battery Operating Temperature (Coin Cell) +10°C to +50°C (+50°F to +122°F)
Supply Voltage 2.0 - 3.6 V (Single CR2032 Coin Cell Battery)
Device Range 250 - 300 ft. non-line-of-sight device range*
Battery Life At 1 hour heartbeat setting, coin cell battery will typically last ~ 1-2 Years.
Enclosure Technology Monnit PinchPower™ Wireless Sensor Enclosures
Enclosure Material ABS



900 MHz Specifications



Operating Frequency  900 MHz Operating Frequency
Certifications Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-RFSC1)
Complies with Industry Canada standards. (IC: 9794A-RFSC1)
