Description
Product Description

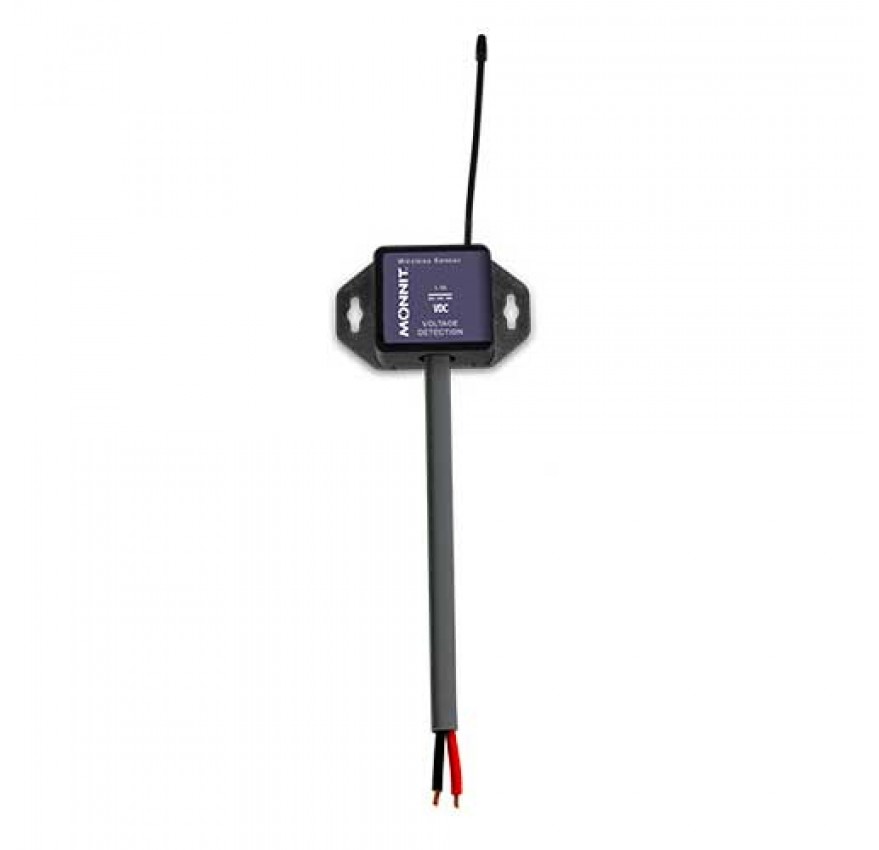

The Monnit Voltage Detector - 50 VDC detects the presence or absence of electricity. It is intended for use on battery or other DC sources, up to 50 Volts. Not intended for use with AC Voltages. It is perfect for batteries, adapters, solar equipment, vehicles or machinery, and any other electrical appliance monitoring. The sensor triggers on voltage presence to voltage Absence and vice versa. The data is displayed as "Voltage Detected" or "No Voltage".
Suggested Application Uses for This Sensor
- Appliance monitoring
- Sprinkler system monitoring
- HVAC system monitoring
- Line power monitoring
- Power coupling monitoring
- Power supply monitoring
- Sump pump monitoring
Spesification
Voltage Detection Sensor Specifications
| Maximum Rated Input Voltage | 50.0 Volts |
| Voltage Detection Threshold | Present above ~.47 Volt, Absent below ~.47 Volt |
| Trigger | Transmits data upon state change |
| Open Circuit Reading | Voltage Absent |
| Lead Wire Length | 2 Wires, 1 ft. ( 12 in.), Red (+), Black (-), 18 AWG (Custom lengths available upon request) |
| Weight | 1.0 oz. |
Coin Cell Specifications
| Battery Type | Replaceable 3.0V Coin Cell Battery |
| Dimension | 1.775 in x 1.04 in x 0.785 in |
| Max Operating Temperature | -20°C to +60°C (-4° to +140°F) |
| Optimal Battery Operating Temperature (Coin Cell) | +10°C to +50°C (+50°F to +122°F) |
| Supply Voltage | 2.0 - 3.6 V (Single CR2032 Coin Cell Battery) |
| Device Range | 250 - 300 ft. non-line-of-sight device range* |
| Battery Life | At 1 hour heartbeat setting, coin cell battery will typically last ~ 1-2 Years. ** |
| Enclosure Technology | Monnit PinchPower™ Wireless Sensor Enclosures |
| Enclosure Materia | ABS |
900 MHz Specifications
| Operating Frequency | 900 MHz Operating Frequency |
| Certifications | Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-RFSC1) Complies with Industry Canada standards. (IC: 9794A-RFSC1) |
