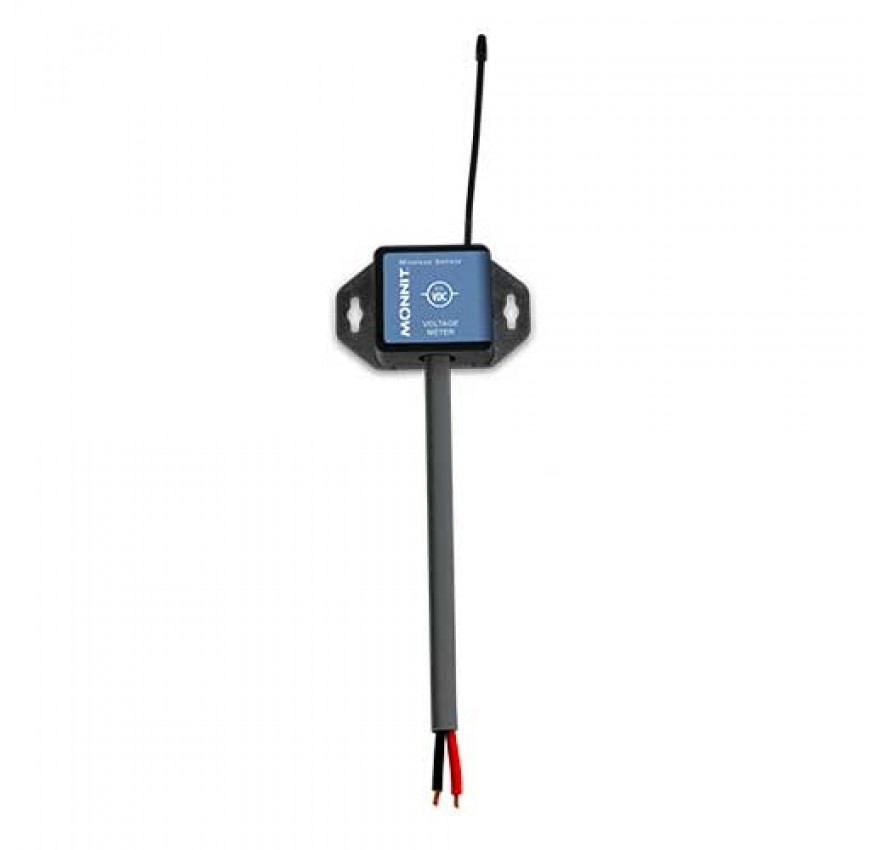

Wireless Voltage Meters-Monnit



Inquiry

Description

Product Description

Monnit wireless voltage meters are capable of measuring the voltage off another device, battery, or sensor. This sensor is capable of measuring voltage up to 5 VDC by connecting the leads on the sensor to the positive and ground terminals of the device being measured.

Examples of interfacing devices include, but are not limited to: Strain Gauge, Pressure Transducer, RTD, Thermistor, or Thermocouple, Piezo Electric sensors, Photoresistor, Industrial Accelerometer, any kind of variable resistor, any kind of sensor that outputs a voltage, etc. If the device being measured is passive, the user must supply their own excitation voltage, as the Monnit sensor is really just a “voltage observer”. Cannot be used for AC voltage measurement.




Suggested Application Uses for This Sensor

  • Battery Health
  • Voltage Measurement
  • Transducer Measurement
  • Machinery
  • Electrical Motors





Spesification

Voltage Meter Specifications

Voltage Range                    0 – 5 Volts DC
Resolution ~3 mV
Accuracy +/- 3.0% FS
User Calibrated Accuracy +/- 0.5% FS
Open Circuit Voltage ~0.00 Volts
Maximum Rated Input Voltage 10 Volts
Lead Wire Length 2 Wires, 1 ft. ( 12 in.), Red (+), Black (-), 18 AWG (Custom lengths available upon request)
Weight  4.0 oz.





Coin Cell Specifications



Battery Type Replaceable 3.0V Coin Cell Battery
Dimension 1.775 in x 1.04 in x 0.785 in
Max Operating Temperature -20°C to +60°C (-4° to +140°F)
Optimal Battery Operating Temperature (Coin Cell)  +10°C to +50°C (+50°F to +122°F)
Supply Voltage 2.0 - 3.6 V (Single CR2032 Coin Cell Battery)
Supply Voltage 250 - 300 ft. non-line-of-sight device range*
Battery Life At 1 hour heartbeat setting, coin cell battery will typically last ~ 1-2 Years. **
Enclosure Technology Monnit PinchPower™ Wireless Sensor Enclosures
Enclosure Material ABS



900 MHz Specifications

 Operating Frequency                                             900 MHz Operating Frequency
Certifications
Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-RFSC1)
Complies with Industry Canada standards. (IC: 9794A-RFSC1)
