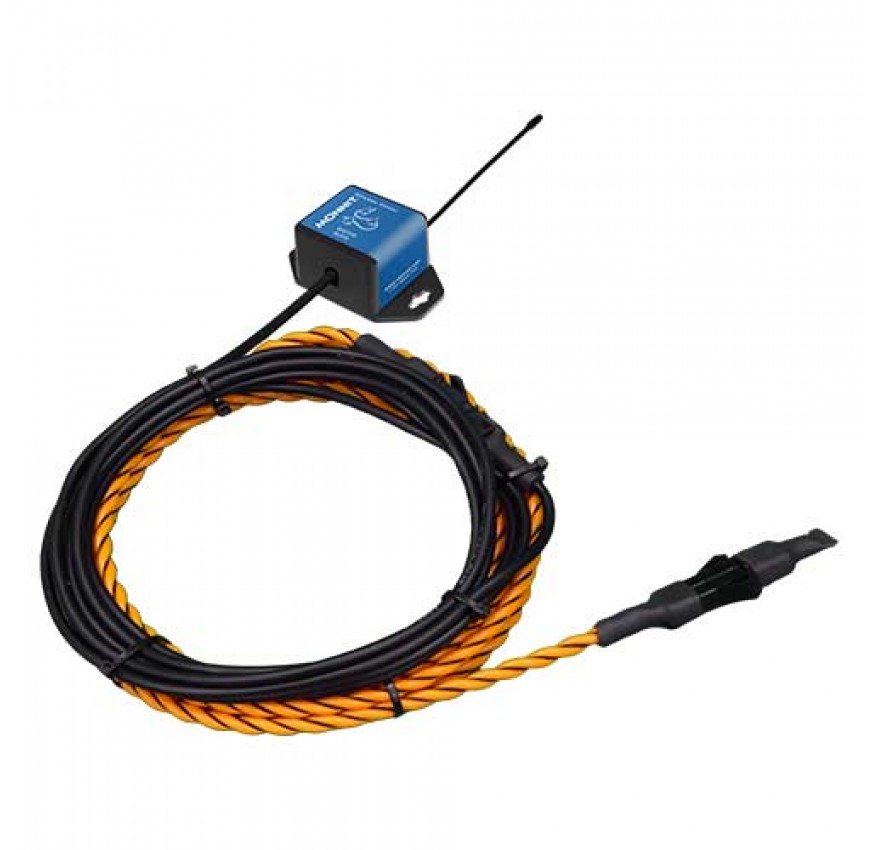

Wireless Water Rope Sensors-Monnit



Inquiry

Description

Product Description

The Monnit Wireless Water Rope Sensor detects conductive liquids anywhere along the length of the detection rope by using two wires covered with conducting polymer. When water or conductive liquid contacts the rope, the sensor will immediately turn on the RF radio and transmit the data to the wireless gateway and iMonnit Online Sensor Monitoring and Notification System, allowing the user to immediately receive an alert by SMS text, email or voice call. The sensor rope dries quickly allowing the sensor to reset for next use. The sensor comes with an initial 10 foot section of water detection rope and can be expanded up to 100 feet by simply clicking additional 10 foot sections of detection rope together.



Suggested Application Uses for This Sensor

  • Data center and server room water monitoring.
  • Document retention center monitoring.
  • Basement / crawl space water monitoring.
  • Plumbing leak detection.
  • Storage monitoring.




Spesification

Water Detect Rope Specifications



Material PE + alloy lead
Weight 30g/meter
Pull Force Limit 60kg
Fire Resistance Second pressure plenum cable
Cable Diameter 5.5mm
Core Resistance 3ohm/100 meters
Maximum Exposed Temperature 75°C (167°F)
Cable Length 10 ft. (120 in.) included (expandable to 100 ft.)



Coin Cell Specifications

Battery Type Replaceable 3.0V Coin Cell Battery
Dimension 1.775 in x 1.04 in x 0.785 in
Max Operating Temperature -20°C to +60°C (-4° to +140°F)
Optimal Battery Operating Temperature (Coin Cell) +10°C to +50°C (+50°F to +122°F)
Supply Voltage 2.0 - 3.6 V (Single CR2032 Coin Cell Battery)
Device Range 250 - 300 ft. non-line-of-sight device range*
Battery Life At 1 hour heartbeat setting, coin cell battery will typically last ~ 1-2 Years. **
Enclosure Technology Monnit PinchPower™ Wireless Sensor Enclosures
Enclosure Material ABS



900 MHz Specifications



Operating Frequency                                                                         900 MHz Operating Frequency
Certifications Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-RFSC1)
Complies with Industry Canada standards. (IC: 9794A-RFSC1)



wireless water rope sensors
