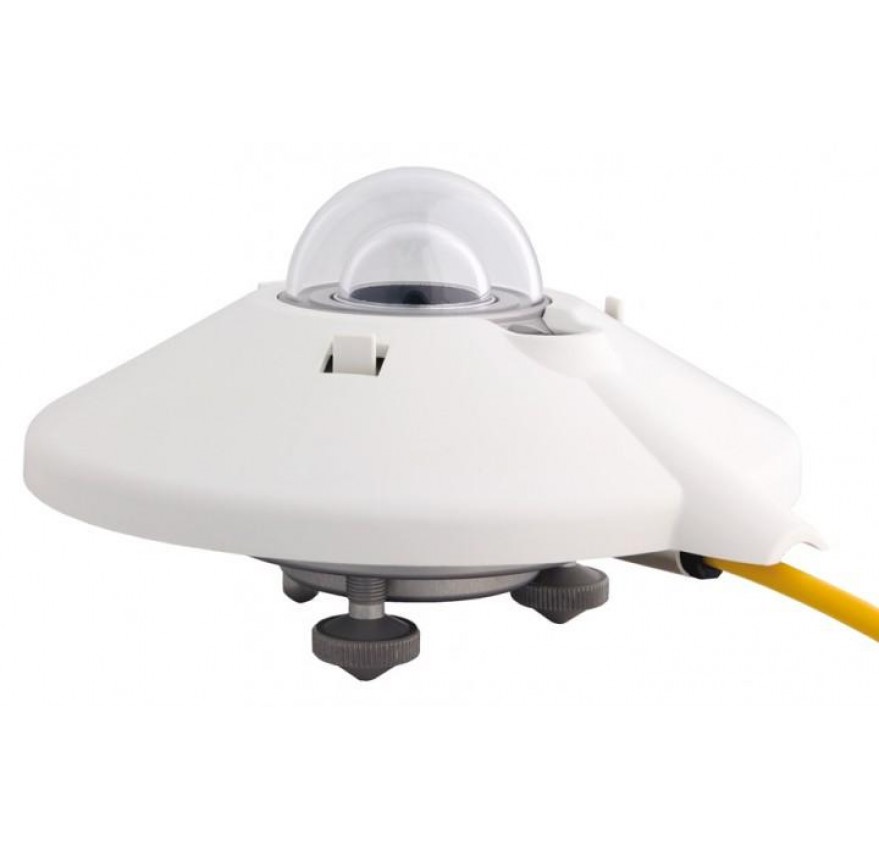

1st Class Pyranometer

1st Class Pyranometer



Order

Description

Fully compliant with all ISO-9060 specification criteria & supplied standard with a WRR (World Radiometric Reference) traceable calibration certificate, the 5600-0601 is a First Class Pyranometer as defined by the World Meteorological Organization. It is suitable for the measurement of solar irradiance on a plane surface (W/m2). The pyranometer incorporates a 64-thermo-couple sensor housed under two concentric fitting Schott K5 glass domes. A white screen prevents the body of the pyranometer from heating up. It is supplied with an integrated built in bubble level and feet for accurate leveling. A drying cartridge keeps the interior free from humidity.


Feature

For routine global solar radiation measurement research on a plane/level surface


Spesification

SPECIFICATIONS
Subject to change without notice
Spectral Range 285 – 2800 nm (50% points)
Sensitivity 5 – 20 μV/W/m2
Impedance 20 – 200 Ω
Response Time 95% < 18s
Response Time 63% < 6s
Non-Linearity (100 to 1000 W/m²) < 1%
Tilt Response (0° to 90° at 1000 W/m²) < 1%
Operating Temp -40°C to 80°C
Temperature Response < 4% (-10°C to +40°C)
Maximum Irradiance : 2000 W/m2
Directional Response (up to 80° with 1000 W/m² beam) < 20 W/m2
Zero Offsets :
(a) thermal radiation : (at 200W/m²) < 12 W/m²
(b) temperature change : (5 K/h) < 4 W/m²
Cable Length : 10 m
Expected Accuracy : ±5% for daily sums
Dimensions :Weight 1.874 lb. (0.85kg)
ORDERING : 5600-0601 Pyranometer, WMO First Class
