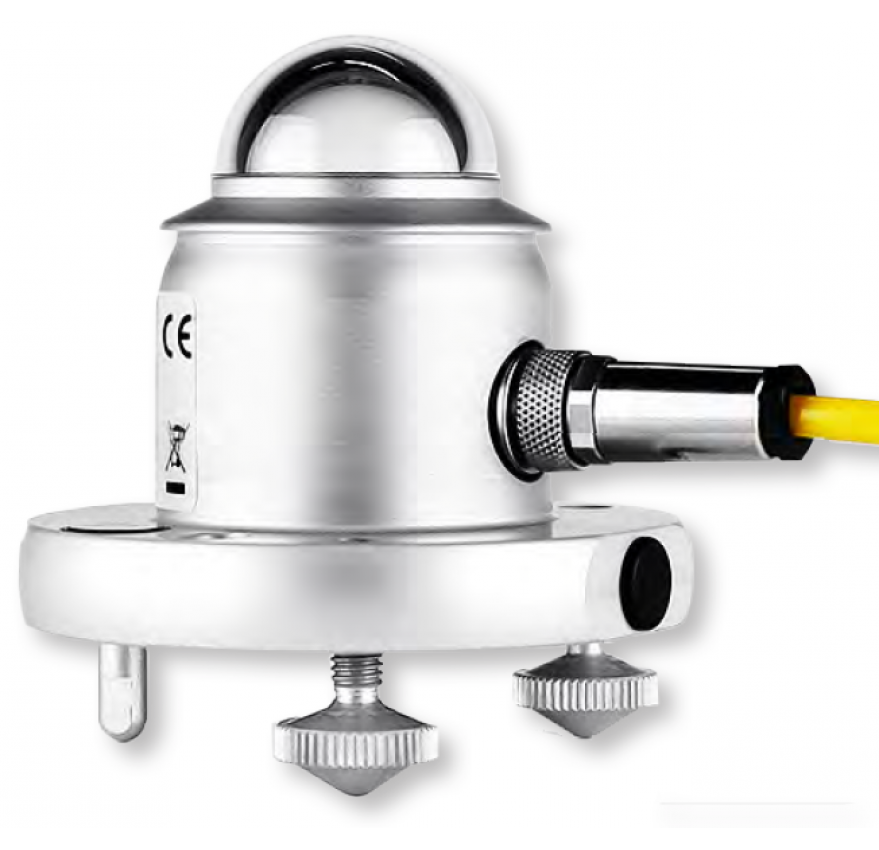

2nd Class Pyranometer

2nd Class Pyranometer



Order

Description

The 5600-0605 is a second class pyranometer (as defined by the World Meteorological Organization, WMO); compliant with all ISO 9060 performance criteria.


Feature

Economical & Reliable for Routine Global Radiation Measurements

  • Ruggedized, weather proof construction
  • Sealed and potted low maintenance design
  • Excellent long term stability of sensitivity
  • Good cosine/directional response
  • Built-in lifetime dessicant drying cartridge!!!
  • Thermopile sensor (not silicon cell)
  • Flat spectral sensitivity
  • Temperature compensation
  • Output is a millivolt signal.
  • Each sensor has its own calibration certificate.

Spesification

  • Spectral Range
305 – 2800 nm (50% points)
  • Sensitivity
10 – 35µV/W/m2
  • Impedance
79 – 200 Ohms
  • Response Time
95% in 18 seconds
  • Non-linearity
<± 2.5% (
  • Operating Temp
-40 to +80°C
  • Temperature Dependence
± 6% (-10 to +40°C)
  • Expected Accuracy
± 10% for daily sums
  • Tilt Error
<± 2.5% (
  • Weight
343 grams
  • Maximum Irradiance
2000 W/m2
  • DIrectional Error
<± 25 W/m2 (Beam 1000 W/m2)
  • Cable Length
5m
