3-Axis Ultrasonic Anemometer

3-Axis Ultrasonic Anemometer



Order

Description

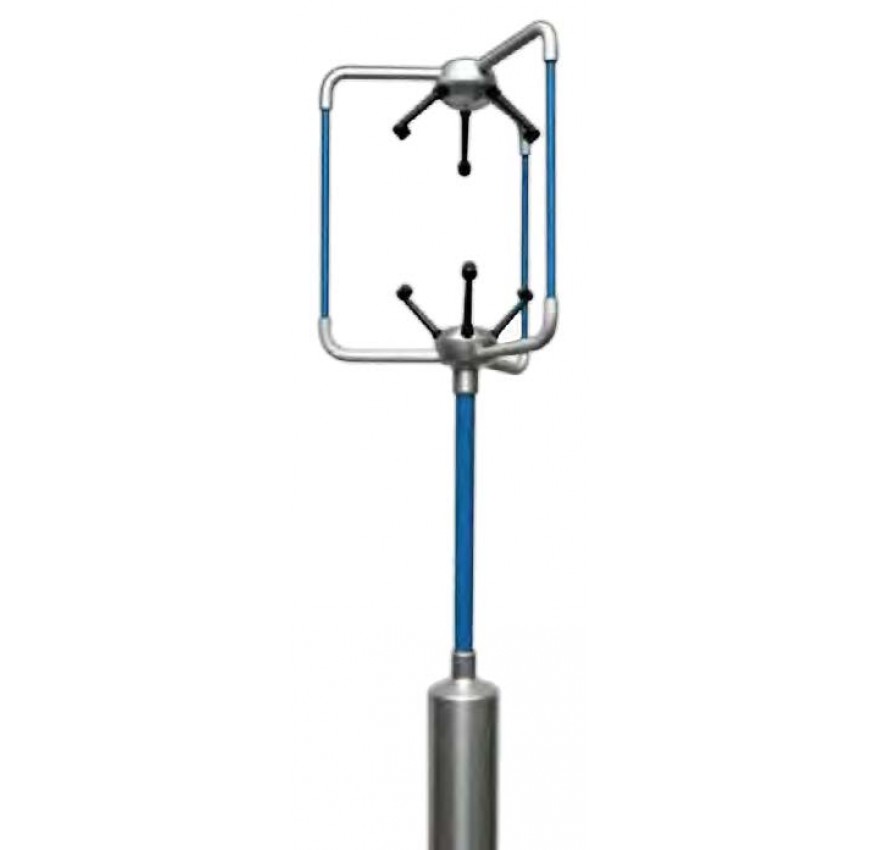

A precision three-axis wind measurement anemometer, the WindMaster monitors wind speeds of 0 45 m/s and provides sonic temperature, speed of sound and U, V & W vector outputs at 20Hz (32Hz optional).


Feature

  • Aluminum/carbon fiber construction
  • Ideal for the study of turbulent flows, surface energy balance and scalar fluxes
  • Calibrated with a wind tunnel test to provide optimum performance
  • Ideally suited to the measurement of air turbulence around bridges, buildings, wind turbine sites, building ventilation control systems, meteorological and flux measurement sites.
  • 0 to 3590 wind direction
  • 0-45m/s wind speed
  • Sonic Temperature Output
  • Precision 3-axis sonic anemometer
  • U, V, W vector outputs
  • 20Hz output rate
  • Optional Custom Calibration

Spesification

  • WIND SPEED

  • Range
0 – 45 m/s
  • Resolution
0.01 m/s
  • Accuracy*
<1.5% RMS @12 m/s
  • Accuracy*
<1% RMS @12 m/s (Custom)
  • DIRECTION

  • Range
0 – 359°
  • Resolution
0.1°
  • Accuracy*
2° @12 m/s
  • Accuracy*
0.5° @12 m/s (Custom)
  • SONIC TEMPERATURE

  • Range
-40°C to +70°C
  • Resolution
0.01°C
  • SPEED OF SOUND

  • Range
300-370 m/s
  • Resolution
0.01 m/s
  • Accuracy
< ±0.5% @ 20°C
  • MEASUREMENT

  • Internal sample rate
20 Hz or 32 Hz
  • Output Parameters
1, 2, 4, 8, 10, 16, 20 & 32 (Option) Hz
  • Units of Measure
m/s, mph, kph, knots, ft/min
  • Formats
UVW, Polar
  • Averaging
Flexible 0-3600 s
  • *Accuracy spec applies for wind speed and for wind incidence up ±30° from the horizontal

  • DIGITAL OUTPUT

  • Communication
RS232, 422, 485, Binary
  • Baud Rates
2400 – 57600
  • Format
ASCII
  • ANALOGUE OUTPUTS – OPTIONAL

  • Resolution
12 bits or 14 bits 4 channels available
  • Selectable Range
User selectable full scale wind speed
  • Output type
0-20mA, 4-20mA, 0-5 V, ±2.5 V, ±5 V
  • ANALOGUE INPUTS – OPTIONAL

  • Resolution
12 bits or 14 bits Up to 4 single ended or 2 differential
  • Input Type
±5 V
  • POWER REQUIREMENT

  • Anemometer
9-30 VDC (55mA @ 12 VDC)
  • MECHANICAL

  • Weight
1.0 kg
  • Size
750mm x 240mm
  • ENVIRONMENTAL

  • Protection Class
IP65
  • Operating Temp
-40°C to +70°C
  • Humidity
< 5% to 100% RH
  • Precipitation
300mm/hr
  • EMC
BS EN 61000 – 6 – 3 (Emissions)
  BS EN 61000 – 6 – 2 (Immunity)
