Accelerometer Sensor A1512

Hubungi Kami




Description

Akselerometer A1512 telah dirancang untuk pengujian struktural dinamis dalam kondisi medan yang berat. Sensor MEMS terintegrasi yang akurat, kokoh, dan sepenuhnya tahan cuaca ini dapat digunakan dari aplikasi frekuensi nol hingga menengah yang membutuhkan kebisingan rendah dan stabilitas jangka panjang yang andal.

Tersedia dalam konfigurasi uniaksial, biaksial, dan triaksial dengan pilihan sensitivitas ±2g, ±5g, ±10g, ±25g, dan ±50g. Sensor dibuat sesuai pesanan dengan pilihan panjang kabel. Versi yang diperkuat, A2512, juga tersedia untuk panjang kabel di atas 300 kaki (90 meter).

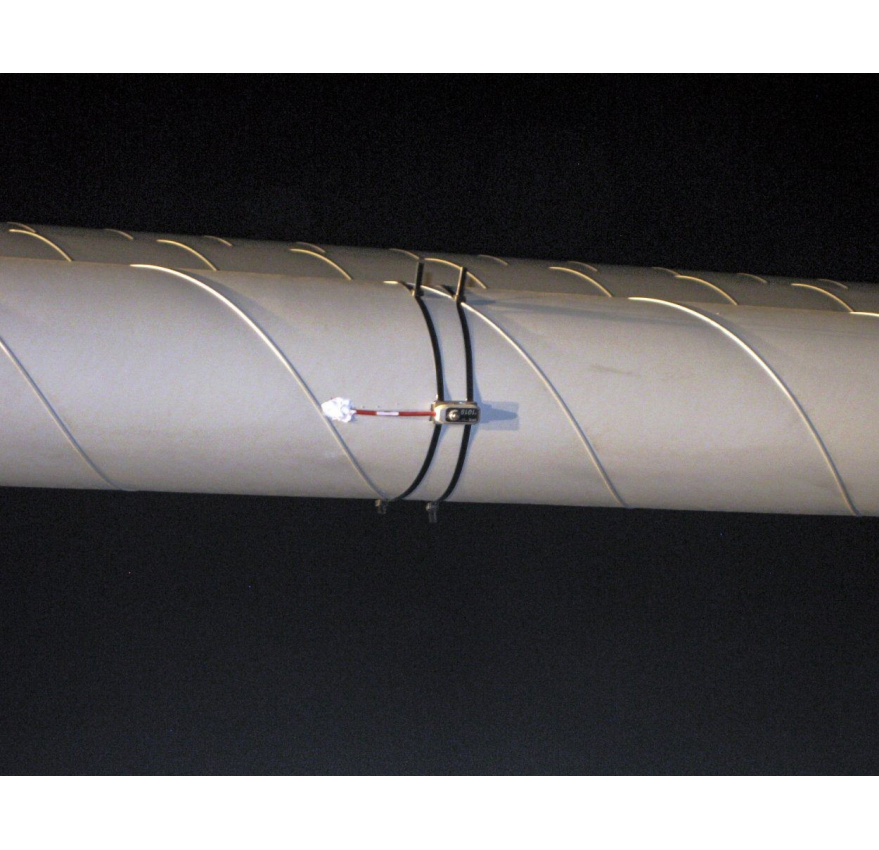

Setiap model dapat dipasang dengan sangat cepat dan aman melalui penggunaan berbagai pilihan pemasangan dan aksesori kami.

Applications

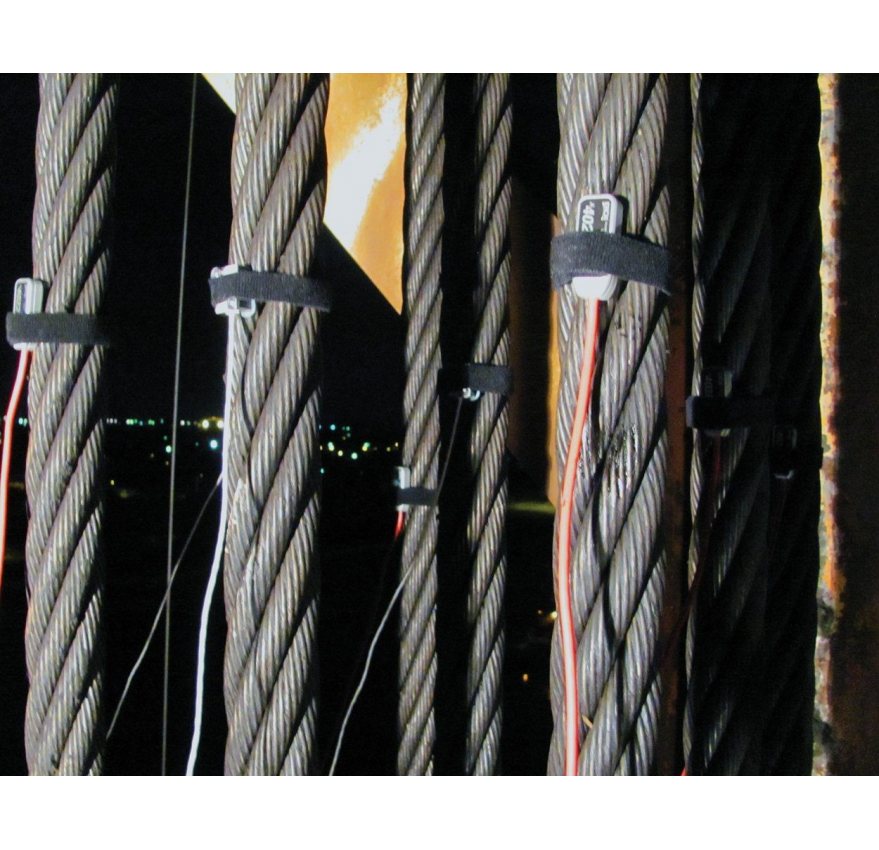

  • Cable force measurements
  • Structure vibration testing & monitoring
  • Earthquake monitoring/detection
  • Structure modal analysis
  • Vehicle dynamics
  • Impact detection
  • Long lead cable (up to 1,500ft/460m)




Feature

  • Completely reusable
  • Designed to exceed IP67
  • Nitrogen gas damped
  • High stability
  • Low power requirements
  • Various mounting options available
  • Industrial cable, custom lengths
  • N.I.S.T. traceable calibration available
  • High differential output (± 2.0 VDC)
  • Responds from rated frequency down to 0 Hz


Spesification

UNIAXIAL MODELS UA1521-002 UA1521-005 UA1521-010 UA1521-025 UA1521-050 UA1521-100
BIAXIAL MODELS BA1521-002 BA1521-005 BA1521-010 BA1521-025 BA1521-050 BA1521-100
TRIAXIAL MODELS TA1521-002 TA1521-005 TA1521-010 TA1521-025 TA1521-050 TA1521-100
RANGE (g)1 ±2 ±5 ±10 ±25 ±50 ±100
FREQUENCY RESPONSE [NOMINAL, 3dB] (Hz) 0-300 0-400 0-600 0-900 0-1200 0-1400
DIFFERENTIAL SENSITIVITY (mV/g) 1000 400 200 80 40 20
EXCITATION VOLTAGE +5.0 Vdc ±5%
OUTPUT  ±2.0 Vdc Full Scale Output
OPERATING TEMPERATURE2 -58° to +176 °F (-50° to +80 °C)
SIZE



UNIAXIAL:

BIAXIAL:

TRIAXIAL:





0.80 in x 1.95 in x 0.49 in (20.3 mm x 49.5 mm x 12.4 mm)

2.0 in x 1.01 in x 1.07 in (50.8 mm x 26.8 mm x 27.2 mm)

2.0 in x 1.01 in x 1.07 in (50.8 mm x 26.8 mm x 27.2 mm)
HOUSING Machined 6061 Aluminum Alloy
CORROSION RESISTANCE Hard Anodized Clear (MIL-A-8625 Type III)
WEATHER PROTECTION Designed to exceed IP67
