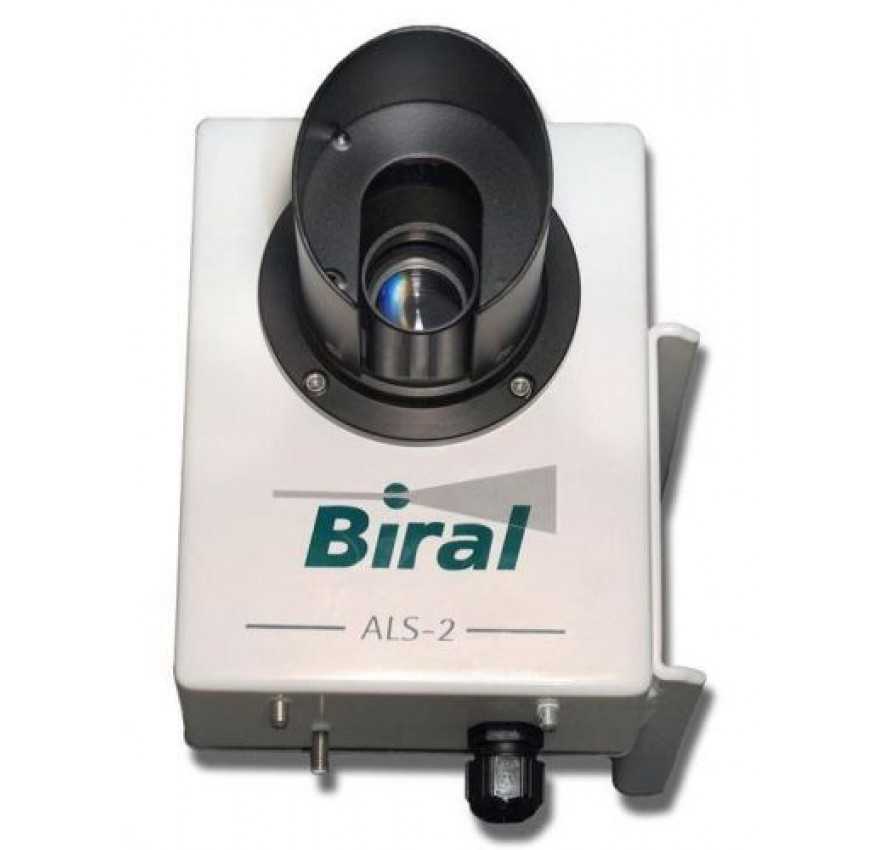

Ambient Light Sensor – ALS-2

Ambient Light Sensor – ALS-2



Inquiry

Description

Ambient Light Sensor – ALS-2

The Biral ALS-2 is a sensor designed to provide an accurate and reliable determination of the amount of background light during all weather conditions. Such a sensor is usually referred to either as an Ambient Light Sensor (ALS) or Background Luminance Sensor. Such sensors are typically used as part of a system to determine the Runway Visual Range at an aerodrome. The ambient light received by the sensor’s 6° field of view is focused onto a photodiode of similar spectral response to the human eye. The output from the photodiode is used to determine the ambient light level using the standard (SI) units of candela per square metre (cd m-2), averaged over one minute.


Feature

Provides an accurate and reliable determination of the amount of background light during all weather conditions.

  • Designed to Federal Aviation Authority (FAA) requirements
  • Built to existing Biral HSS and SWS design standards.
  • Optical response to mimic a human observer
  • Standalone or integrated to Biral HSS or SWS sensors
  • Digital and/or Analogue outputs
  • Extensive self-checking
  • Field calibration can be carried out without additional calibrator

Spesification

Dynamic range2-40,000 Cdm-2 (0.5-11,700 fL)
  • Resolution
Digital O/P: 2 Cdm-2 Analogue O/Ps: 2 Cdm-2 for low mode (2 – 4,000 Cdm-2) 10 Cdm-2 for high mode (10 – 40,000 Cdm-2)
Measurement accuracy<10% of value
  • Field of view
  • Spectral response
Wavelength sensitivity range 420-675 nm, peak 565 nm Analogous to CIE luminous spectral efficiency.
Window contamination monitoringYes
  • Window hood and enclosure heaters
Window heater is standard, but may be disabled Hood heaters is optional Enclosure heater is optional
In-field calibration capabilityYes
  • Automatic self-checking
Yes
  • Interfacing
Sensor can operate either standalone or integrated with Biral HSS and SWSvisibility and present weather sensors
Output connectionsDigital: RS232, or RS422, or RS485 Analogue : Two outputs – Low Mode 0 – 4,000 Cdm-2 (0 – 10V) High Mode 10 – 40,000 Cdm-2 (0 – 10V)
  • Operating environment
-40°C (-55°C with optional internal heater) to +70°C 0 to 100% (condensing) relative humidity
Enclosure ratingIP66 (water and dust tight), corrosion resistant
  • Power
9-36 VDC for sensor and window heater, 24-28V AC or DC for hood and internal heaters. Can draw power directly from Biral HSS or SWS sensor
