Description

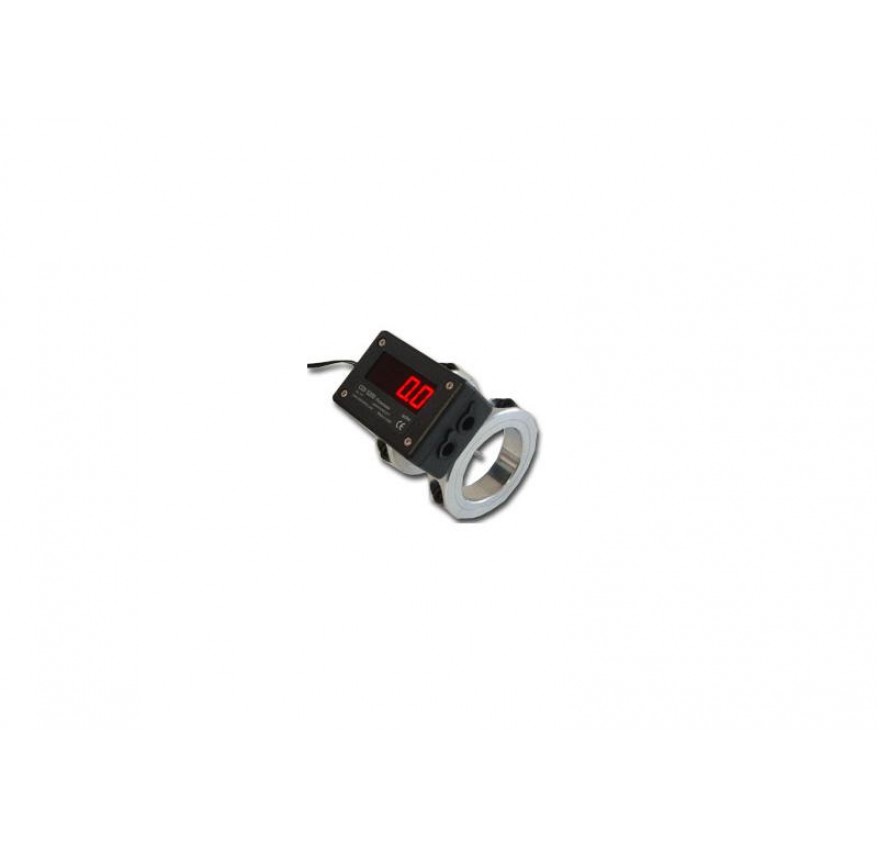

T-CDI-5200-10S adalah flow meter untuk sistem udara tekan. Ini mengukur aliran dengan mempertahankan satu probe lebih hangat dari yang lain. Ini menghitung kecepatan massa dari jumlah panas yang dibutuhkan, dan kemudian menghitung aliran berdasarkan luas pipa. Model ini sesuai dengan 1 "pipa baja
Feature
- This adds the ability for users to be able to measure compressed air flow (SCFM).
- Easy to install
- Digital display
Spesification
Measurement range, 5200 model: 1 - 80 SCFM
Measurement range, 5400 model: 16-200 SCFM (calibrated), 350 - 600 (uncalibrated)
Accuracy: (5200 model) 5% of reading plus 1% of full scale @ air temperatures 40 - 120F
Accuracy: (5400 model calibrated range) 5% of reading plus 1% of full scale @ air temperatures 40 - 120F; (5400 model extended range) 7% of reading from rated fule scale to 150% of calibrated range, @ air temperatures 40 - 1200F
Medium: Compressed air, nitrogen
Operating pressure, 5200 model: 30 to 170 psig for best accuracy. 200 psig max on Sch 40 steel
Operating pressure, 5400 model: 200 psig max on Sch 40 steel
Input power: 250 mA @ 18 - 24 VDC
Output resistance: 400Ω ma
xResponse time: 1 sec to 63% of final value
Output: selectable 4 - 20mA or pulse
Display: 4-digit LED
Ring material: Aluminum
Size / Weight, 5200 model: 3.2x2.2x1.6 in / approx. 1.2 lb
Size / Weight, 5400 model: 3.2x2.2x1.6 in / approx. 1.4 lb
