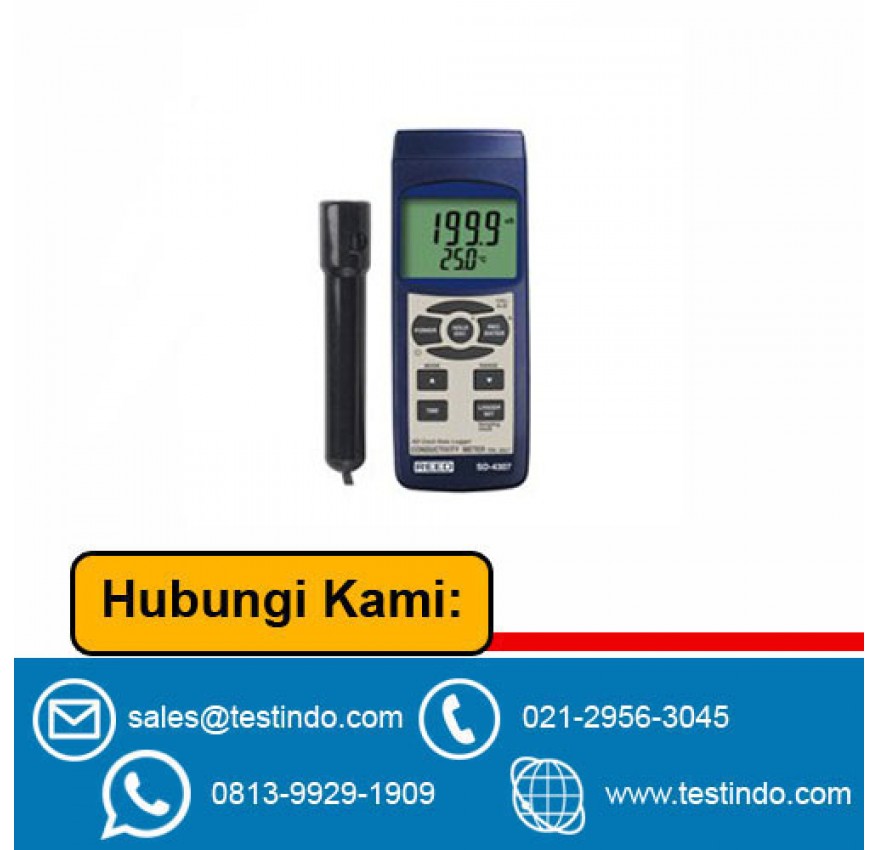

Conductivity Meter w/ SD Card Slot for Data Logging

Conductivity Meter w/ SD Card Slot for Data Logging



Order

Description

Reed Instruments Meter Measuring Conductivity, Total Dissolved Solids and Salt in Water


Feature

  • Carbon Rod Electrode (Included) Measures and Records Conductivity, TDS and Salt
  • 0 to 200 µS Conductivity Measurement Range with a 2% FS Accuracy and 0.1µS Resolution
  • Temperature Coefficiency of the Solution Automatically Compensated with Conductivity Measurements
  • LCD Display Shows Current Readings, Max and Min Readings and Battery Status
  • Recorded Data Logs to SD Card with Easy Analysis Using Microsoft® Excel®
  • Powered by User-Replaceable Batteries with Optional AC/DC Powered Adapter (#AP-9VA-110V)

Spesification

Conductivity Range: 0 to 200 µS (0.1 µS Resolution)
Range: 0.2 to 2 mS (0.001 mS Resolution)
Range: 2 to 20 mS (0.01 mS Resolution)
Range: 20 to 200 mS (0.1 mS Resolution)
Accuracy (All Ranges): ±(2% Full Scale + 1 Digits)
Total Dissolved Solids (TDS) Range: 0 to 132 ppm (0.1 ppm Resolution)
Range: 132 to 1320 ppm (1 ppm Resolution)
Range: 1320 to 13200 ppm (10 ppm Resolution)
Range: 13200 to 132000 ppm (100 ppm Resolution)
Accuracy (All Ranges): ±(2% Full Scale + 1 Digits)
Salt Range: 0 to 12% (% Weight)
Accuracy: 0.5% Salt Value
Resolution: 0.01% Salt
Data Storage Capacity 1GB to 16GB onto External SD Card (Sold Separately)
Sampling Rate 1 Second to 9 Hours
LCD Display Type: Backlight
Size: 52mm x 38mm (2.04" x 1.49")
Download Time Dependent Upon Size of SD Card
Power Source Battery: (6) 1.5 Volt Heavy Duty AA Alkaline
AC/DC Power: Optional 9 Volt Adapter (#AP-9VA-110V)
Battery Life 24 to 48 Hours Depending on Sample Rate
Battery Classification Dry Battery, Non-Hazardous
Case Material ABS Plastic
Operating Range Temperature: 0°C to 50°C (32°F to 122°F)
Humidity: < 85% RH
Standards Compliance CE
Weight 515 grams (1.13 lbs)
Dimensions Meter: 177mm x 68mm x 45mm (7.0" x 2.7" x 1.8")
Probe: 22mm x 120 mm (0.9" x 4.7")
Cable Length: 0.9 Meters (34")
