Description

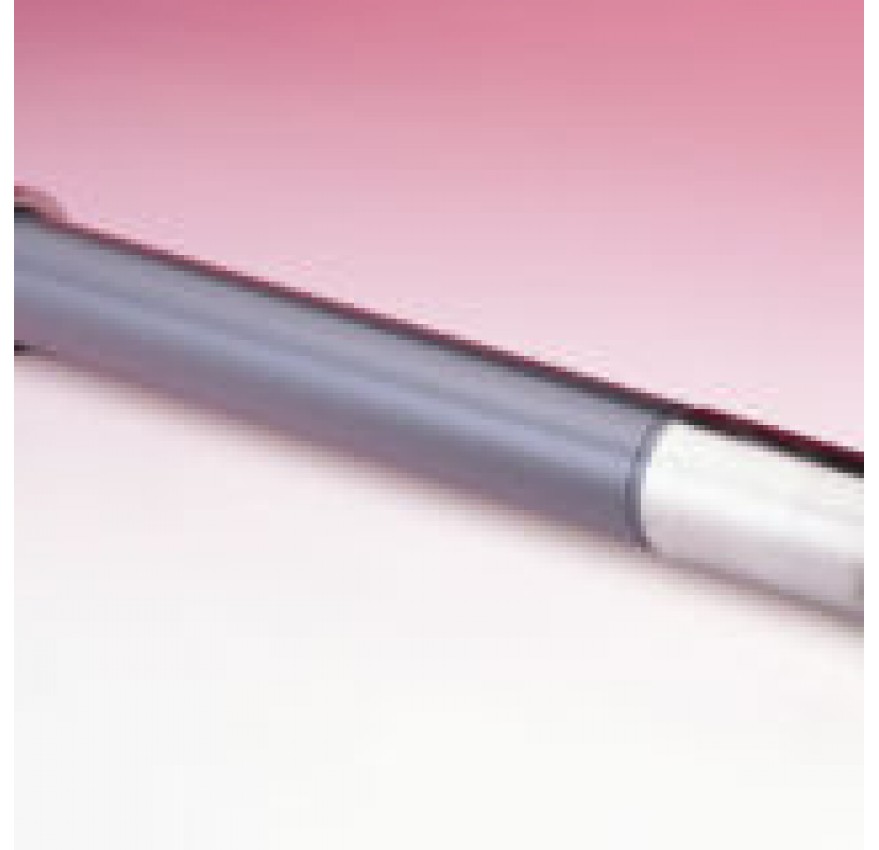

The Model 4400 Embedment Jointmeter is designed for use across construction joints, such as those between adjacent blocks in a concrete dam. It is normally embedded across the joint to monitor the expansion or contraction of the joint. The use of internal universal joints allows for a degree of shearing motion.
Spesification
|
Standard Range¹ |
12.5, 25, 50, 100 mm |
|
Resolution |
0.025% F.S. |
|
Accuracy² |
±0.1% F.S. |
|
Nonlinearity |
<0.5% F.S. |
|
Temperature Range¹ |
−20°C to +80°C |
|
Length × Diameter |
441, 441, 441, 569 × 51 mm (flange) |
¹ Other ranges available on request.
² Accuracy established under laboratory conditions.
