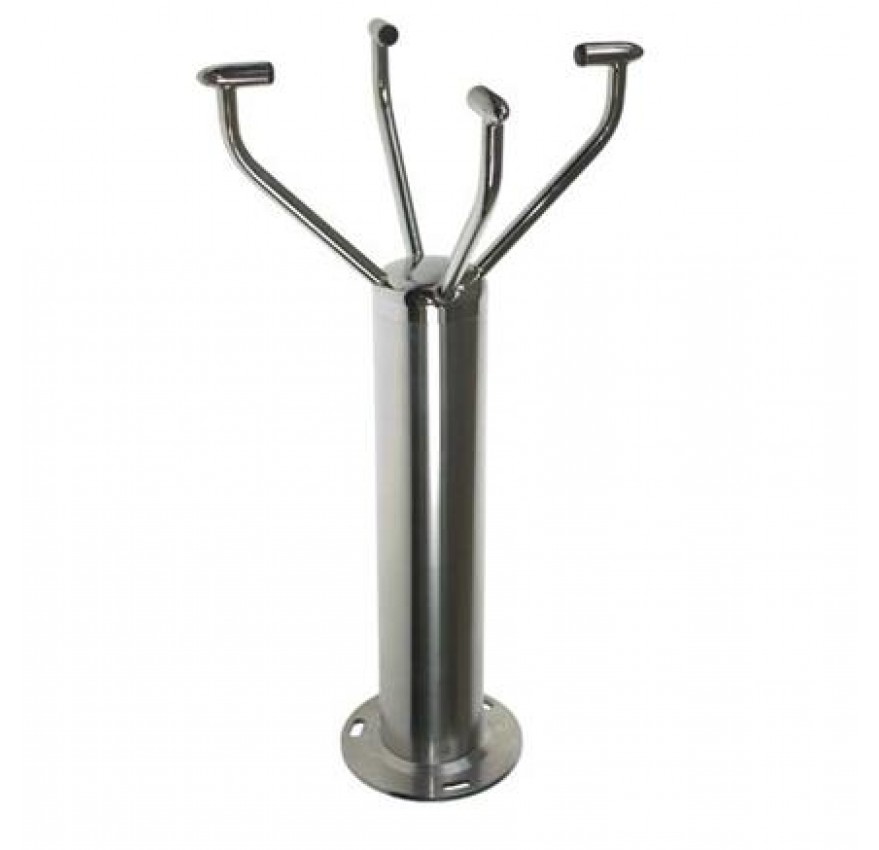

Gill Instruments Ultrasonic 2-Axis Wind Sensor 5600-0210

Gill Instruments Ultrasonic 2-Axis Wind Sensor 5600-0210



Order

Description

Gill Instruments Ultrasonic 2-Axis Wind Sensor 5600-0210


Feature

  • Decreased down time & service costs
  • Continuous operation in extreme weather conditions
  • Reduced set up and installation time
  • No moving parts
  • Can be configured to exact requirements including analog outputs
  • Meets stringent performance criteria specified by international meteorological, naval and airport authorities
  • Enhanced anti-icing design
  • Analog outputs
  • NMEA output
  • User selectable output format
  • Sonic temperature
  • 1, 4, or 10 Hz output
  • Communications software
  • Calibration to international standard

Spesification

MEASUREMENT
  • Output
1 Hz, 4 Hz, 10 Hz
  • Parameters
UV, Polar, NMEA, Tunnel
  • Units
m/s, Knots, MPH, KPH, ft./min.
  • Averaging
Flexible 1-3600 seconds
WIND SPEED
  • Range
0 – 65 m/sec (0-145mph)
  • Accuracy
2%
  • Resolution
0.01 m/sec
  • Offset
±0.01 m/sec
WIND DIRECTION
  • Range
0 – 359°
  • Accuracy
± 2°
  • Resolution
SONIC TEMPERATURE OUTPUT
  • Range
-40°C to +70°C
  • ANEMOMETER STATUS
Part of standard message
  • STARTING THRESHOLD
0.01 m/sec
  • DEAD BAND WIND DIR.
None
  • POWER REQUIREMEN T
Anemometer only 9 – 30 VDC @ 40mA @ 12 VDC
  Heating – Optional 3A @ 24V AC or DCV
DIGITAL OUTPUT
  • Communication
RS422, full duplex, network facility
  • Baud rates
1200, 2400, 4800, 9600, 19200, 38400
  • Formats
8 data, odd, even, or no parity
ANALOG OUTPUT – OPTIONAL
  • Quantity
3 (speed, direction, status or sonic temperature)
  • Scale
Multiples of ±10m/s up to ±70 m/s
  • Type
± 2.5V, 0-5V or 4-20mA
  • V output resistance
60 Ohms
  • 4-20mA loading
10-300 Ohms
DIMENSIONS
  • Weight
1.5 lbs. (.69 kg)
  • Size
405 mm high x 210 mm wide
MATERIALS
  • External
Stainless Steel 316
ENVIRONMENTAL
  • Moisture Protection
IP66 (NEMA4X)
  • Operating Temp
-55°C to +70°C
  • Humidity
5% to 100% RH
  • Precipitation
300mm/hr
  • Icing
MILSTO810E Method 521.1 Procedure 1
  • STANDARDS
Traceable to NAMAS standards
  • SITE CALIBRATION
None required
  • CERTIFICATION
EMC tested BSEN 50081-1 1992 (Emissions class B). BSEN 50082-2 1992 (Immunity) Worldwide distribution.
  • MTBF
10 years
