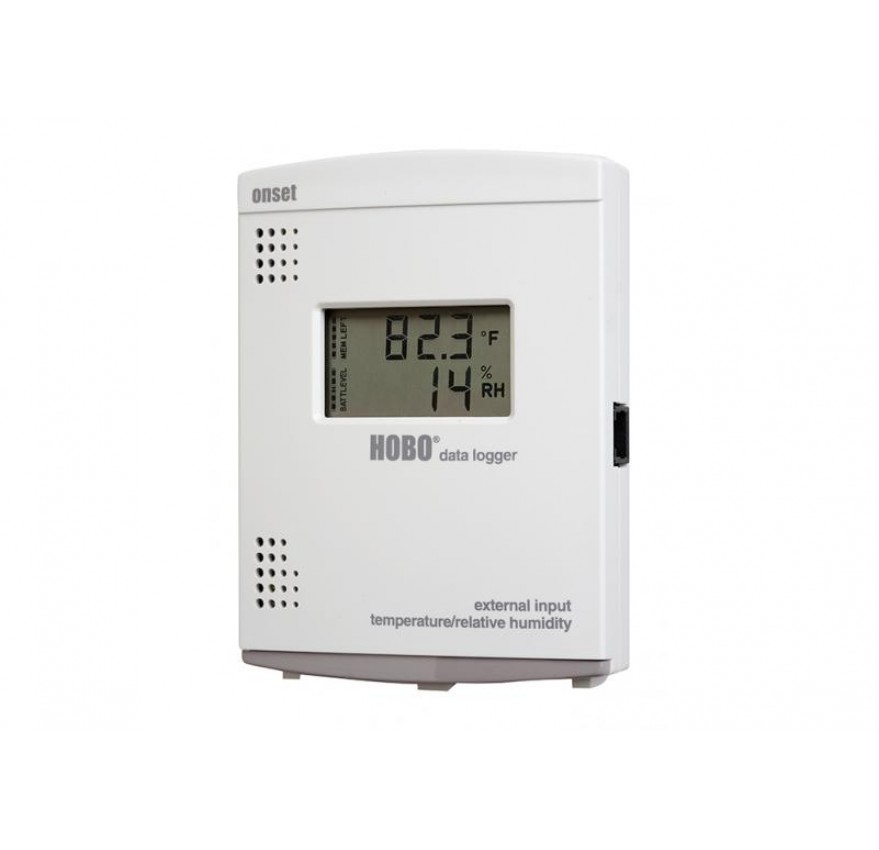

HOBO U14-002 LCD Logger - Ext.Temperature/RH Data Logger - U14 With LCD

HOBO U14-002 LCD Logger - Ext.Temperature/RH Data Logger - U14 With LCD



Order

Description

HOBO U14 LCD Logger - Ext.Temperature/RH Data Logger - U14 With LCD

he HOBO U14 LCD External Temperature/Relative Humidity (RH) Data Logger displays and records temperature and humidity conditions. It is well-suited for use in manufacturing, processing, and storage environments where reliable monitoring and documentation of specific temp/RH conditions are critical. Data is offloaded via USB to a PC or Mac computer. An alarm display and built-in relay for use with Onset's Remote Alarm and/or Autodialer accessories assure timely notification of alarm conditions.



Feature

  • Faster USB data download time
  • Improved Temp/RH sensor resolution
  • Real-time display of Temperature and RH
  • Alarm display and output ensure timely notification of out-of-range conditions
  • Two models to choose from - internal Temp/RH or external Temp or Temp/RH
  • Optional Remote Alarm and Autodialer
  • Optional protective case for wet or condensing environments

Environment:
  • The U14-002 Data Logger is for use in Indoor environments
Measurements:
  • The U14-002 Data Logger supports the following measurements (sensors sold separately): Relative Humidity, Temperature



Spesification

Environmental

  • Operating temperature range -20°C to +50°C, (-4°F to +122°F) , 0 to 100% RH non-condensing
  • Operating relative humidity range 0 to 95%, non-condensing, noncorrosive environment



Logger Capabilities

  • Capacity:
    Temp and RH: 21,500 measurements
    Temp Only: 43,000 measurements
  • Software-selectable sampling intervals: 1 second up to 18 hours, recording times up to 1 year
  • Programmable start time/date
  • Recording modes: Stop when full
  • Launch Modes: Immediate, Delayed
  • Nonvolatile EEPROM memory retains data even if batteries fail



LCD

  • Size: 33 x 50.8 mm (1.3 x 2 inches)
  • Displays temperature and relative humidity simultaneously
  • Displays °C or °F (selectable within host software)
  • Displays memory remaining and battery level
  • Displays flashing ALERT for out-of-limits conditions (selectable within host software) and stops flashing on offload or return to normal range.



Alarms

  • High and low set points for both temperature and relative humidity
  • Selectable delays for each set point.
  • Alert conditions reset on offload or return to normal range.
  • Selectable Contact Relay: Normally Closed or Normally Open
  • Contact rating: 48VDC, 1A max
  • Contact resistance: less than 1 Ohm
  • Wire size range is 22AWG to 14AWG
  • 0% Low Battery Range Communications
  • Offloads data to PC or U-Shuttle via USB cable
  • Readout full logger (64K) in less than 30 seconds



Timekeeping

  • Time accuracy: ±1 minute per month at +20°C (+68°F).



Power

  • 3 AAA Alkaline batteries, user-replaceable



Size/Weight

  • 125 x 92 x 31 mm (4.9 x 3.6 x 1.2 inches)
  • 170 g (6.0 oz) with batteries
