Description

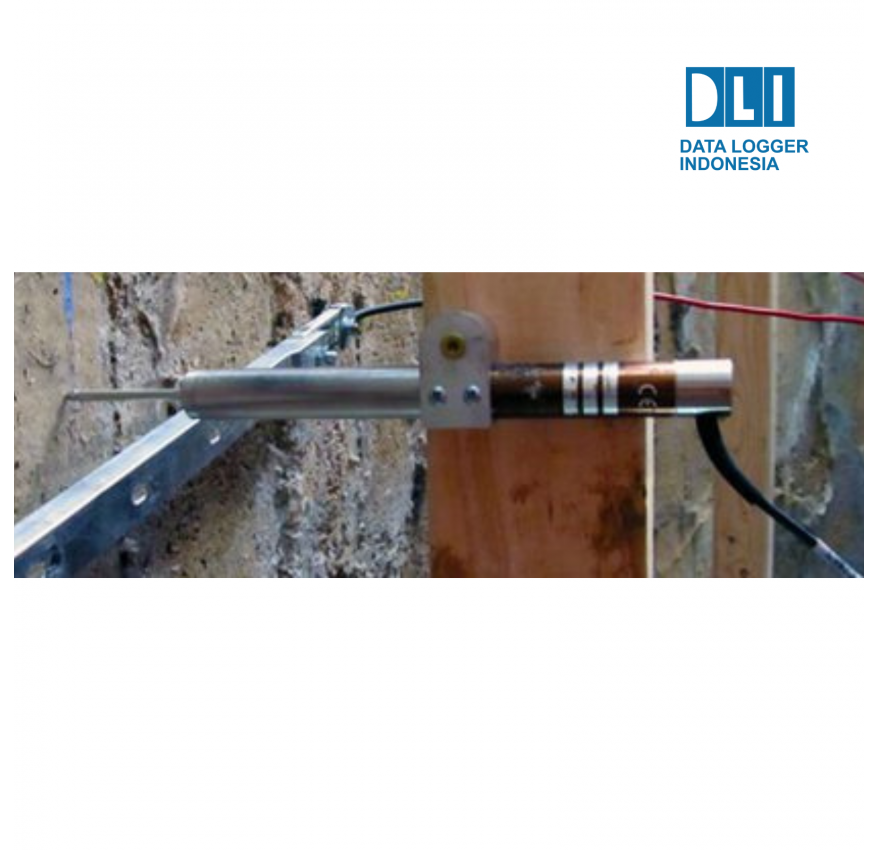

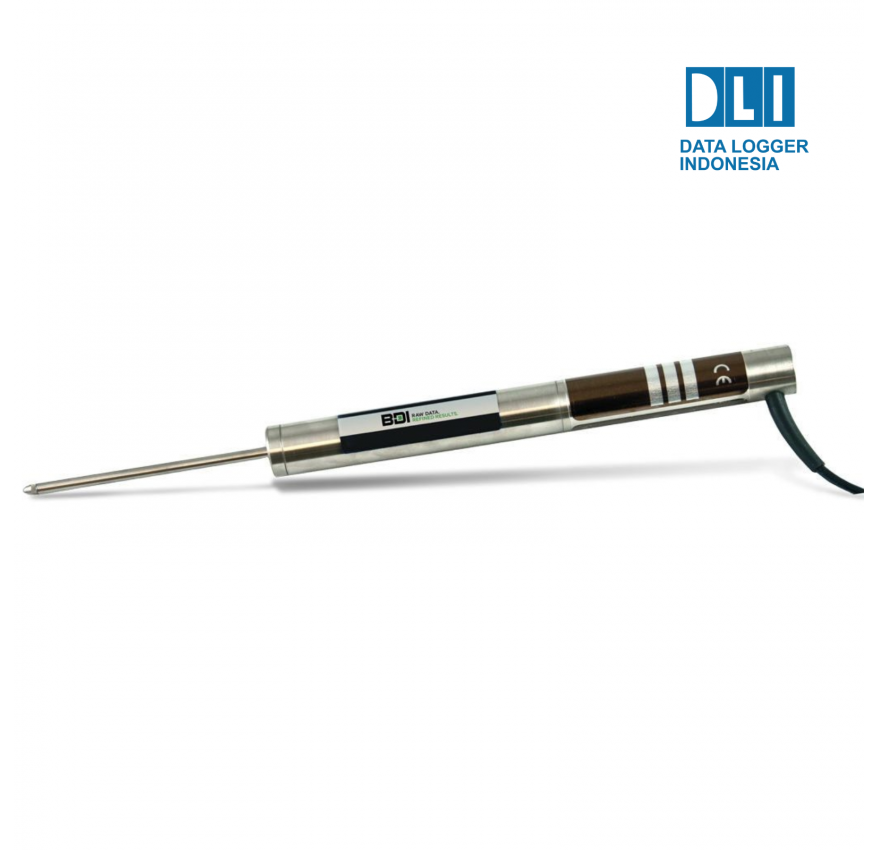

The Linear Variable Differential Transformer (LVDT) displacement transducer accurately measures the movement between the spring-loaded sliding armature and the exterior body. These rugged and self-contained units are ideal for recording displacements on structural members due to live loads and temperature variations.
With years of experience using these transducers on bridges, building and hydraulic structures they are the gold standard when it comes to very accurate position measurements.
Feature
- 6 to 18 Vdc input range
- Stainless steel construction
- Spring return armature
- High cycle life
- High accuracy
- < 0.0001” resolution
APPLICATIONS
- Bridge deflection
- Expansion joint movement
- Concrete crack monitoring
- Moveable structure testing
- Tainter gate differential movement
- Lift bridge movement
- Laboratory testing
DIMENSIONS
Spesification
|
MODEL |
LVDT-01-005 | LVDT-01-010 | LVDT-01-020 | LVDT-01-030 |
|
Range |
±0.5 in ( ±12.5 mm) | ±1.0 in ( ±25 mm) | ±2.0 in ( ±50 mm) | ±3.0 in ( ±75 mm) |
|
Linearity Error (% F.S.)1 |
< ±0.5 | < ±0.5 | < ±0.5 | < ±0.5 |
|
Length (shaft centered) |
8.7 in (221 mm) | 10.8 in (274 mm) | 15.8 in (401 mm) | 21.7 in (551 mm) |
|
Supply Voltage |
+6.0 to +18 Vdc | |||
|
Output |
±2.2 Vdc | |||
|
Temperature coefficient (span) |
±0.017% F.S./°F ( ±0.0306% F.S./°C) (typical) | |||
|
Operating temperature range |
-40° to +158 °F (-40° to +80 °C) | |||
1 Lower linearity error version available upon request.
