Description

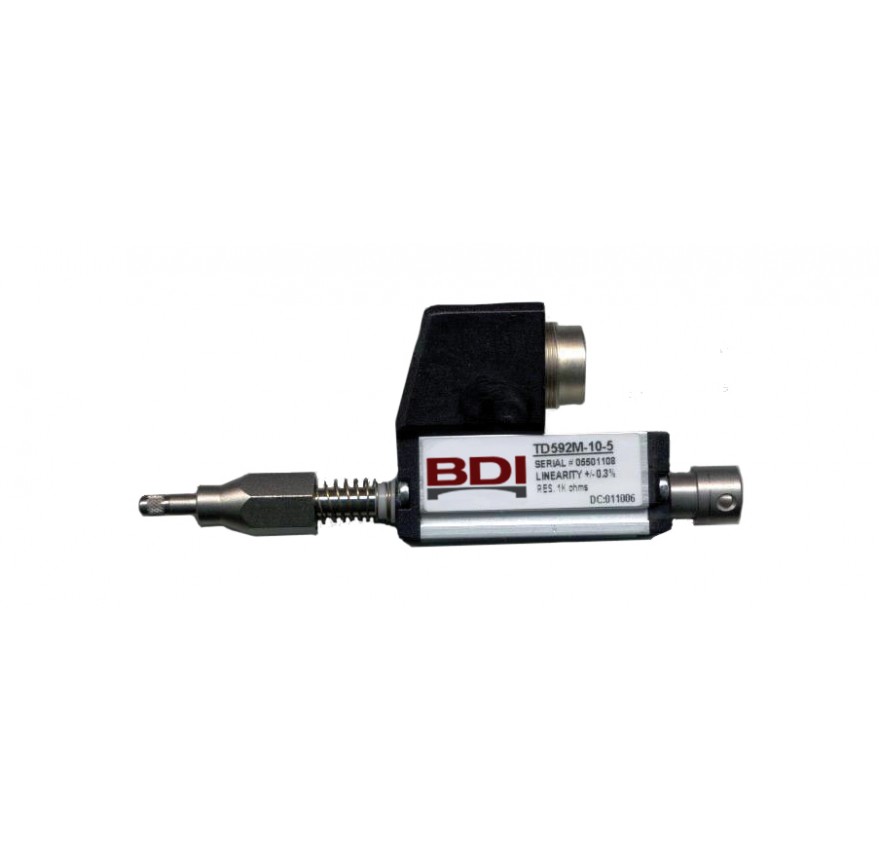

The cost-effective Micro Resistive Displacement Transducer is ideal for measuring small linear position changes. With a spring return control rod, installation can be completed very quickly.
Feature
- Very cost-effective
- Small physical size, spring return
- Wide input (excitation) range
- Infinite resolution (depends on user’s A/D system)
- Stable DC output
- Fast mounting
APPLICATIONS
- Diagnostic load testing bridges
- Testing river control structures
- Crack opening
- Expansion joint movement
- Laboratory testing
Spesification
|
Type |
Micro Resistive Displacement Transducer (Spring Return) |
|
Ranges |
0.4, 1.0, 2.0 in |
|
Excitation |
+1 to +12VDC |
|
Output |
0 to (Excitation Voltage) VDC |
|
Linearity |
±0.3% to ±0.1% |
|
Temperature Range |
-22°F to +50°F (-30°C to +100°C) |
| Size
0.4 in 1.0 in 2.0 in |
0.9 in x 1.6 in x 4.25 in (22mm x 41mm x 108mm) 0.9 in x 0.9 in x 5.43 in (23mm x 23mm x 138mm) 0.9 in x 0.9 in x 7.72 in (23mm x 23mm x 196mm) |
|
Weatherproof |
IP40 |
