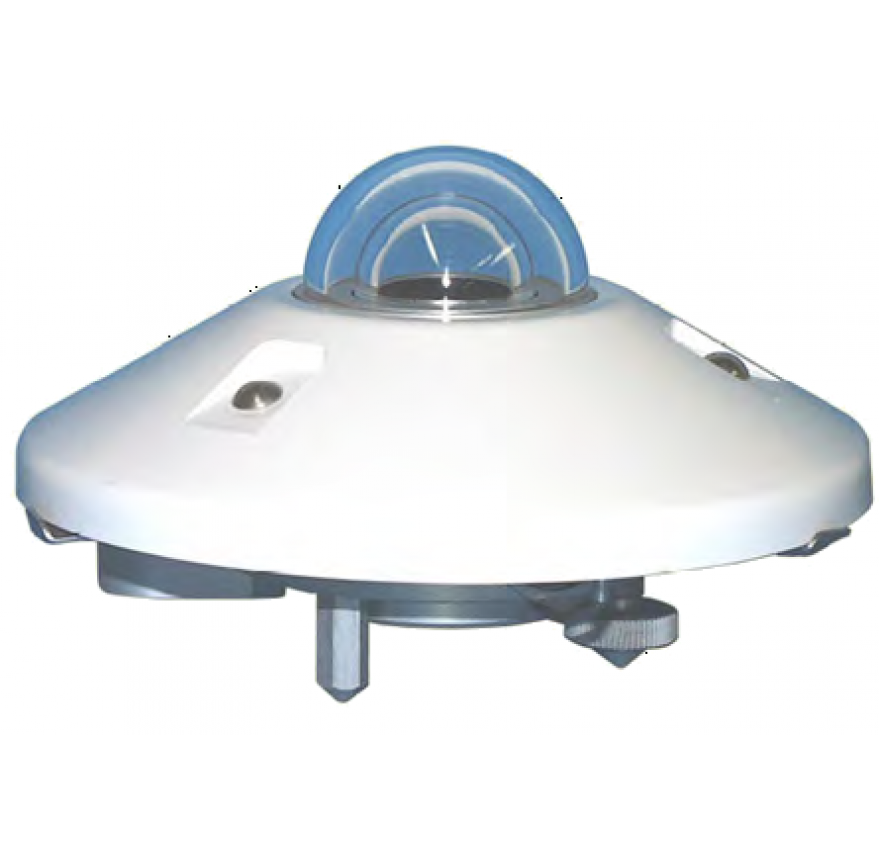

Precision Spectral Pyranometer

Precision Spectral Pyranometer



Order

Description

first class radiometer that precisely measures sun and sky radiation. The 5600-0602 is a First Class Radiometer (as defined by the World Meteorological Organization, WMO); compliant with all ISO 9060 performance criteria.


Feature

The sensor can be used to measure total solar radiation or in defined wavelength bands. It features

  • Circular multi-junction Eppley wire-wound thermopile capable of withstanding severe mechanical vibration and shock
  • Receiver coated with Parson’s black lacquer (non-wavelengthselectiveabsorption)
  • Pair of removable precision ground and polished hemispheres of Schott optical glass
  • Both inner and outer hemispheres of clear WG295 glass, uniformly transparent to energy between about 285 and 2800 millimicrons
  • Includes a spirit level, adjustable leveling screws, and a desiccator which can be readily inspected
  • Cast bronze body with a white enameled guard disc
  • Schott optical glass for the outer hemisphere alsoavailable in GG395 (clear), GG495 (yellow), OG530 (orange), RG630 (red), and RG695 (dark red)
  • Other Schott glasses and Infrasil II quartz hemispheres available
  • Calibration certificate traceable to the World Radiation Reference included with conversion factors for various energy units

Spesification

  • PECTRAL RANGE
285 TO 2800 millimicron (nm)
  • SENSITIVITY
9µV/W/m2 (approx.)
  • IMPEDANCE
650 ohms (approx.)
  • TEMPERATURE DEPENDENCE
± 1% from -20°C to +40°C
  • LINEARITY
± 0.5% from 0 to 2800 W/m²
  • RESPONSE TIME
1 second (1/e signal)
  • COSINE
± 1% from 0 to 70° zenith angle,
  ±3% 70° to 80° zenith angle
  • ORIENTATION/TILT
No effect on instrument performance
  • MECHANICAL

  • VIBRATION
Tested up to 20 g’s (no damage)
  • DIMENSIONS
5.75 in. Dia x 3.75 in. H
  • WEIGHT
7 LBS
  • CALIBRATION
Integrating hemisphere (approx. 1 cal. cm-2 min-1, ambient temperature +25°C)
