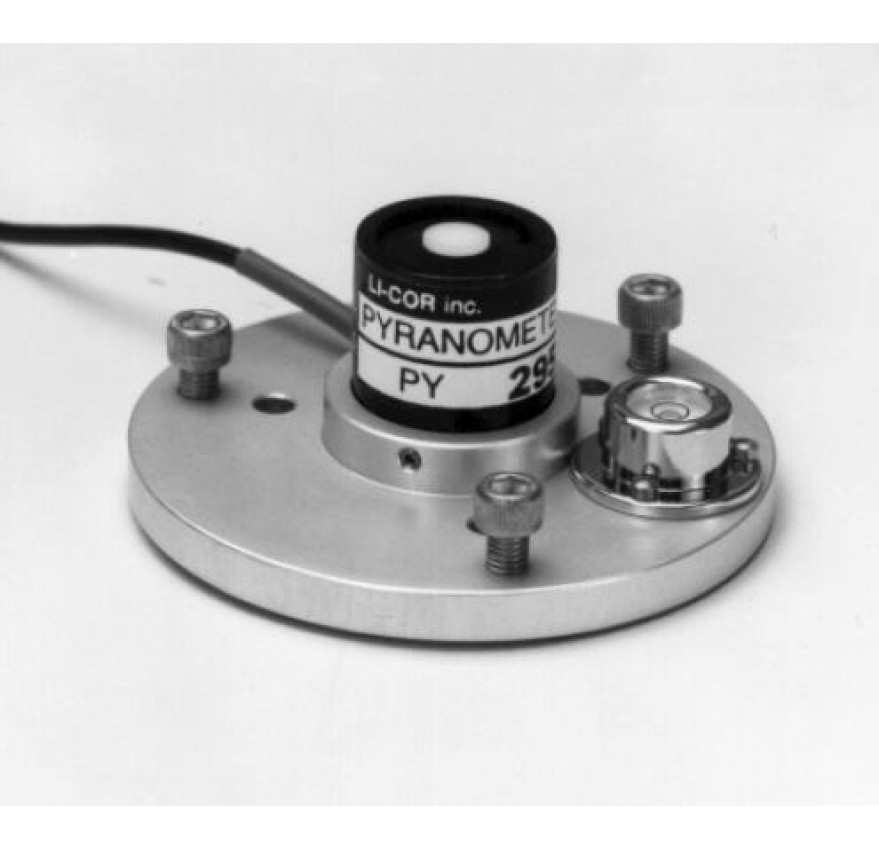

Quantum PAR Pyranometer





Inquiry

Description

Quantum Pyranometer – Measures Photosynthetically Active Radiation (PAR)in the 400 to 700 NM waveband.


Feature

Used by agriculturists, botanists, horticulturists, ecologists, and environmental scientists to measure PPFD (Photosynthetic Photon Flux Density) in the atmosphere, growth chamber, and greenhouse

  • Accurate measurements under natural and arti?cial light conditions
  • Colored glass ?lters are used to tailor the response to the desired waveband using an interference ?lter to provide a sharp cutoff at 700 nm which prevents any infrared light from being measured.

Spesification

  • Spectral Range :
400 to 700 nm
  • Accuracy :
±5% traceable to NIST
  • Sensitivity :
Typical 5µA per 1000 µmol s-1m-2
  • Linearity :
Max. deviation of 1% up to 10,000 µmol s-1m-2
  • Stability :
<± 2% change over one-year period
  • Response Time :
10 µs
  • Temperature :
±0.15% per °C maximum
  • Dependence :
Cosine Correction Cosine corrected up to 80° angle of incidence
  • Azimuth :
<±1% error over 360° at 45° elevation Tilt No error induced from orientation
  • Operating Temperature :
-40°C to +65°C (-40°F to +149°F)
  • Relative Humidity :
0% to 100% RH
  • Detector :
High stability silicon photovoltaic detector (blue enhanced)
  • Sensor Housing :
Weatherproof anodized aluminum case with acrylic diffuser and stainless steel hardware
  • Millivolt Adapter :
604 (ohm) precision resistor to convert sensor output from microamps to millivolts
  • Size :
2.38 cm Dia x 2.54 cm H (0.94 in. x 1in.)
  • Weight :
28 g (1 oz)
  • Cable Length :
3m (10 ft.) standard
