Description

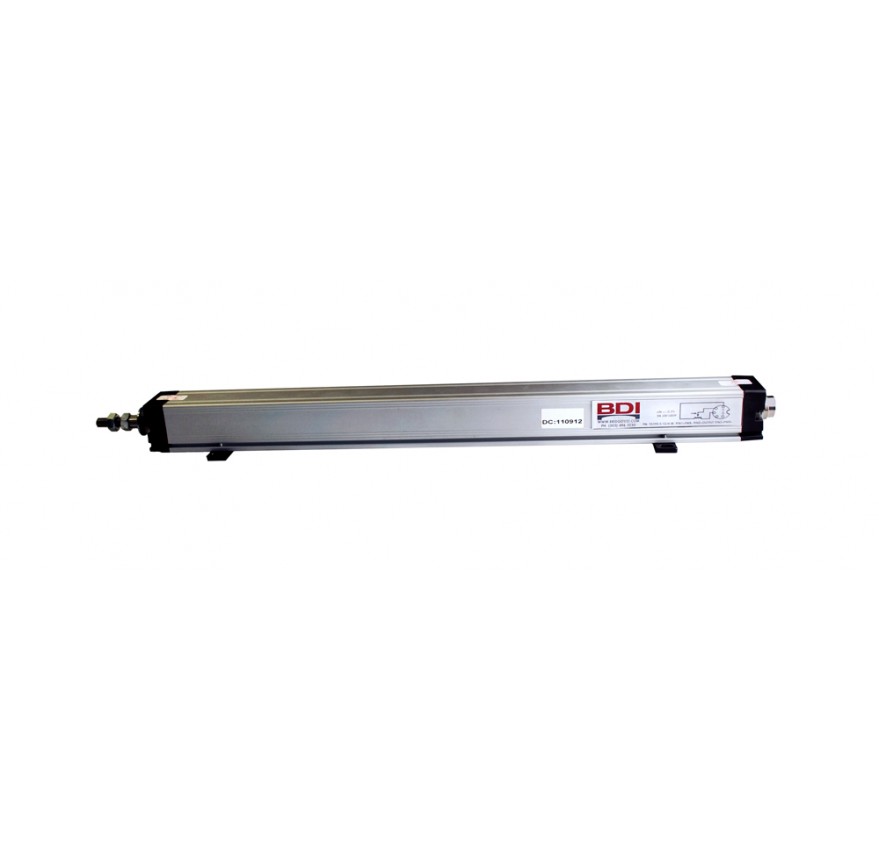

The Resistive Displacement Transducer (RDT) is an economical medium-range linear displacement transducer.
Feature
- Cost-effective
- Very wide input (excitation) range
- Large displacement range
- Stable, high DC output
- Fast mounting
- Rugged aluminum construction
- Wide temperature range
APPLICATIONS
- Diagnostic load testing bridges
- Moveable structures
- Evaluating mechanical components
- Expansion joint movement
- Concrete crack monitoring
- Laboratory testing
Spesification
|
Type |
Resistive Displacement Transducer |
|
Range |
1.0, 2.0, 3.0, 4.0, 6.0 in |
|
Excitation |
+1 to +40VDC |
|
Output |
0 to (Excitation Voltage) VDC |
|
Linearit |
±0.3% (5-95% of Theoretic Electrical Travel) |
|
Temperature Range |
-85°F to +221°F (-65°C to +105°C) |
| Size
1.0 in 2.0 in 3.0 in 4.0 in 6.0 in |
0.9 in x 0.9 in x 6.61 in (23mm x 23mm x 168mm) 0.9 in x 0.9 in x 8.61 in (23mm x 23mm x 219mm) 0.9 in x 0.9 in x 10.5 in (23mm x 23mm x 267mm) 0.9 in x 0.9 in x 12.5 in (23mm x 23mm x 316mm) 0.9 in x 0.9 in x 16.5 in (23mm x 23mm x 418mm) |
|
Weatherproof |
IP65 |
