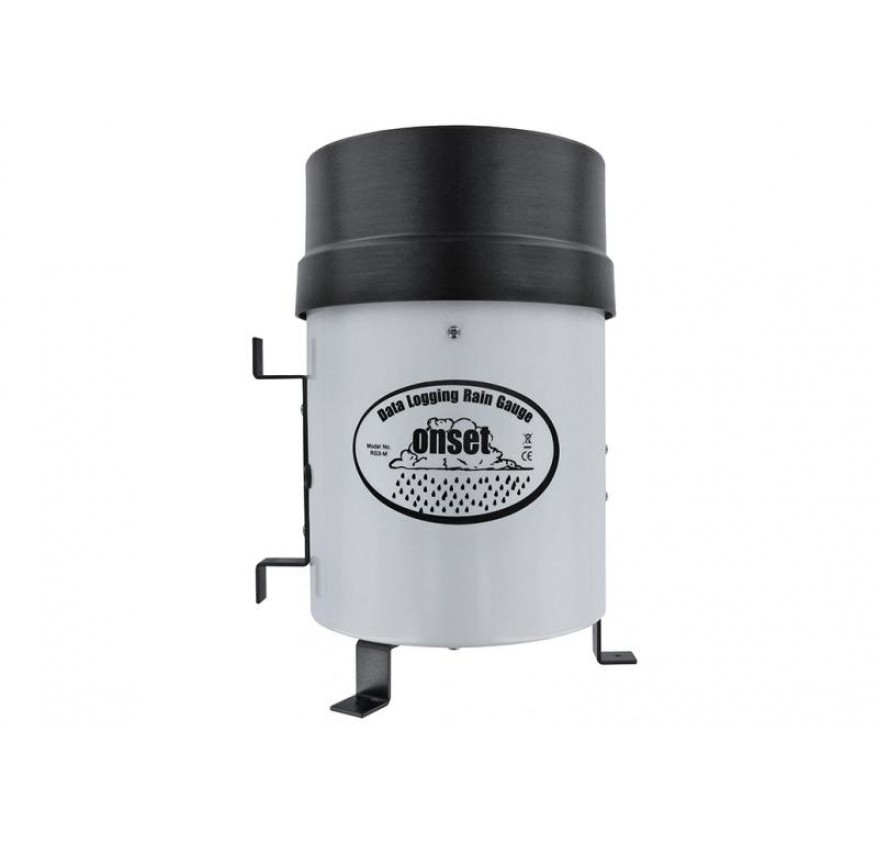

RG 3 (Rain Gauge 3) Data Logger

RG 3 (Rain Gauge 3) Data Logger


Harga
Rp. 14.856.975

Order

Description

Catatan hingga 160 inci curah hujan dengan kecepatan sampai 12,7 cm (5 inci) per jam. Sistem Data Logging Rain Gauge bertenaga baterai dan dilengkapi dengan data log peristiwa HOBO® Pendant Event dengan alat pengukur hujan tip. Mudah mengumpulkan data curah hujan, waktu, dan durasi, serta suhu saat digunakan dengan perisai radiasi opsional (RS1 Solar Radiation Shield, atau M-RSA). Stasiun pangkalan atau antar jemput diperlukan.

RG3


Feature

  • High quality tipping-bucket rain gauge includes a HOBO Pendant Event data logger. Base station or shuttle is required.
  • Time and date stamp is stored for each tip - provides detail needed to determine rainfall rates and duration.
  • Reliable, field-proven rain gauge.
  • Compatible with HOBOware and HOBOware Pro software for logger setup, graphing and analysis.
  • Also records temperature when used with an optional solar radiation shield.

Spesification

Rain Gauge
Maximum rainfall rate: 12.7 cm (5 in.) per hour
Calibration accuracy: ±1.0% (up to 1 in./hour for the RG3 or 20 mm/hour for the RG3-M)
Resolution: 0.01 in. (RG3) or 0.2 mm (RG3-M)
Calibration: Requires annual calibration: can be field calibrated or returned to the factory for re-calibration
Operating temperature range: 0° to +50°C (+32° to +122°F)
Storage temperature range: -20° to +70°C (-4° to +158°F)
Environmental rating: Weatherproof
Housing: 15.24cm (6-in.) aluminum bucket
Tipping bucket mechanism: Stainless steel shaft with brass bearings
Dimensions: 25.72 cm height x 15.24 cm diameter (10.125 x 6 in.); 15.39 cm (6.06 in.) receiving orifice
Weight: 1.2 Kg (2.5 lbs)
Part numbers: RG3 (0.01 in. per tip) ; RG3-M (0.2 mm per tip)

The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).

Logger
Time stamp: Resolution 1.0 second
Time accuracy: ± 1 minute per month at 25°C (77°F), see Plot B on page 10.
Operating range: -20° to 70°C (-4° to 158°F)
Environmental rating (for logger used outside of rain gauge): Tested to NEMA 6 and IP67; suitable for deployment outdoors
NIST traceable certification: Available for temperature only at additional charge; temperature range -20° to 70°C (-4° to 158°F)
Battery: CR-2032 3V lithium battery; 1 year typical use
Memory: 64K bytes – 16K to 23K tips when recording rain only; 25K to 30K data points when recording rain and temperature
Materials: Polypropylene case; stainless steel screws; Buna-N o-ring; PVC cable insulation

The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).

Temperature Measurement
Measurement range: -20° to 70°C (-4° to 158°F)
Accuracy: ± 0.47°C at 25°C (± 0.85°F at 77°F). A solar radiation shield is required for accurate temperature measurements in sunlight.
Resolution: 0.10°C at 25°C (0.18°F at 77°F), see Plot A on page 10.
Drift: Less than 0.1°C/year (0.2°F/year)
Response time: Airflow of 1 m/s (2.2 mph): 10 minutes, typical to 90%
