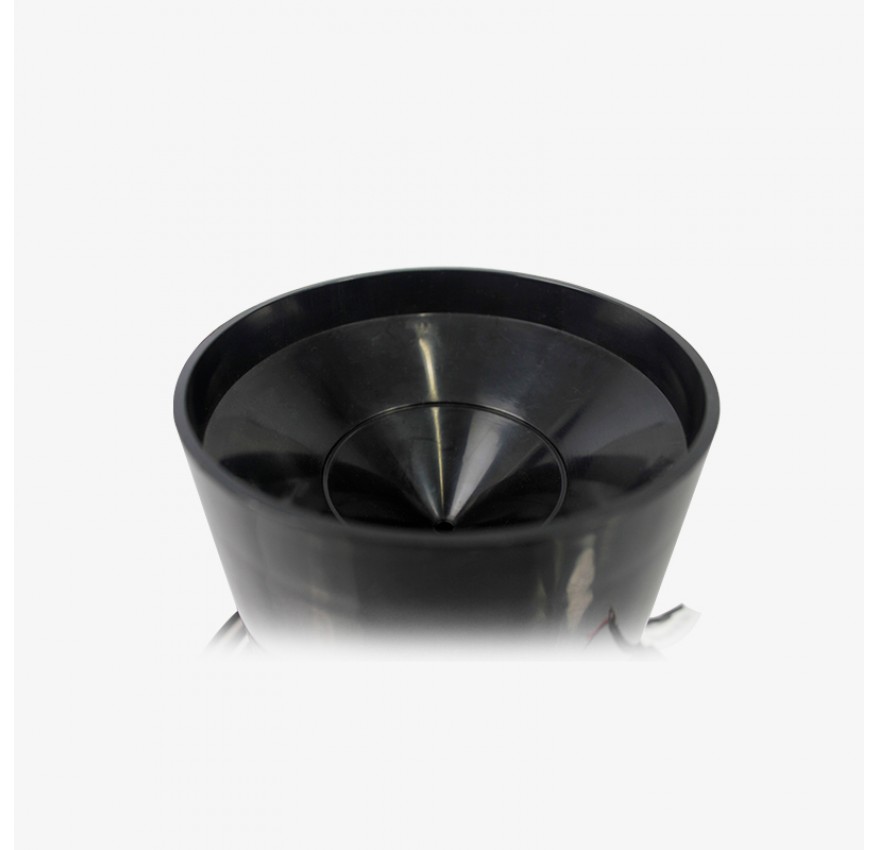

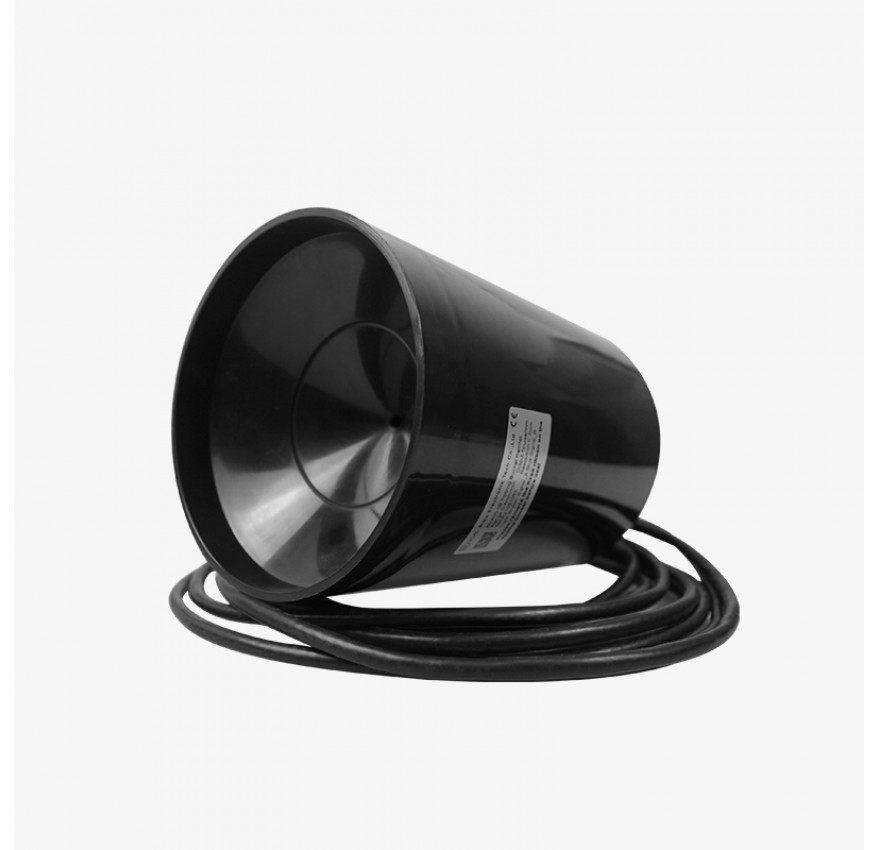

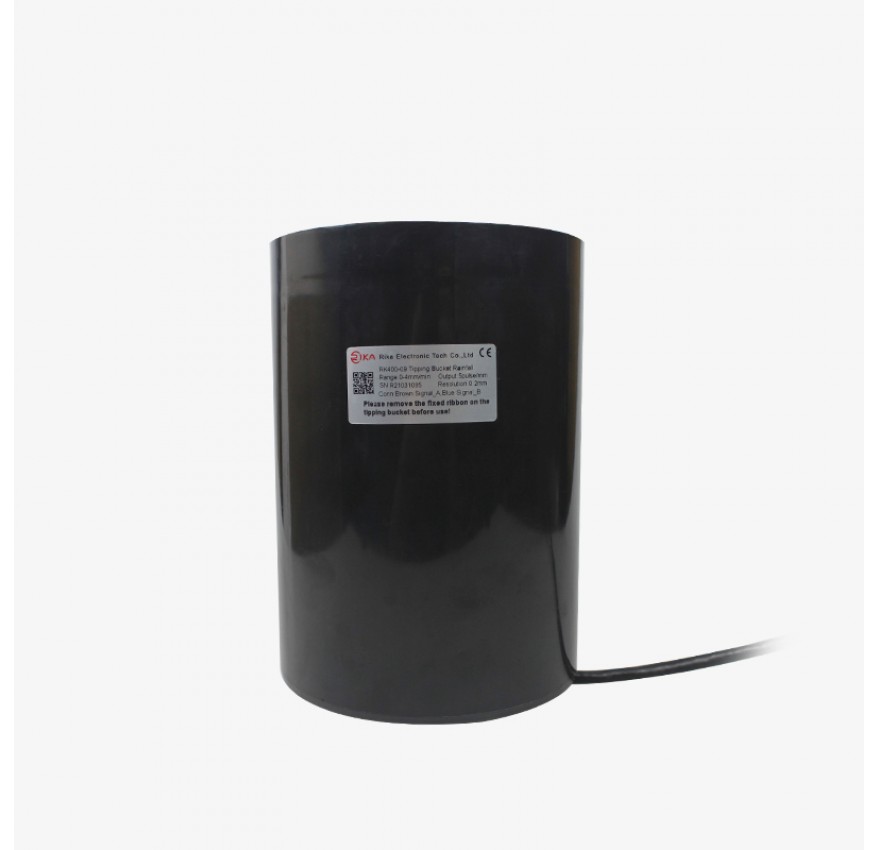

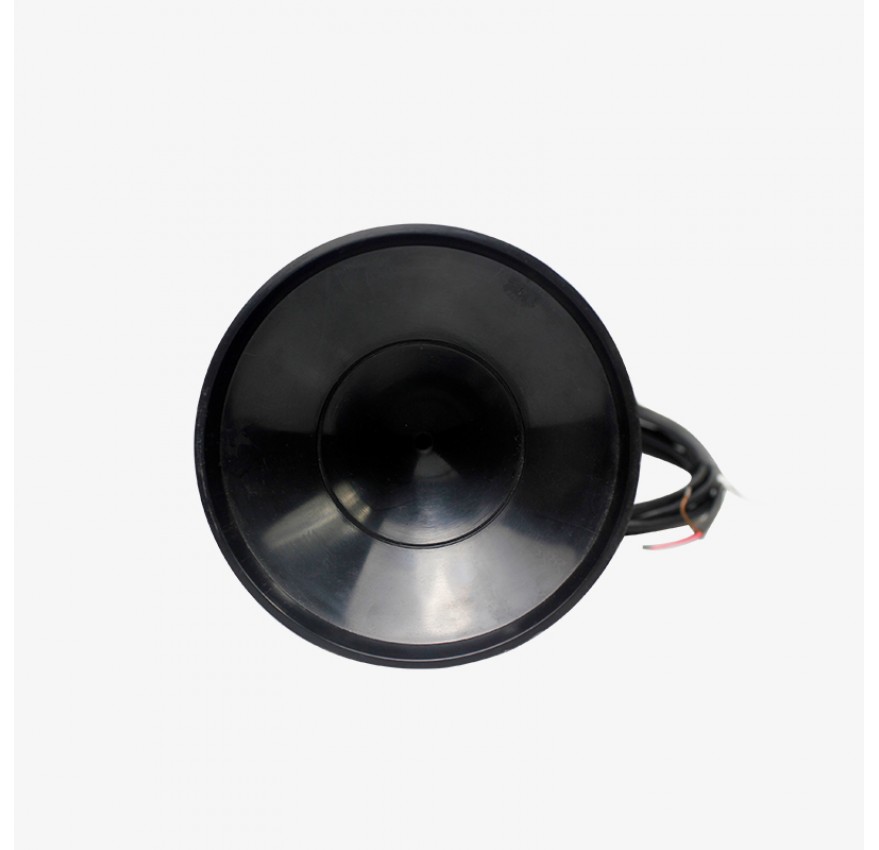

RK400-09 Miniature Tipping Bucket Rainfall Sensor

Hubungi Kami




Description

RK400-09 miniature tipping bucket rainfall sensor is a hydrology, meteorological instrument used to measure the nature of rainfall, and it converts the precipitation into a pulse signal output. The model can be used in meteorology, hydrology, agriculture, forestry, field monitoring stations and other industries. Combined with rainfall recorder can be used to measure precipitation, precipitation intensity, precipitation time.


Feature

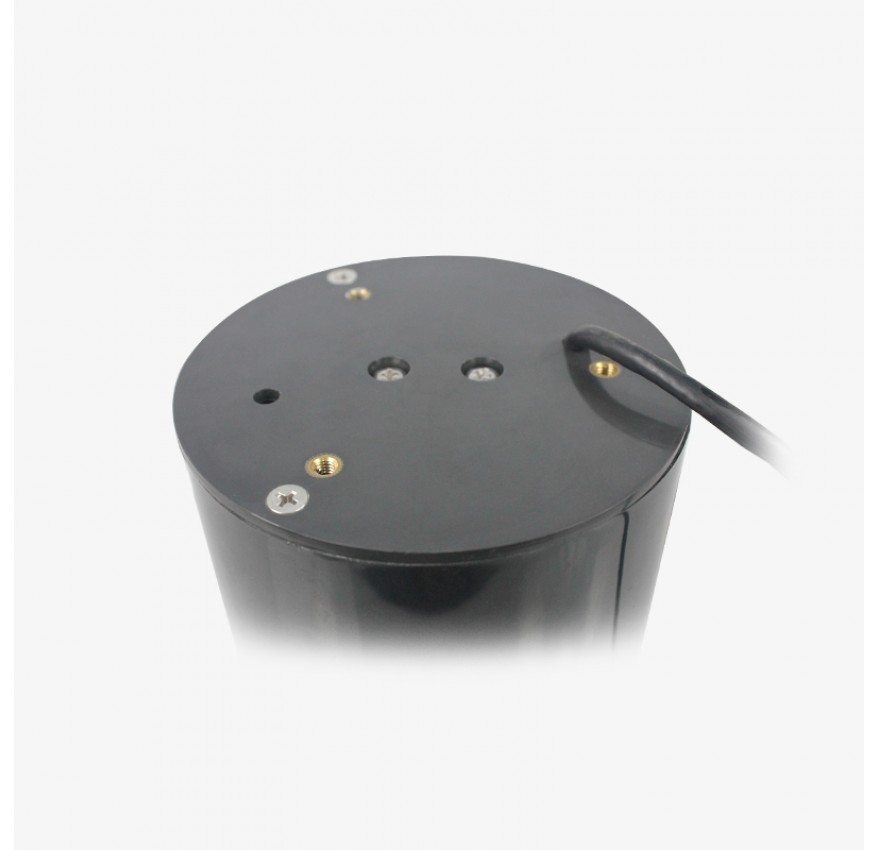

DIMENSION & MOUNTING



PRODUCTS DETAILS


Spesification

Item

Specification

Collector

Diameter :Φ114mm

Measured rainfall

Max: 4mm/min

Allow rainfall

Max: 8mm/min

Resolution

0.2mm(6.28mL)

Accuracy(2mm/min)

±4%

Output

Pulses,RS485(12-24VDC supply)

Operating temperature

0-60?@0%-100%RH

 Main material

ABS

Weight(unpacked)

450g
